Front Cradle Assembly

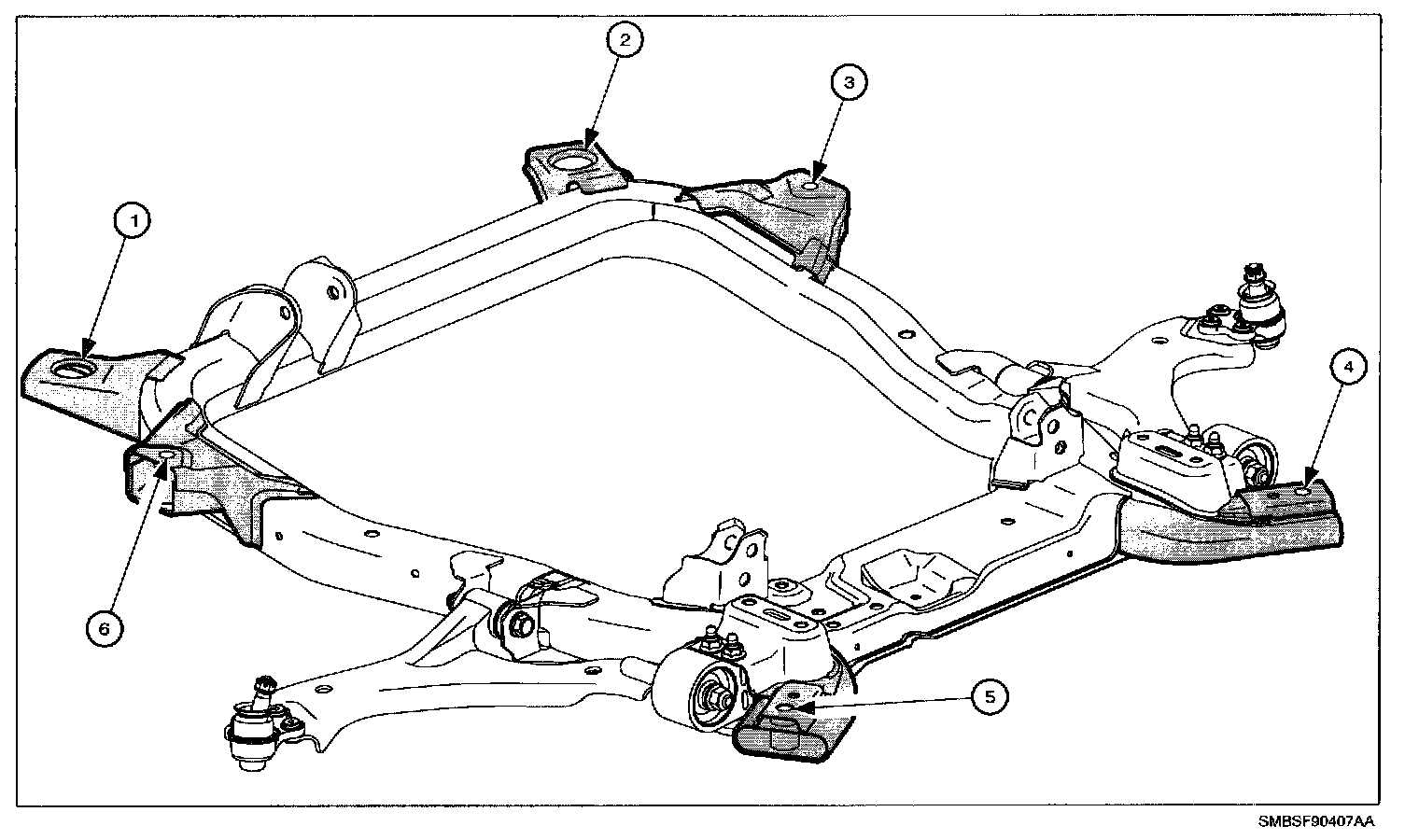

FRONT CRADLE ASSEMBLY






NOTE: Repair of cradle could result in damage to the vehicle, degrade the performance and/or safety of the vehicle after repair.







The engine cradle assembly is non-repairable. Any damage to the cradle will make it necessary to replace it with a new Saturn service replacement part.
