VUE L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Electronic Brake Control Module

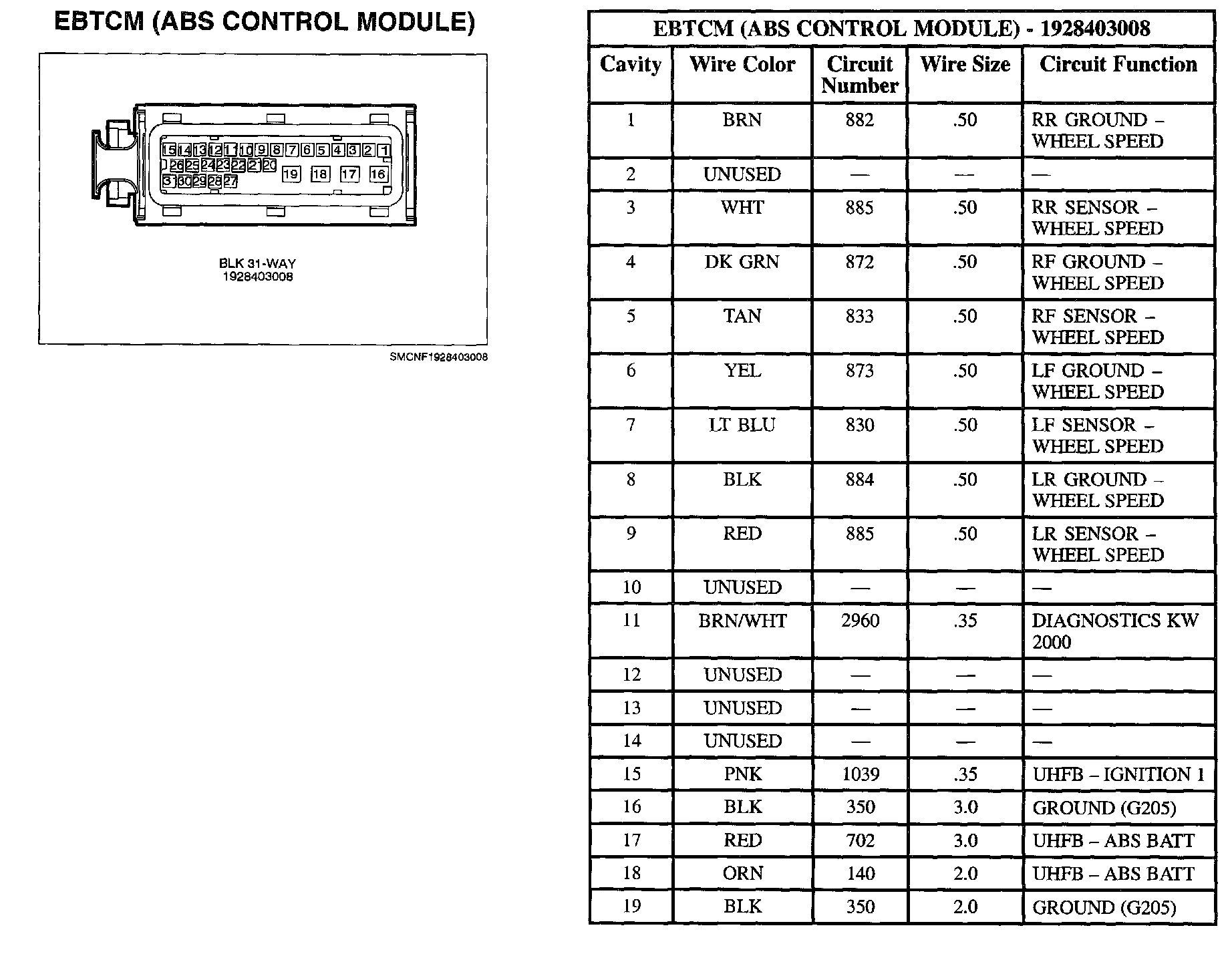

EBTCM (ABS Control Module) Part 1:

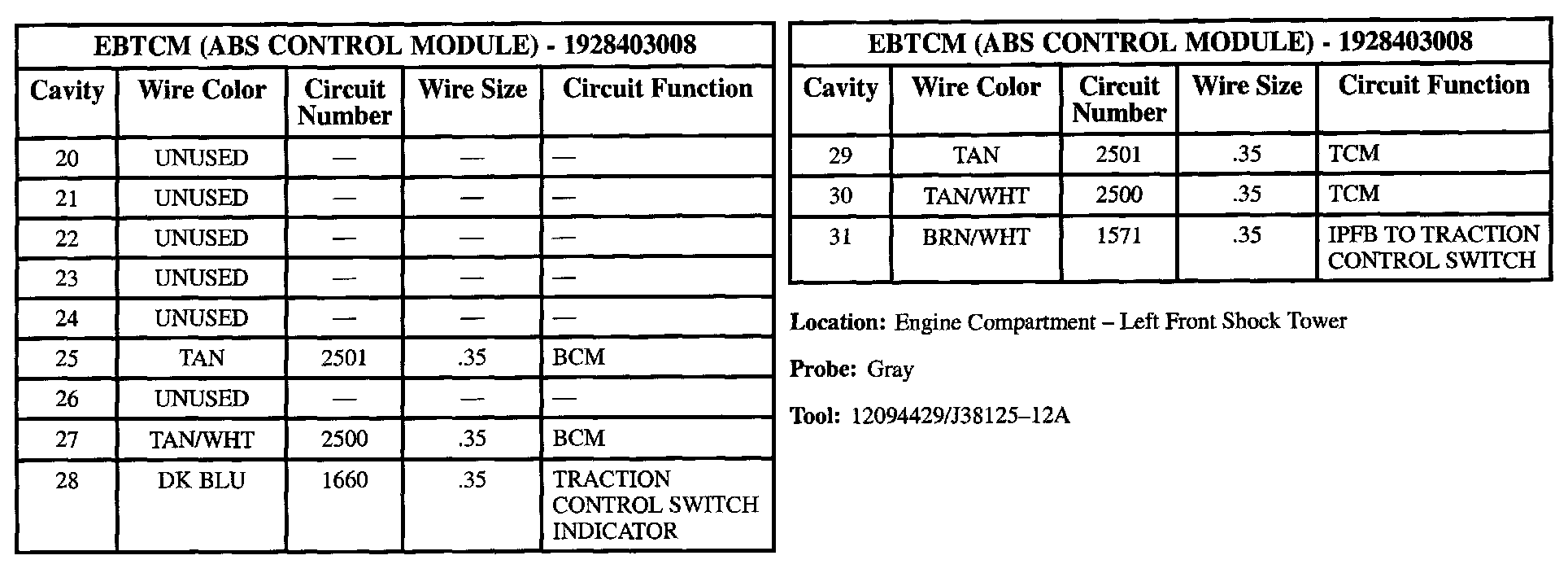

EBTCM (ABS Control Module) Part 2:
