Power Window Motor

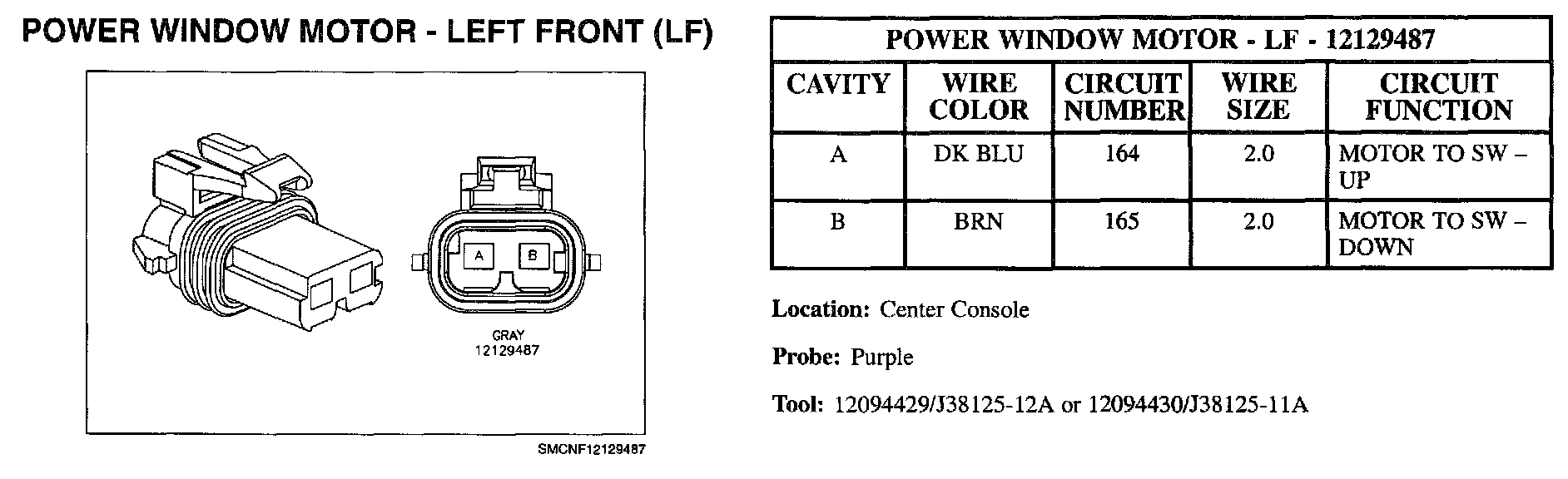

Power Window Motor - Left Front (LF):

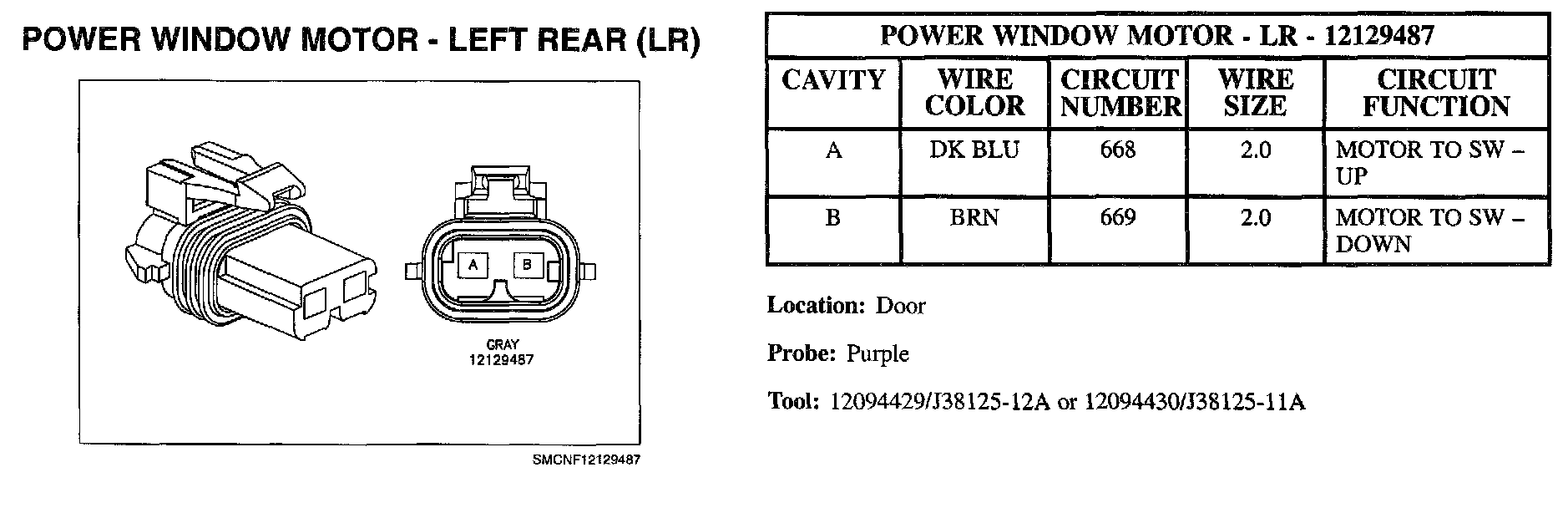

Power Window Motor - Left Rear (LR):

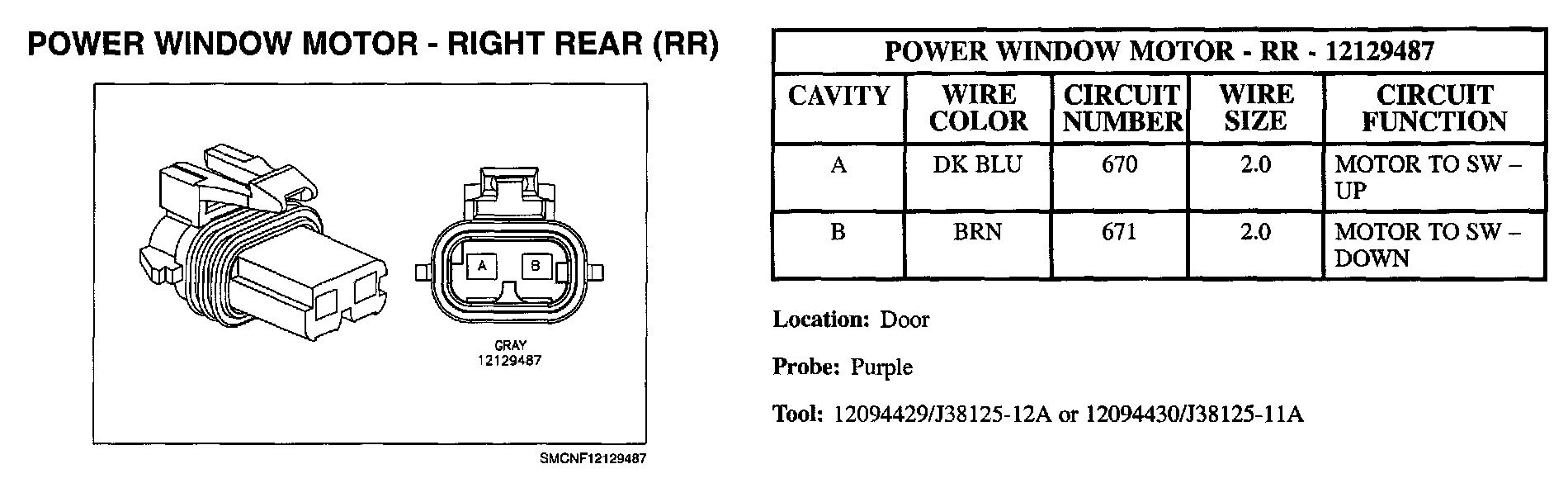

Power Window Motor - Right Rear (RR):

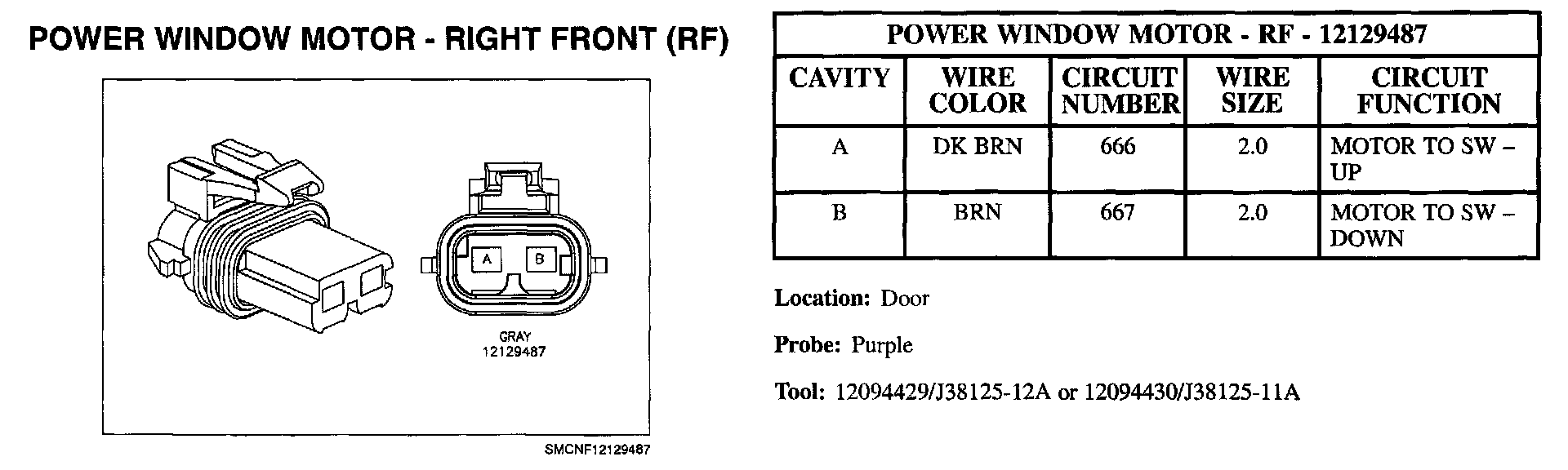

Power Window Motor - Right Front (RF):
