Control Assembly: Diagrams

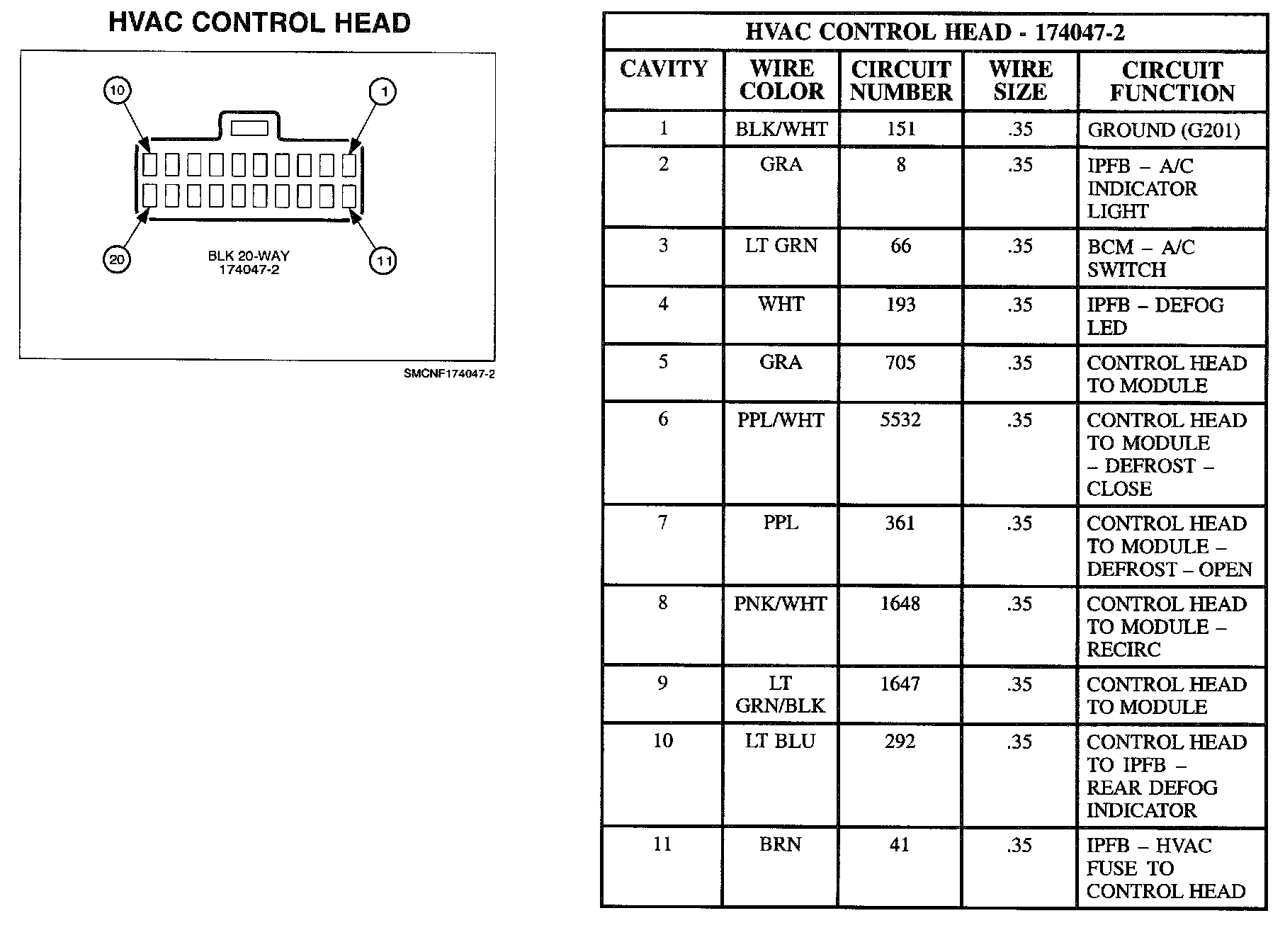

HVAC Control Head Part 1:

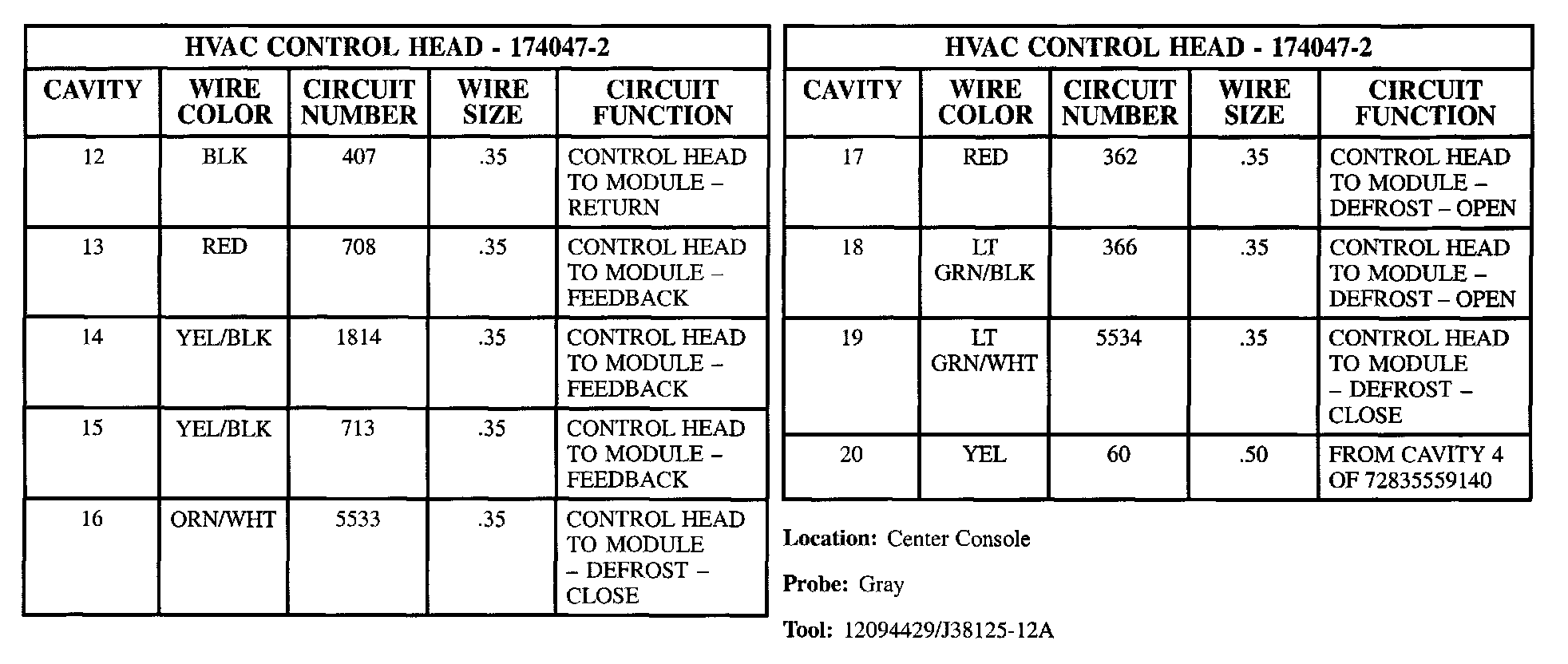

HVAC Control Head Part 2:

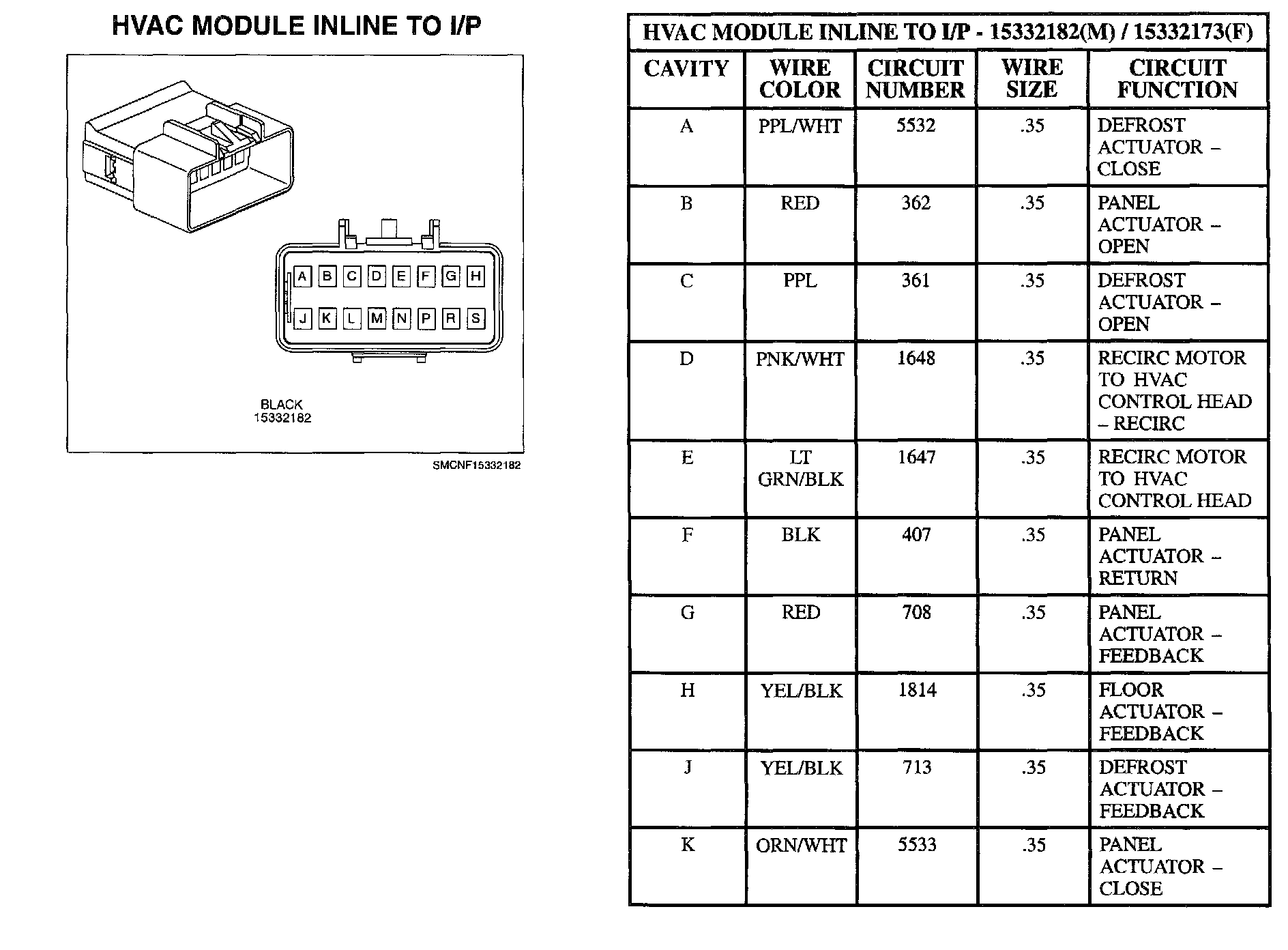

HVAC Module Inline To I/P Part 1:

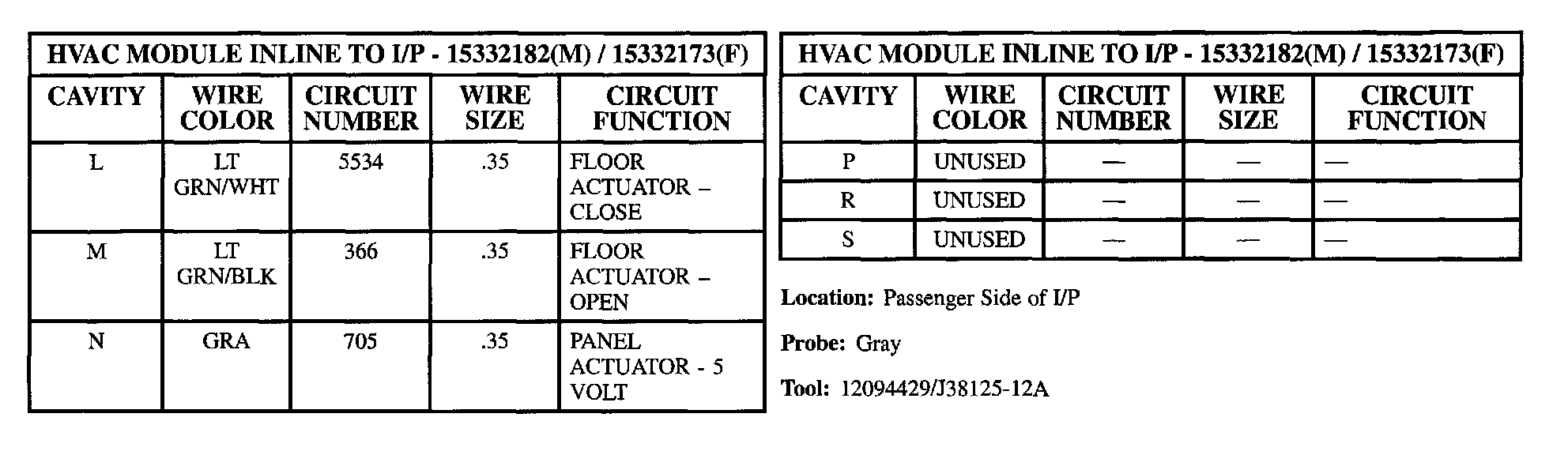

HVAC Module Inline To I/P Part 2:
