Refrigerant Temperature Sensor: Service and Repair

A/C REFRIGERANT TEMPERATURE SENSOR

REMOVAL

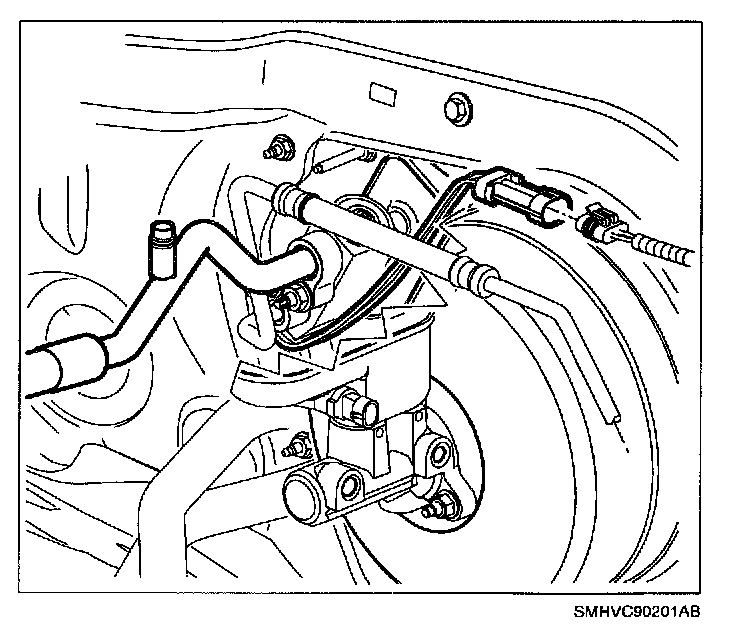

1. Disconnect thermal expansion valve (TXV) thermistor from engine harness.




2. Remove thermistor from TXV.

INSTALLATION

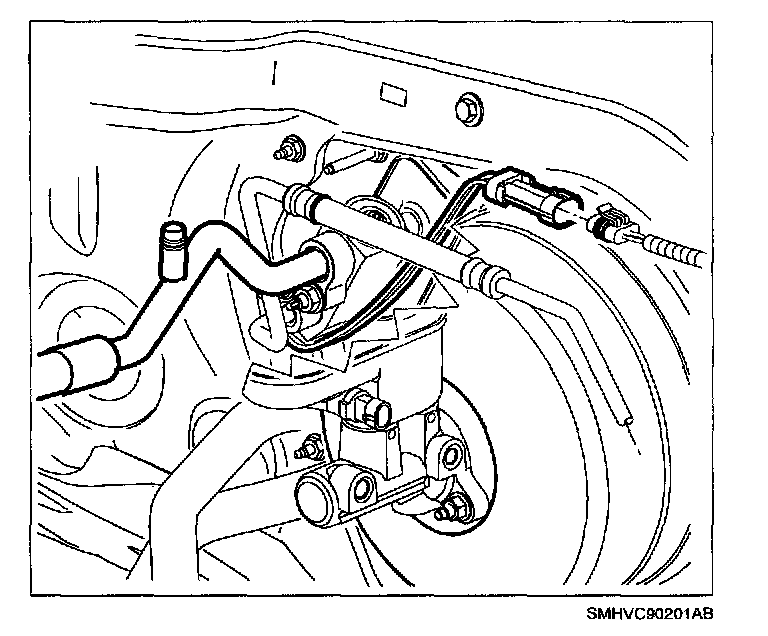

1. Fill thermistor housing in TXV with thermal grease included in the kit.
2. Install thermistor and wipe away excess grease.

Torque:
Thermistor Bolt: 5 N.m (45 in.lbs.)




3. Connect thermistor to engine harness.
