Scan Tool Data Definitions - Powertrain Systems

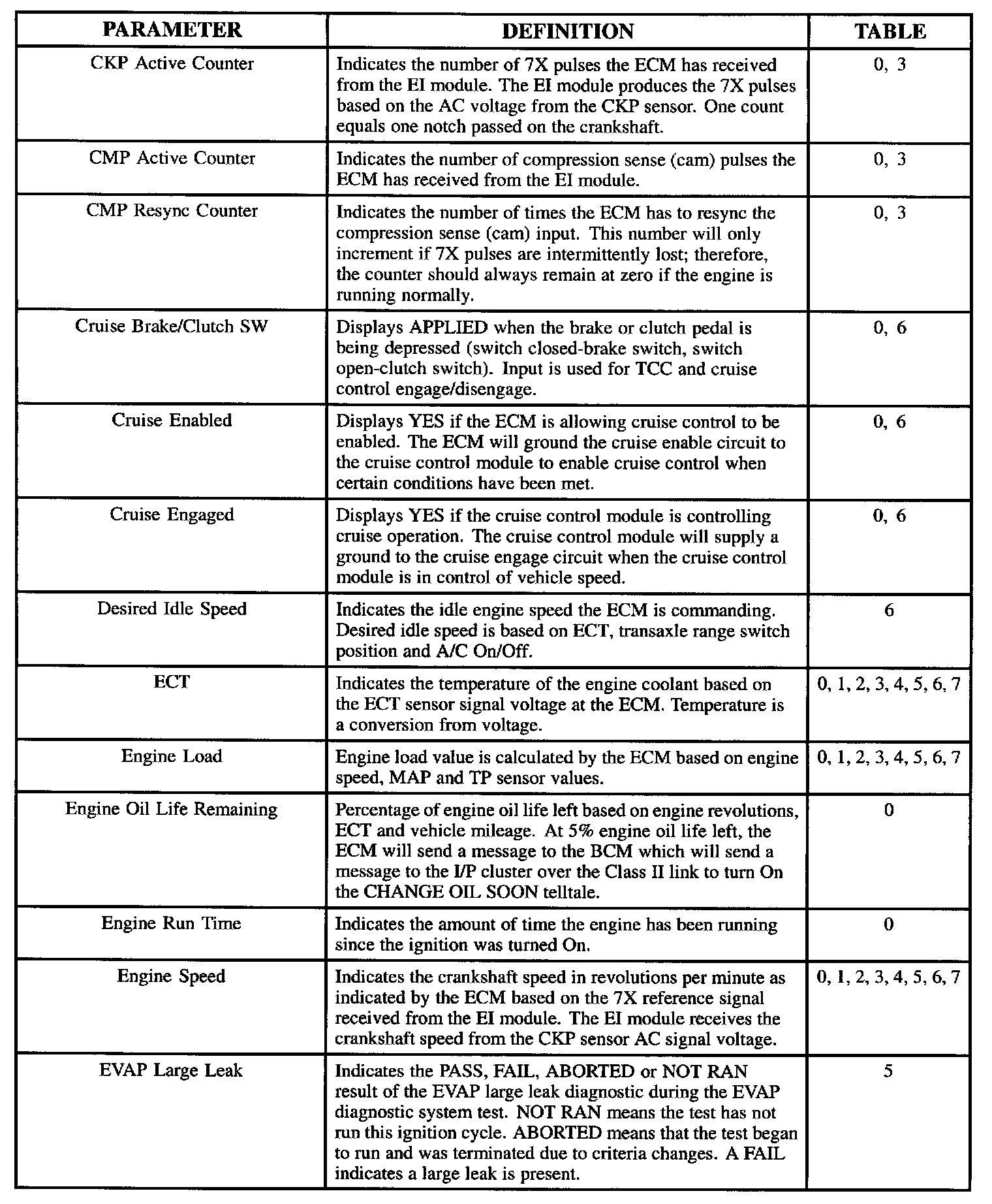

General Information Table Scan Tool Part 1:

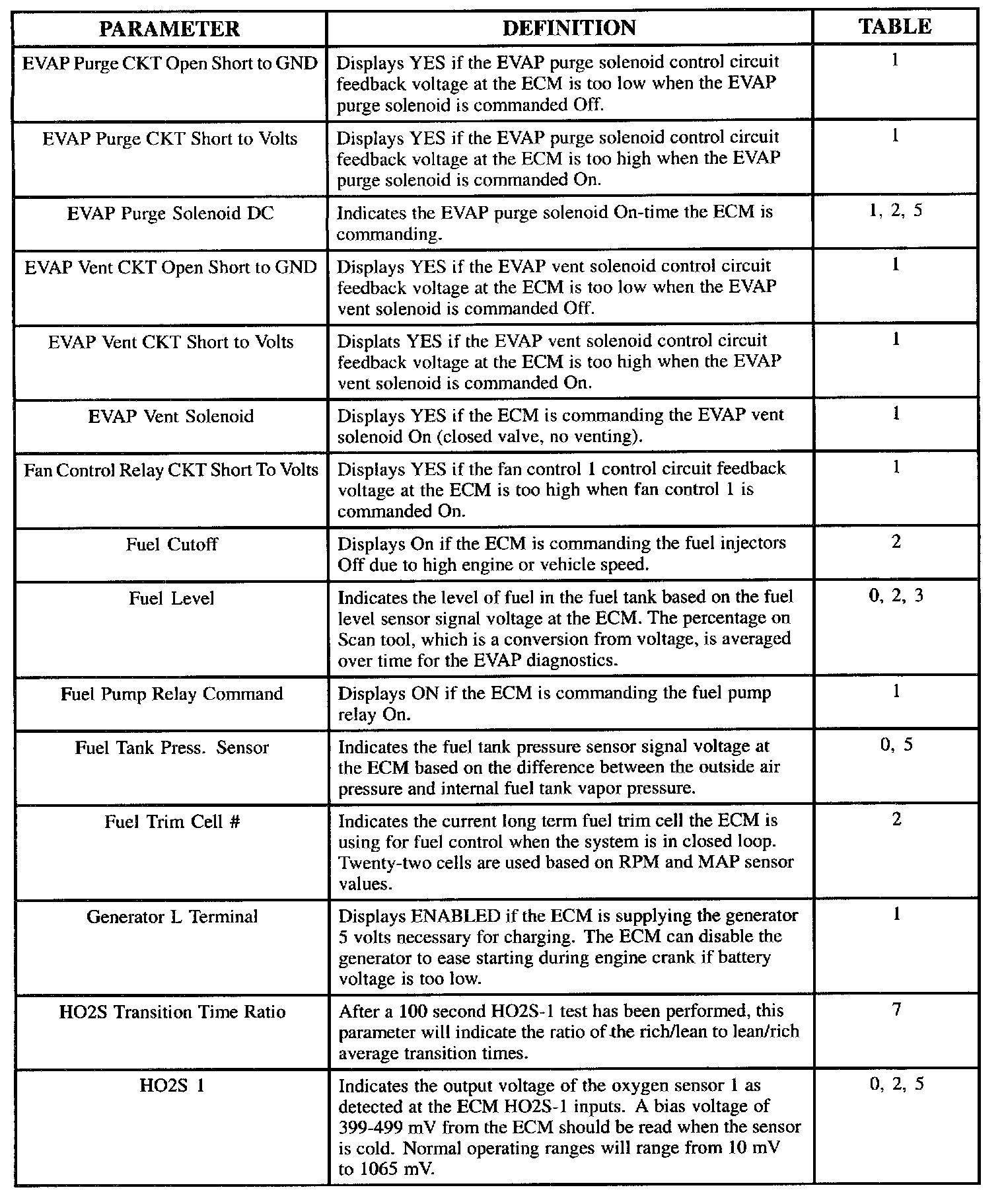

General Information Table Scan Tool Part 2:

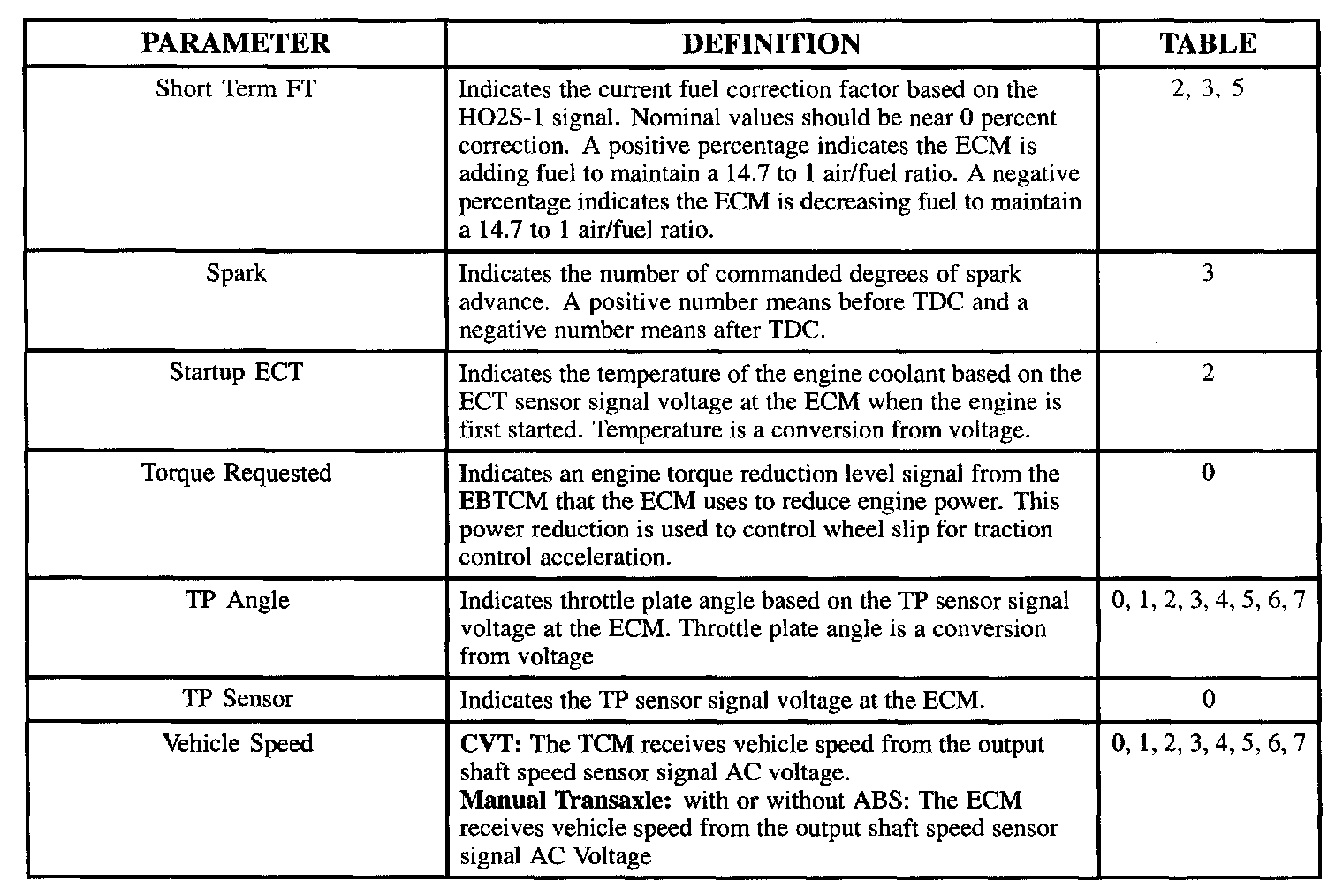

General Information Table Scan Tool Part 3:

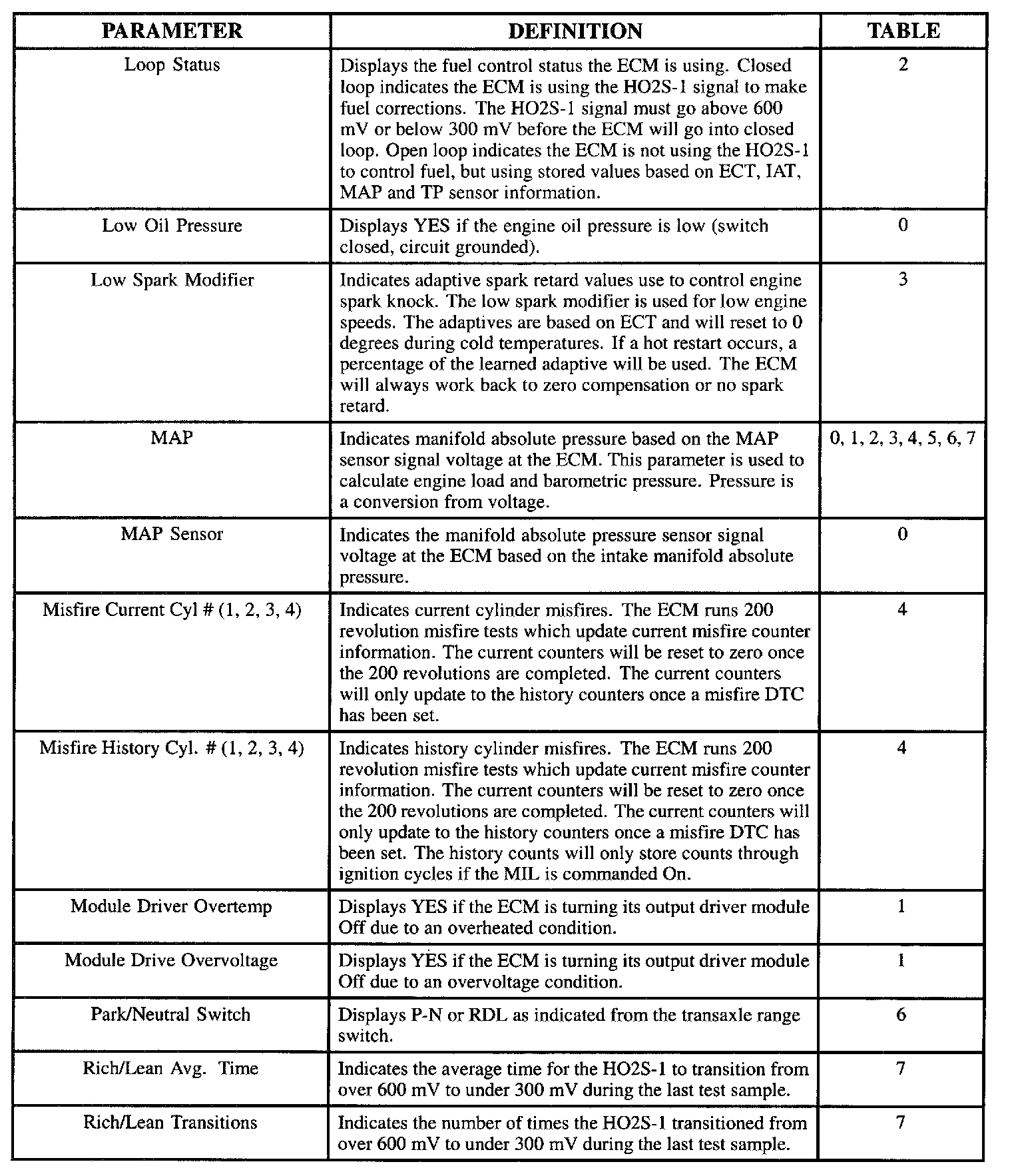

General Information Table Scan Tool Part 4:

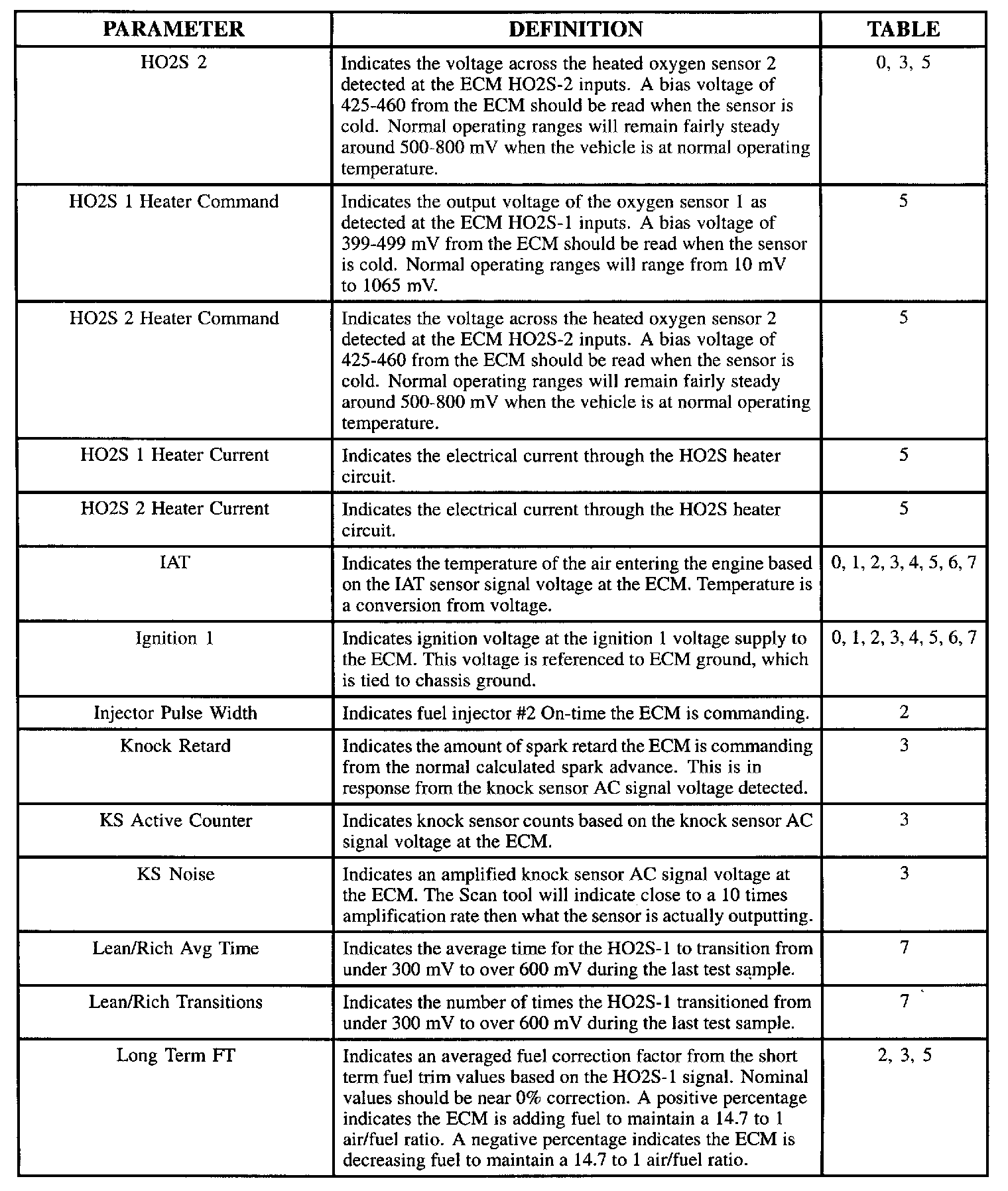

General Information Table Scan Tool Part 5:

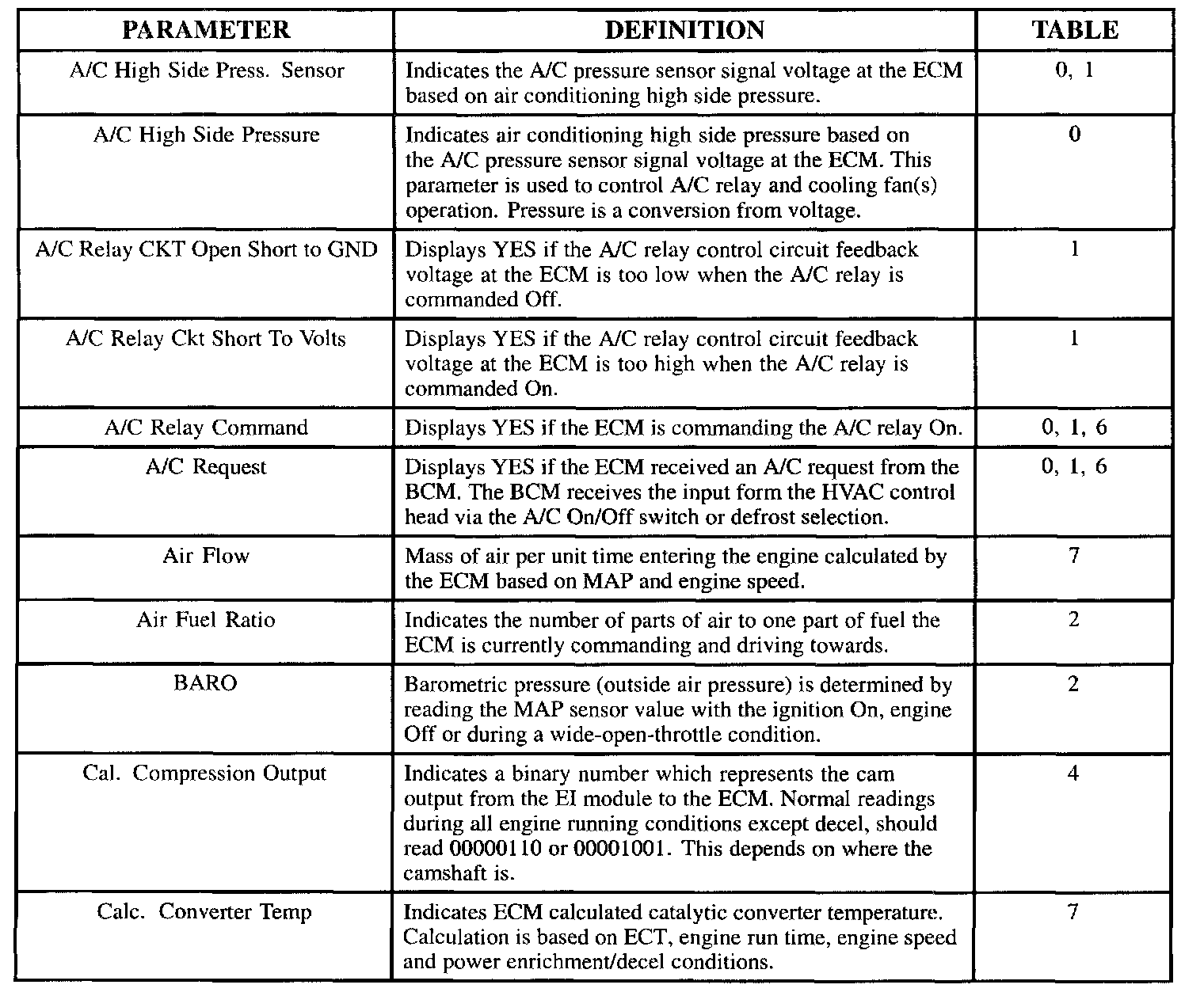

General Information Table Scan Tool Part 6:
