System Specifications

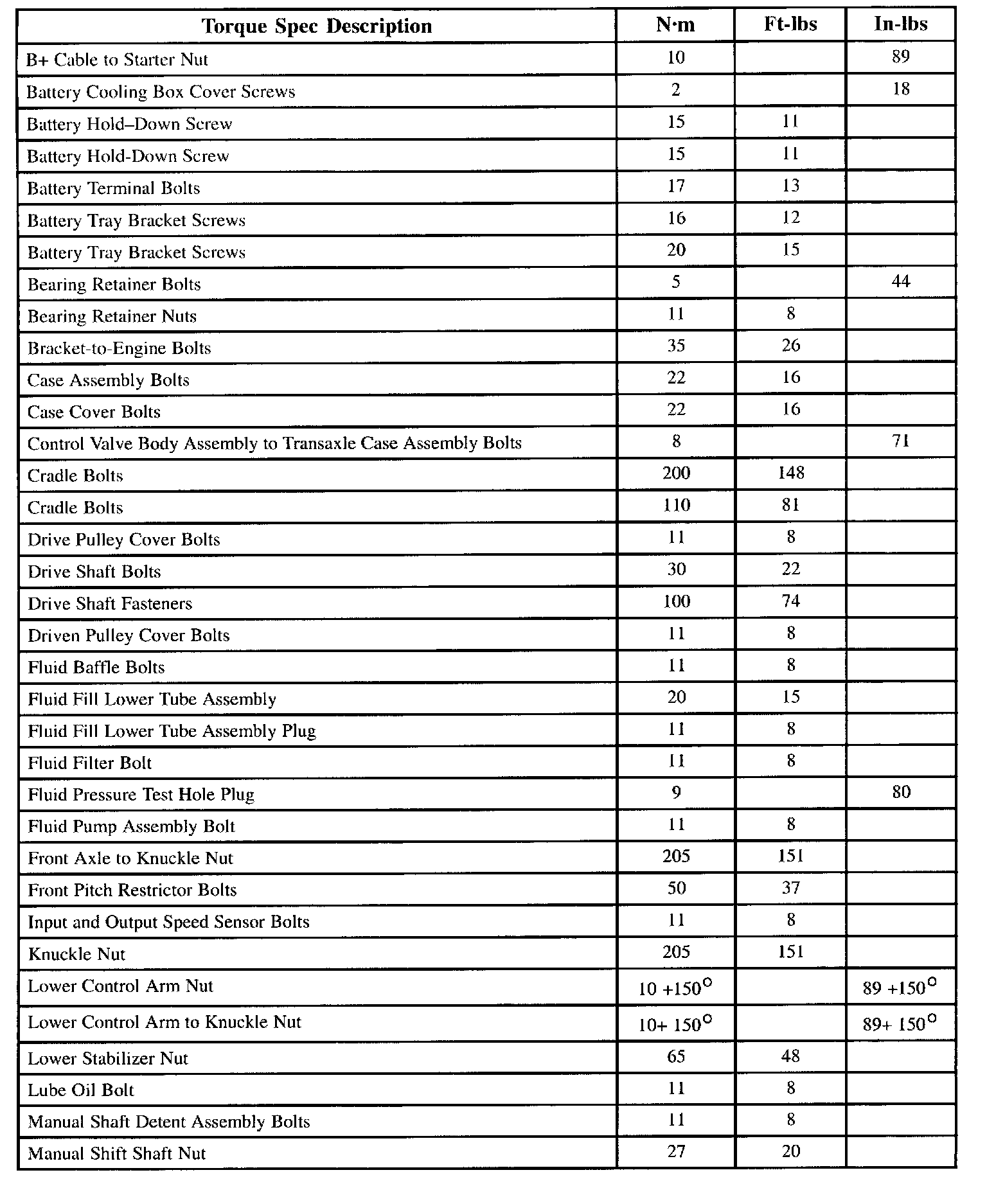

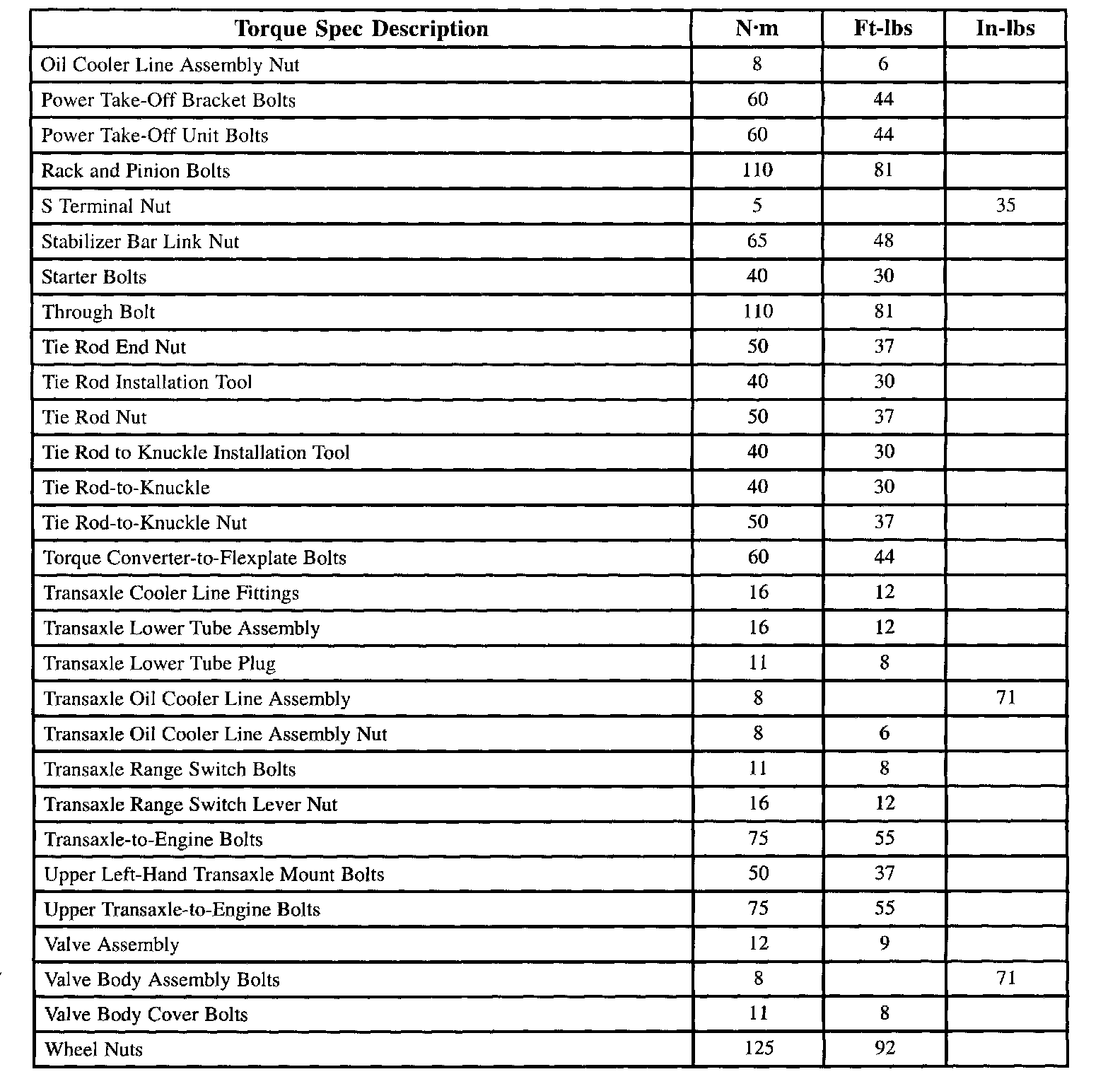

TRANSAXLE TORQUE CHARTS





GENERAL INFORMATION





SHIFTER

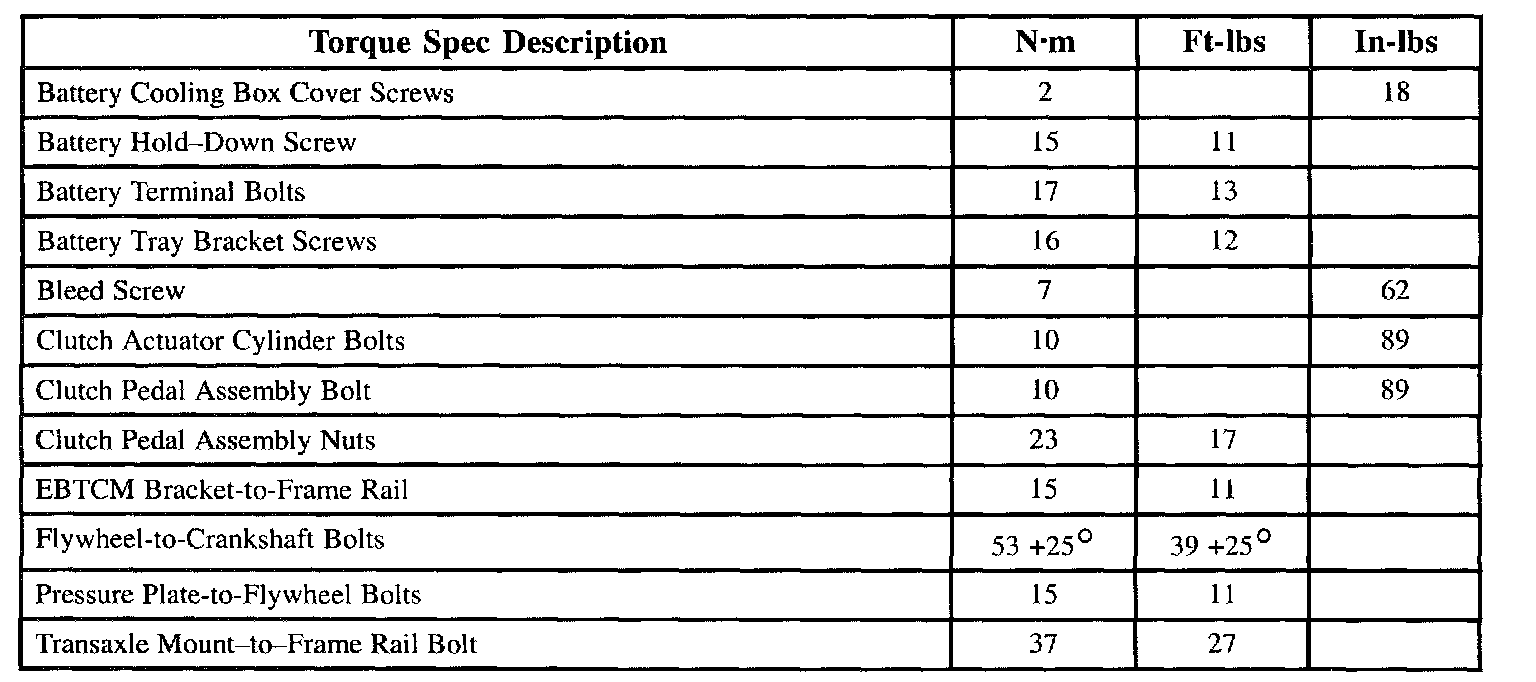

CLUTCH





Pressure Plate-to-Flywheel Bolts: 15 Nm (11 ft. lbs.)

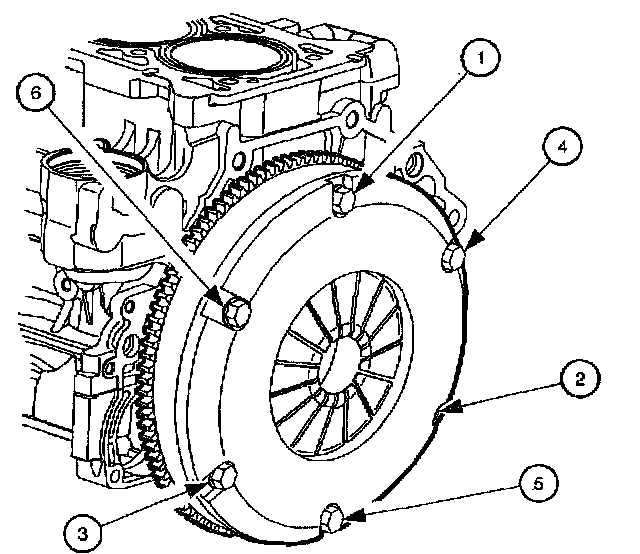

Pressure Plate Tightening Sequence

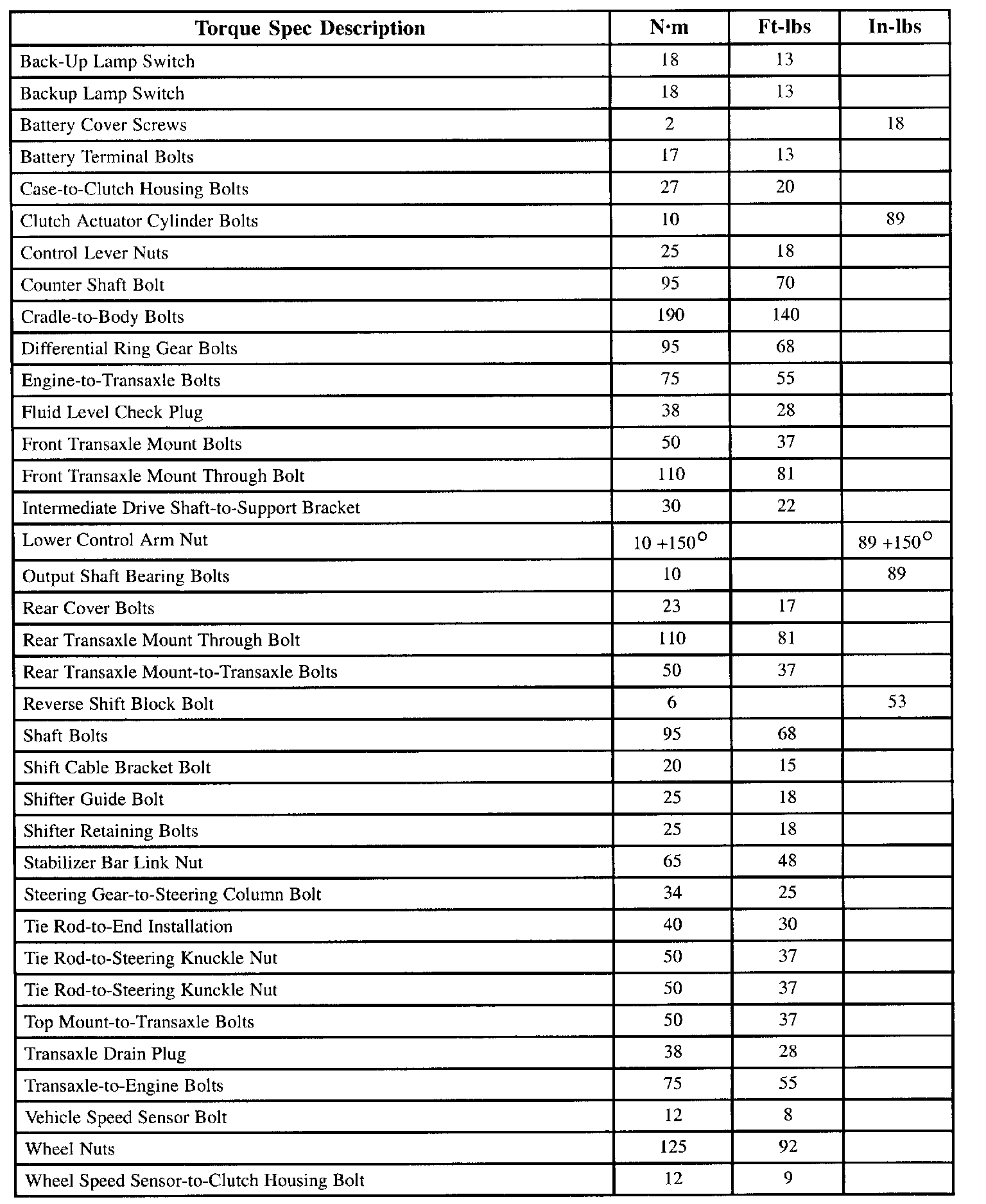

MANUAL TRANSAXLE








VT25-E (M16/M75)
