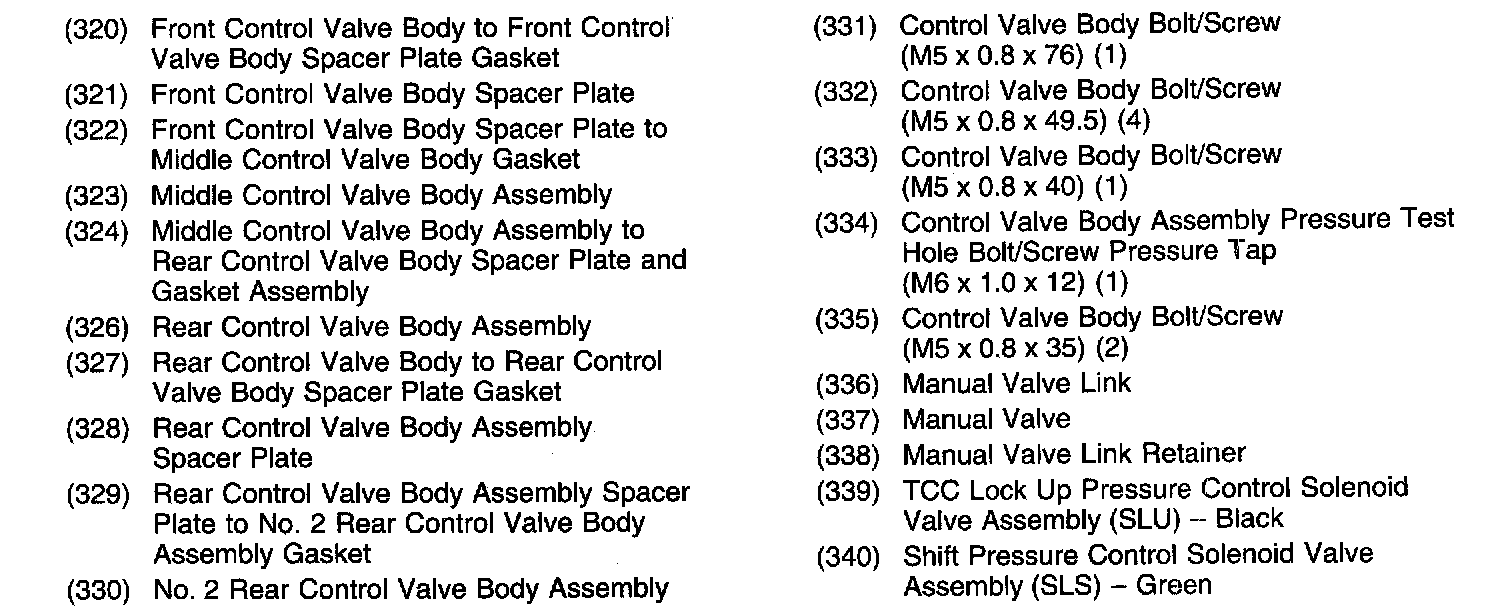

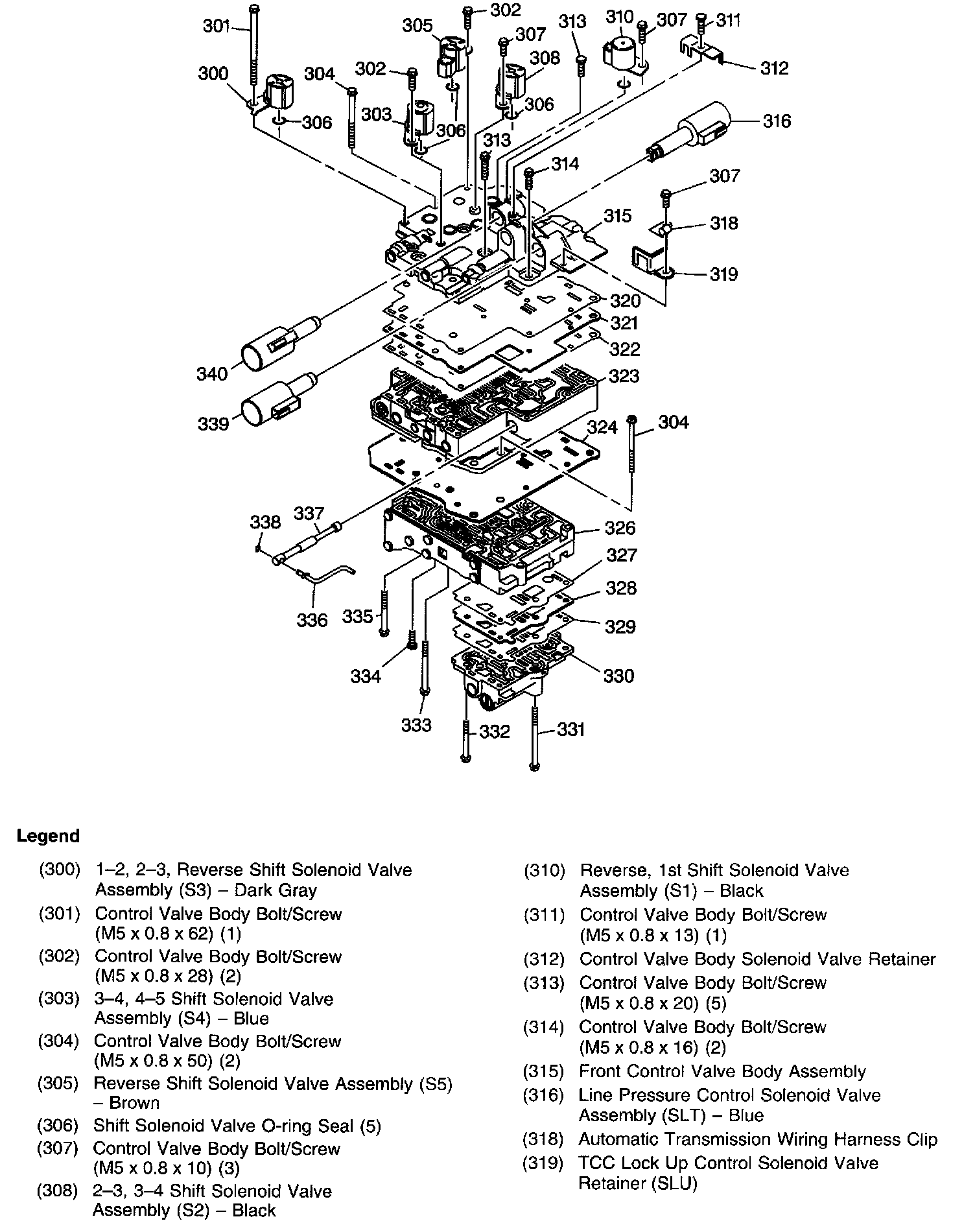

Control Valve Body Assembly

Control Valve Body Assembly








Control Valve Body Assembly

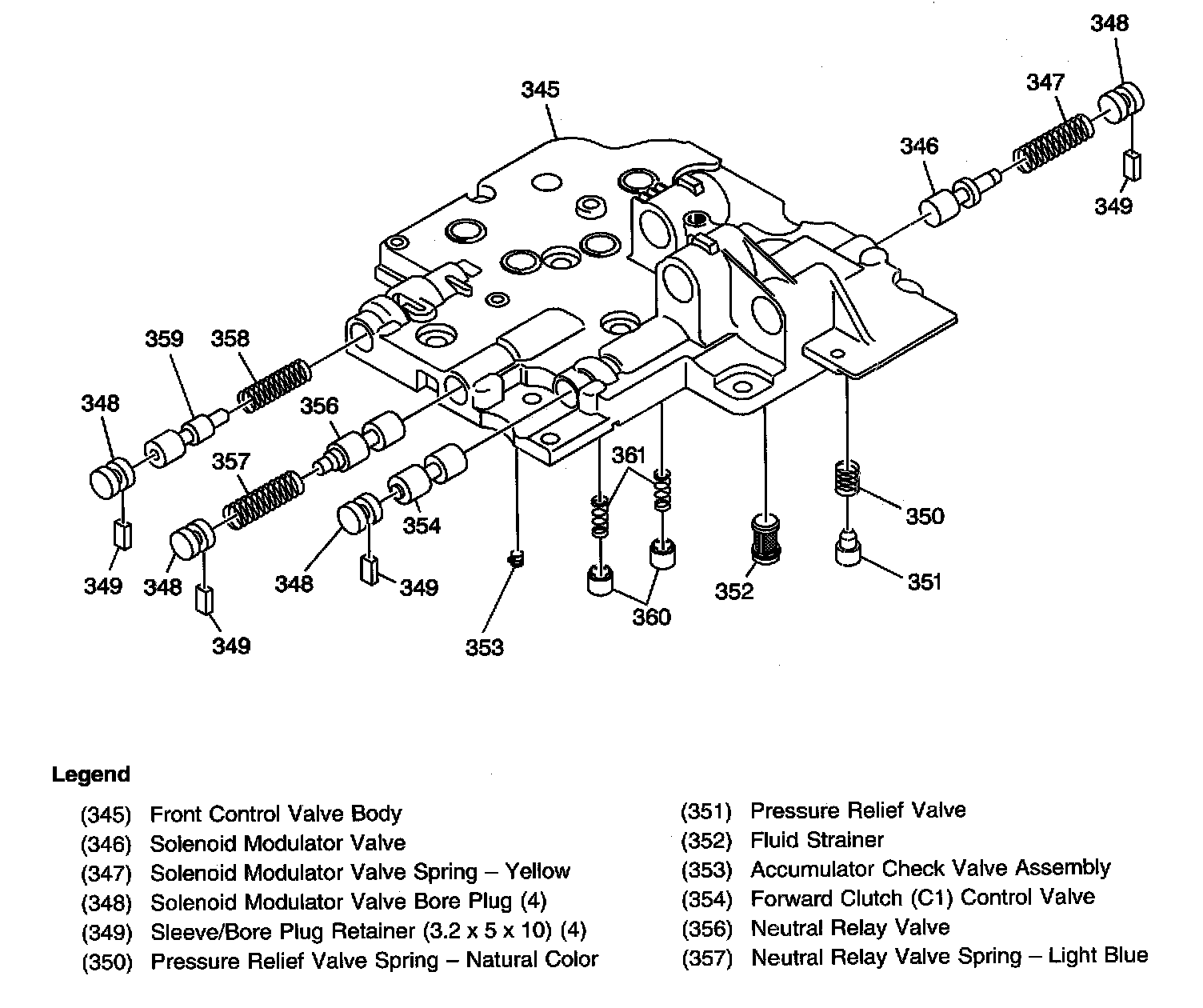

Front Control Valve Body Assembly

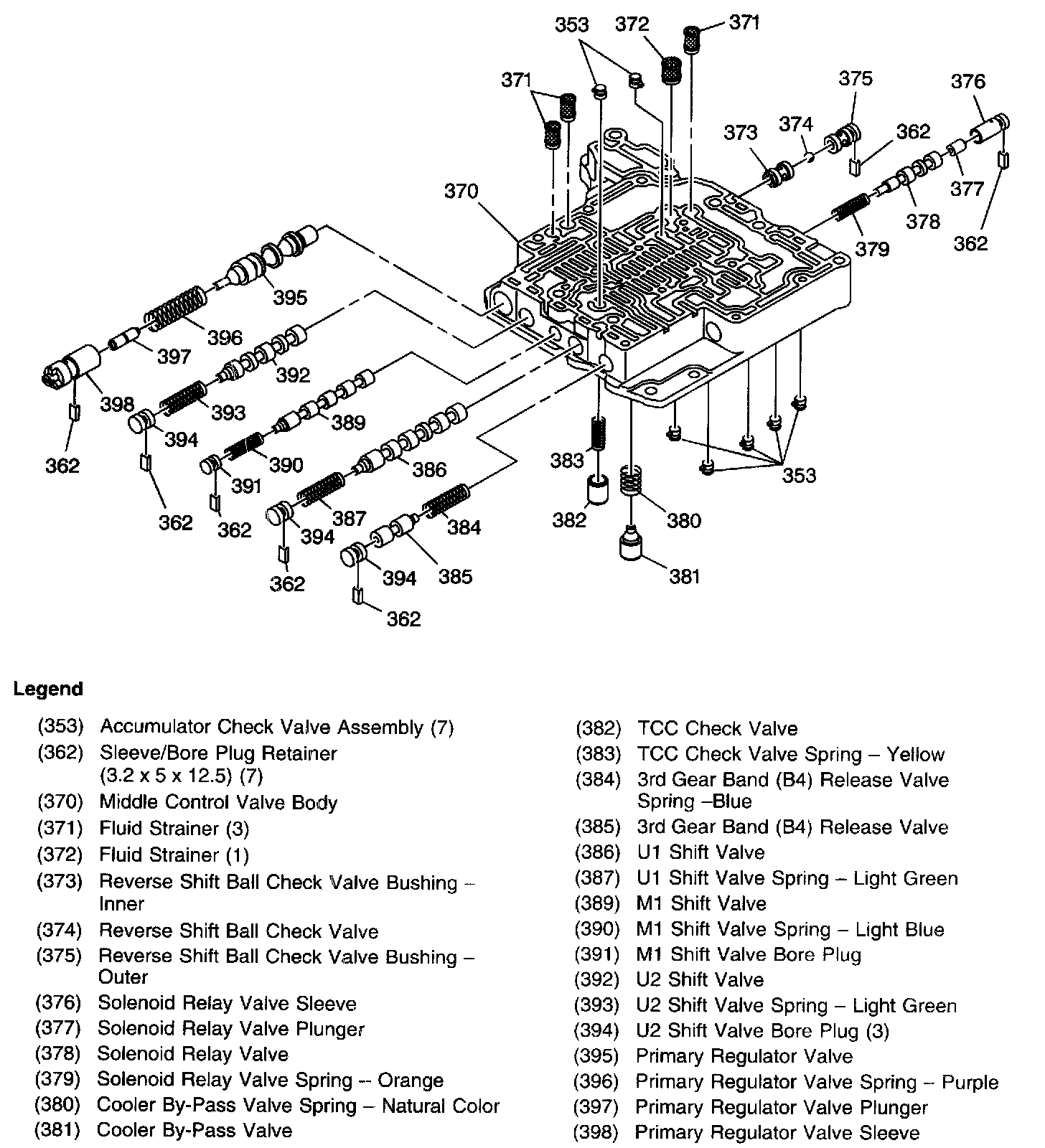

Middle Control Valve Body Assembly

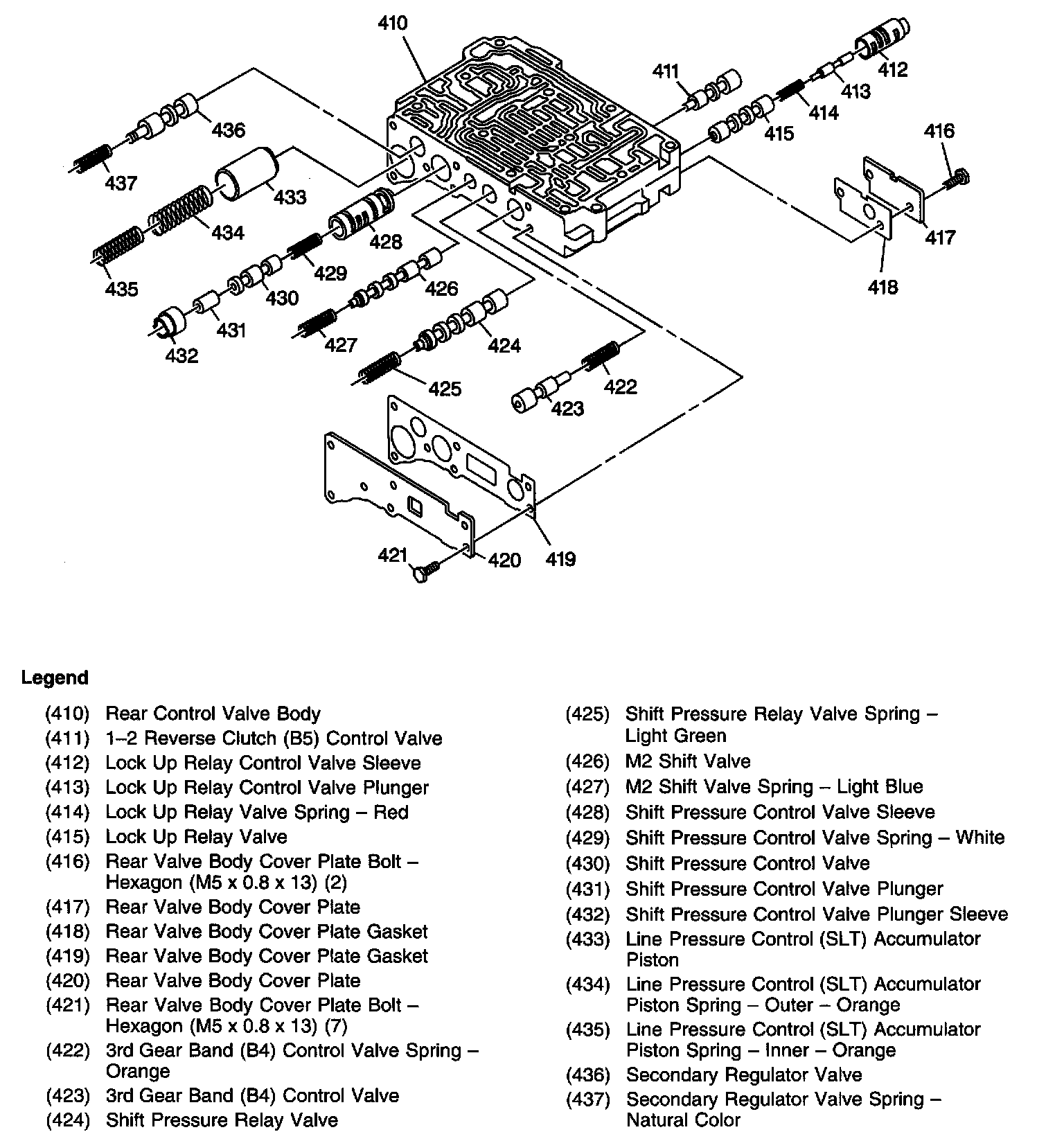

Rear Control Valve Body Assembly

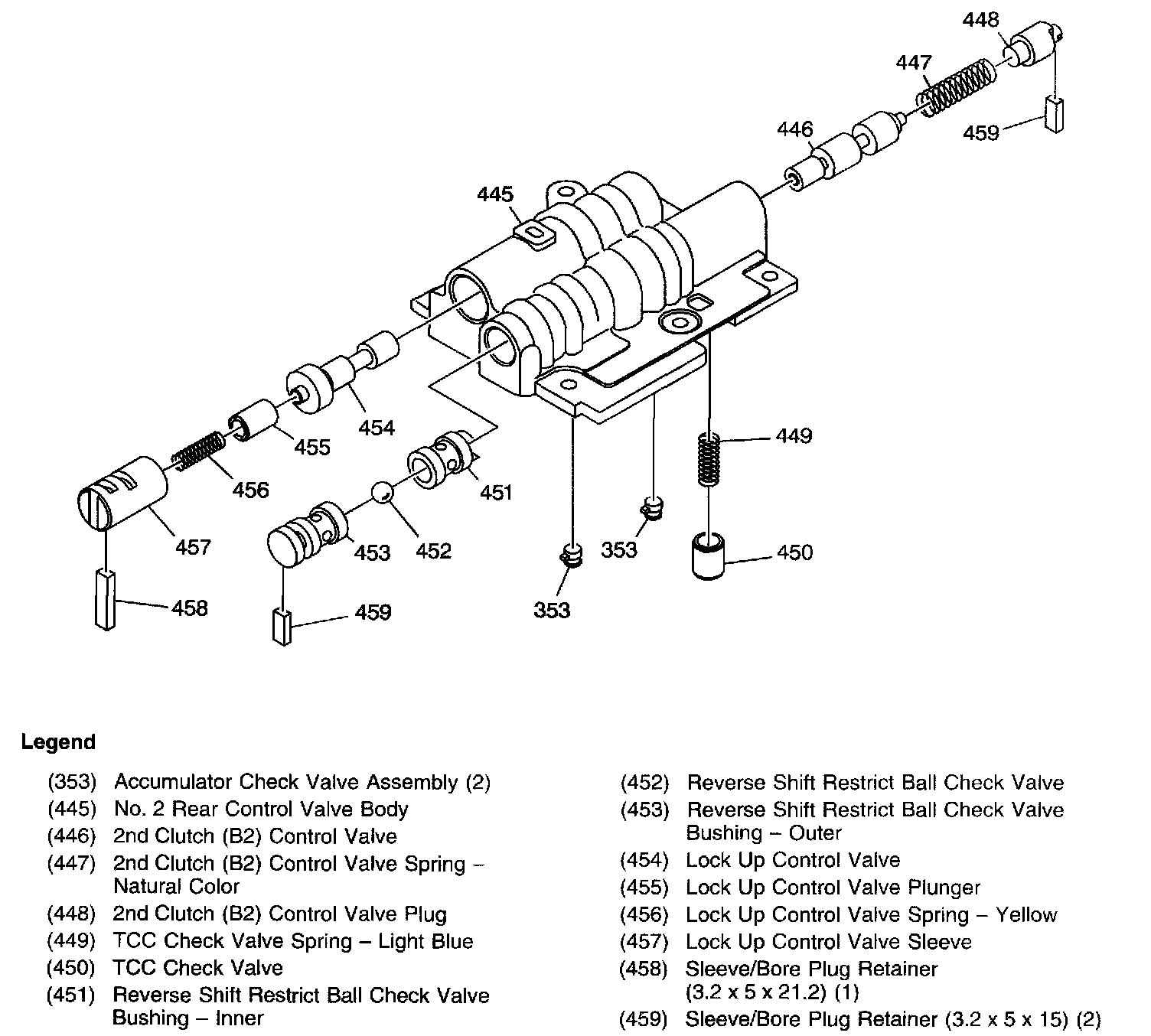

No. 2 Rear Control Valve Body Assembly
