Continuously Variable Transmission/Transaxle: Locations

VT25-E CVT Transmission Component Locations

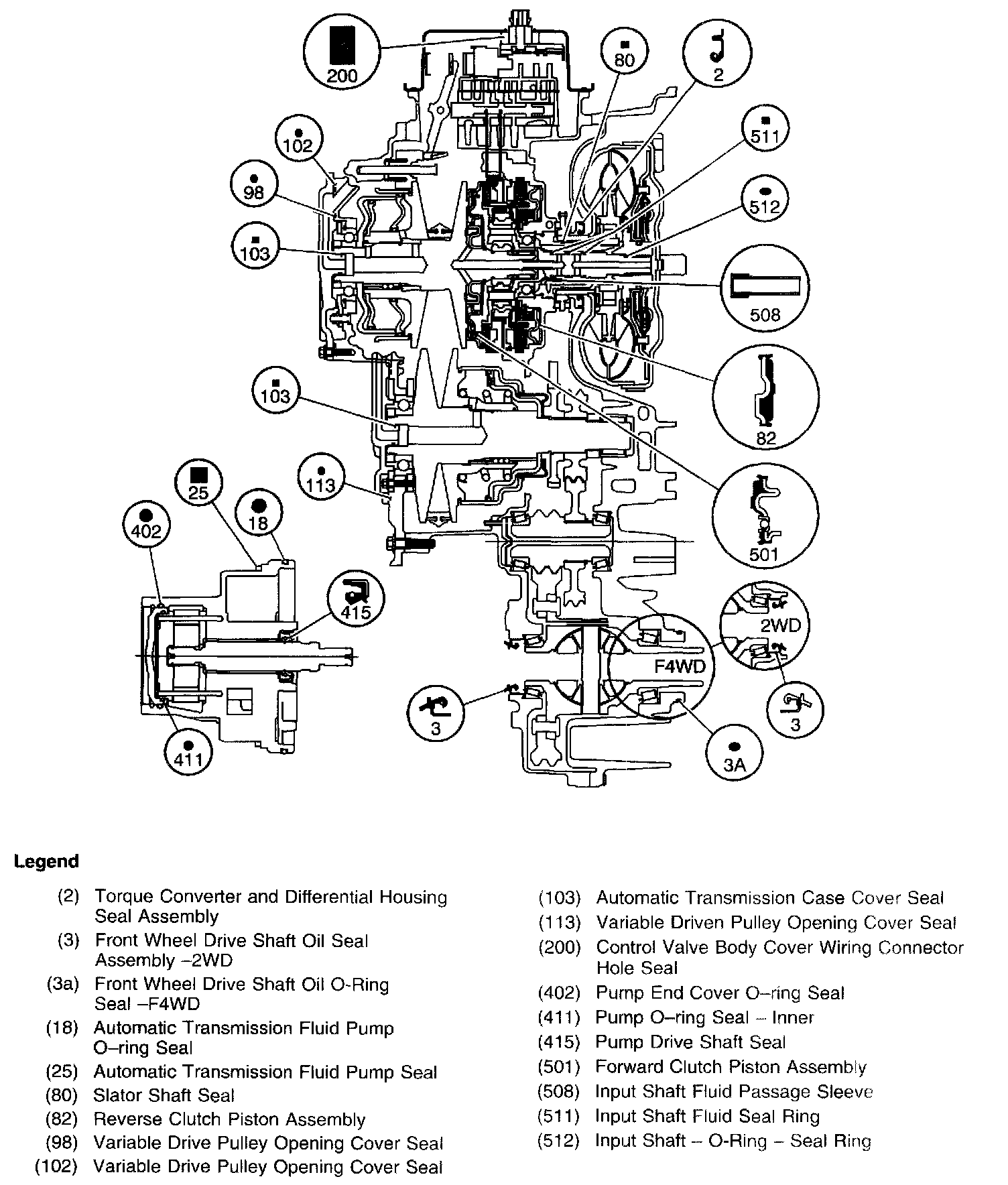

Seal Locations

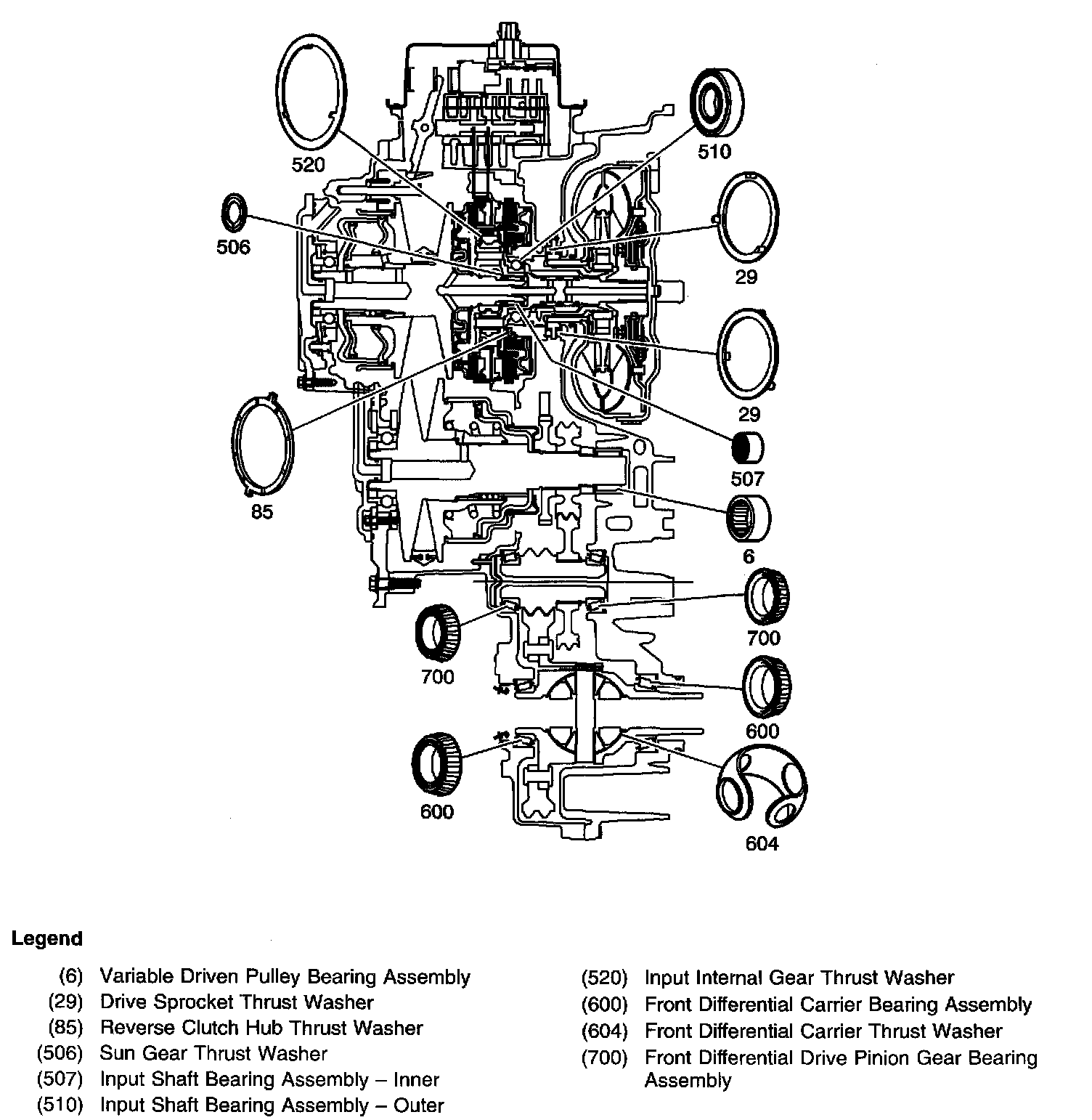

Bearing Locations

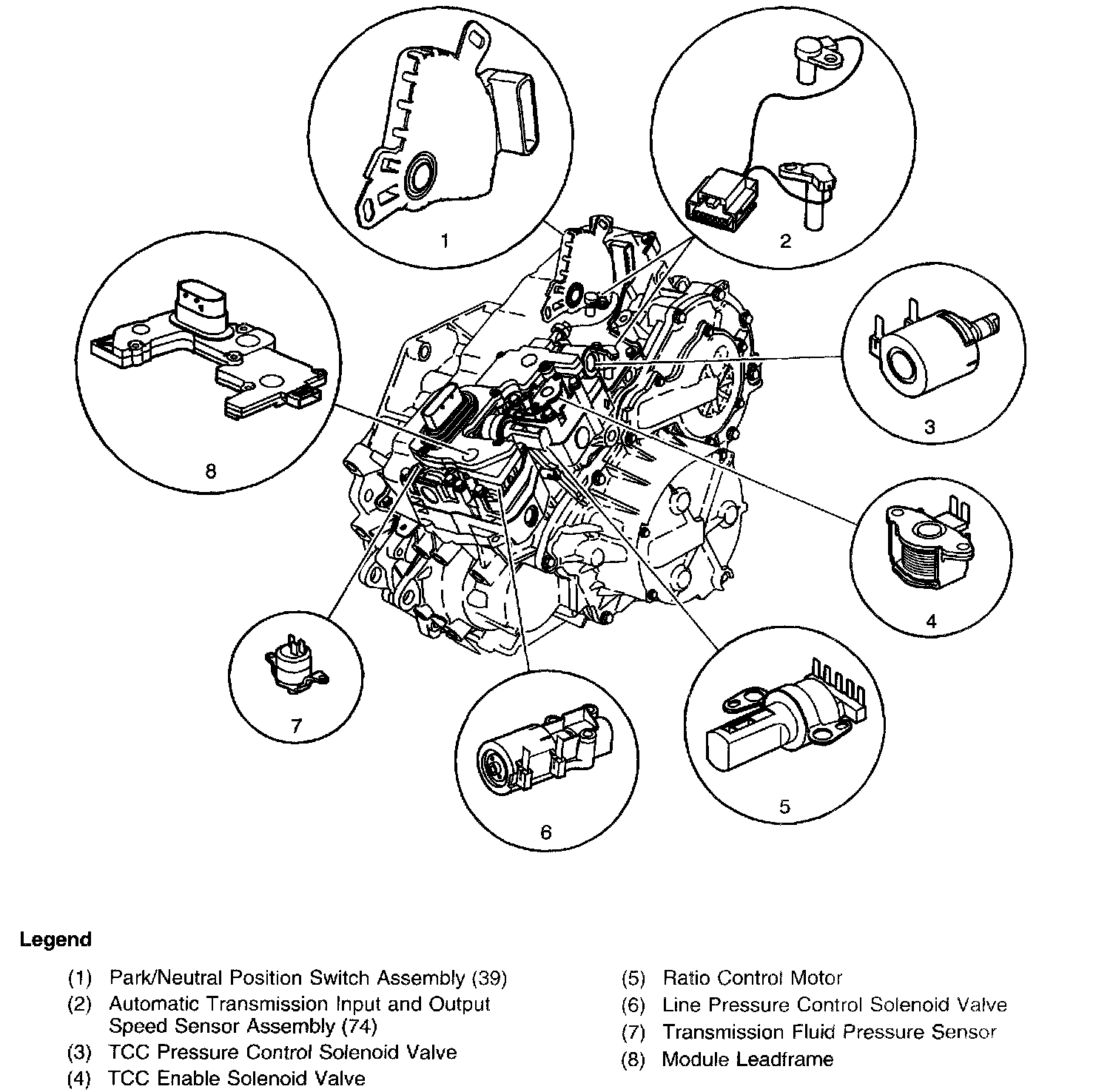

Electronic Component Locations
