DTC B3132: Notes

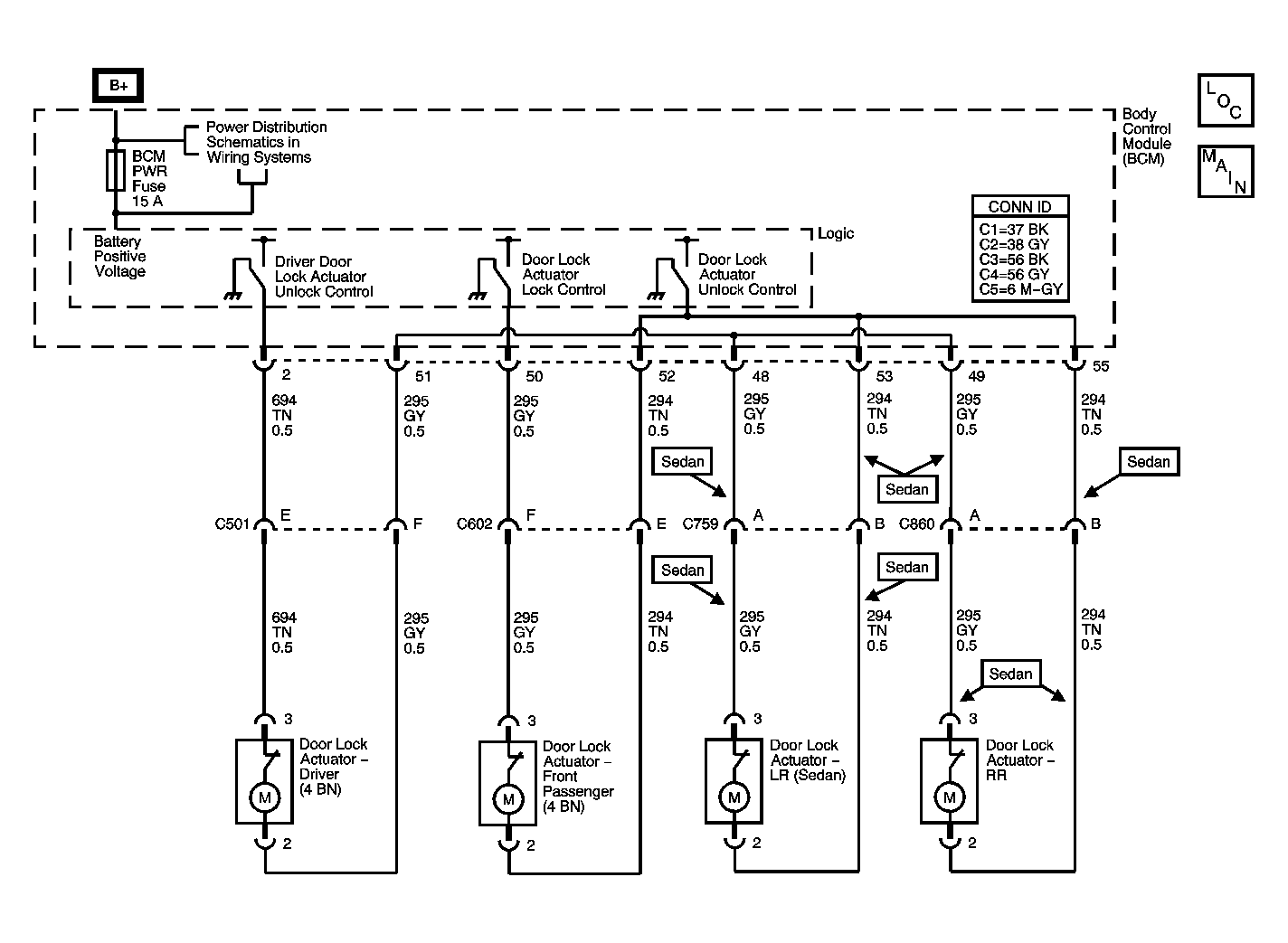

Fig 1: BCM Circuit
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
