Installation Procedure

  1. Connect the electrical connector to the ambient air temperature sensor.
  2. Push the ambient air temperature sensor through the hole in the headlamp bracket until the sensor is seated.

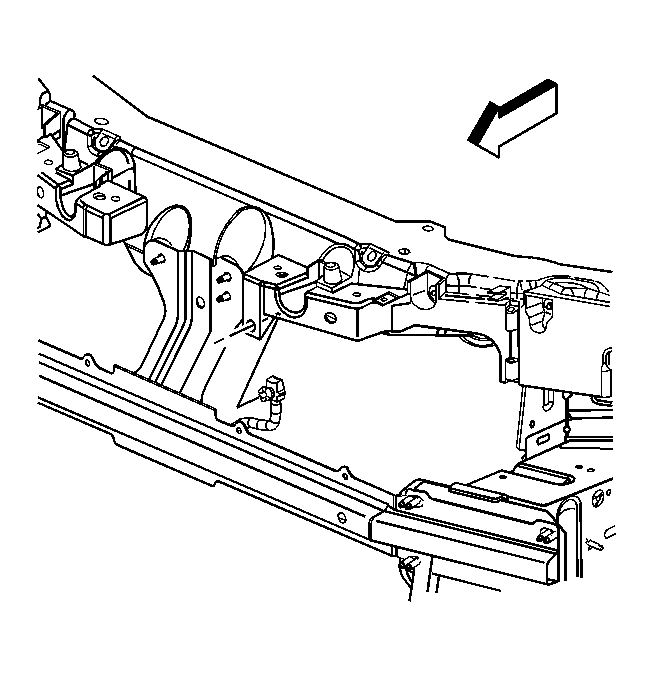

    3. Fig 1: View Of Ambient Air Temperature Sensor (Coupe)
    GM881691Courtesy of GENERAL MOTORS CORP.
  3. Close the hood.
