Removal Procedure

  1. Disconnect the boost control solenoid connector.
  2. Remove the boost control solenoid retaining bolt.
  3. Remove the boost control solenoid (2).

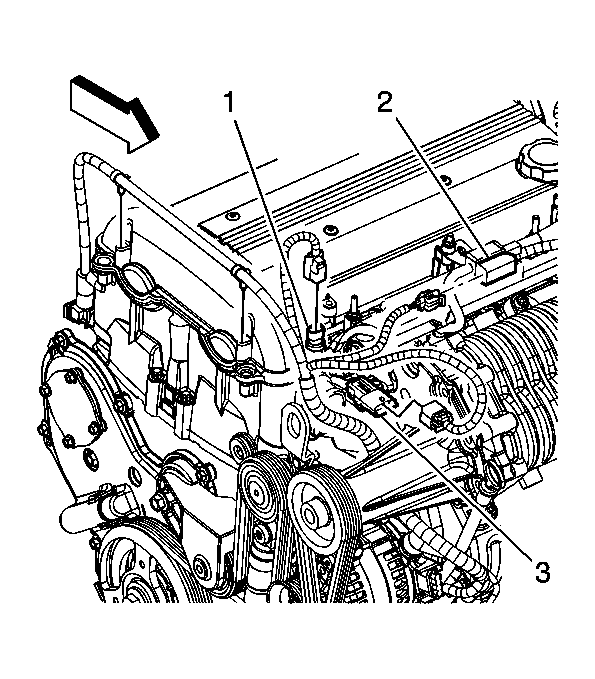

    4. Fig 1: Locating ECT Sensor, Boost Control Solenoid, & IAT Sensor
    GM1389396Courtesy of GENERAL MOTORS CORP.
