Sunroof Component Views

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

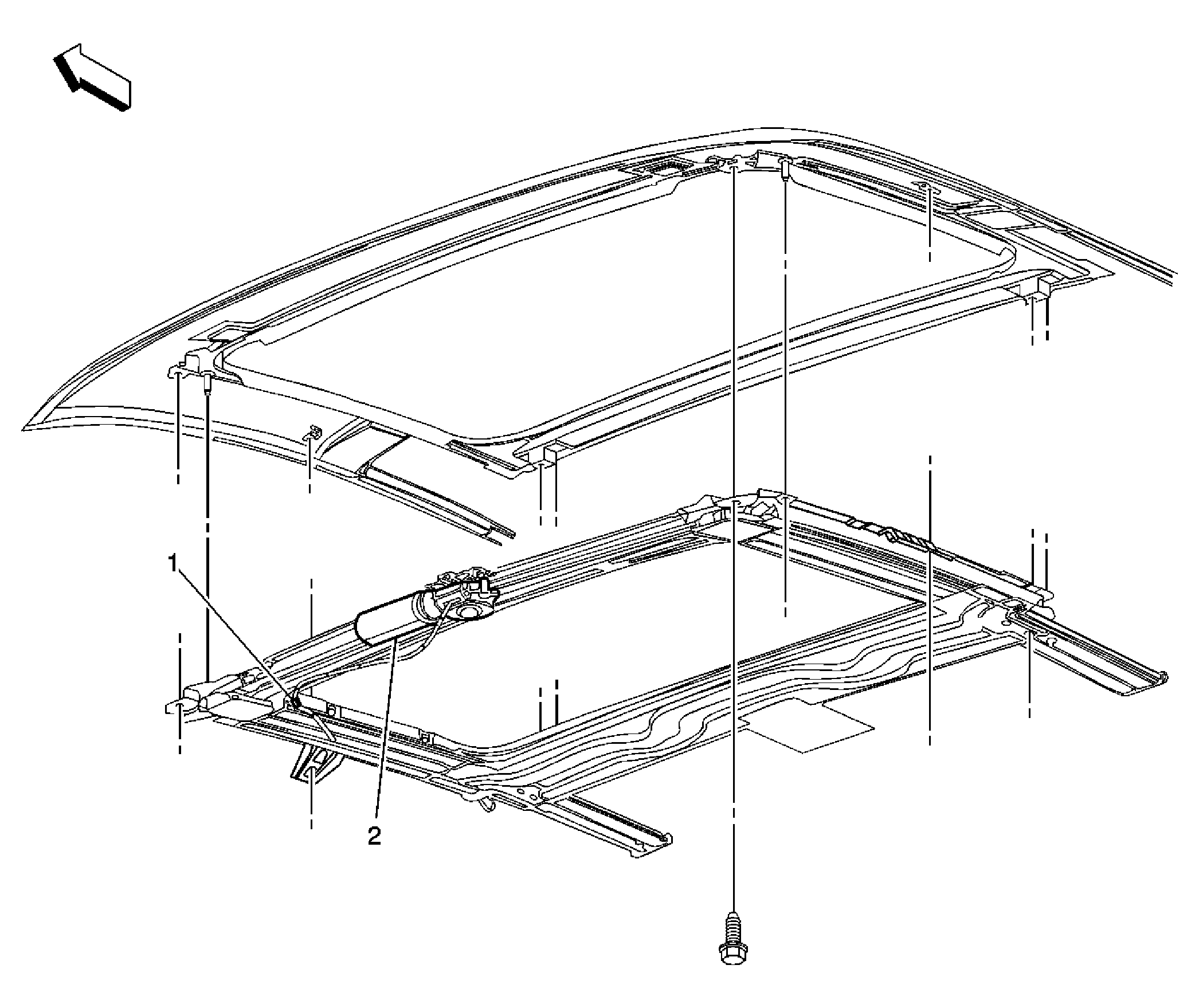

Fig 1: Sunroof Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C302
2	Sunroof Motor

Fig 2: Roof/Headliner (CF5 w/o C74) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch

Fig 3: Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp (C74)
2	Sunroof Switch (CF5)
3	Sunroof (CF5)
4	Dome Lamp
