Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector to the wiper motor.

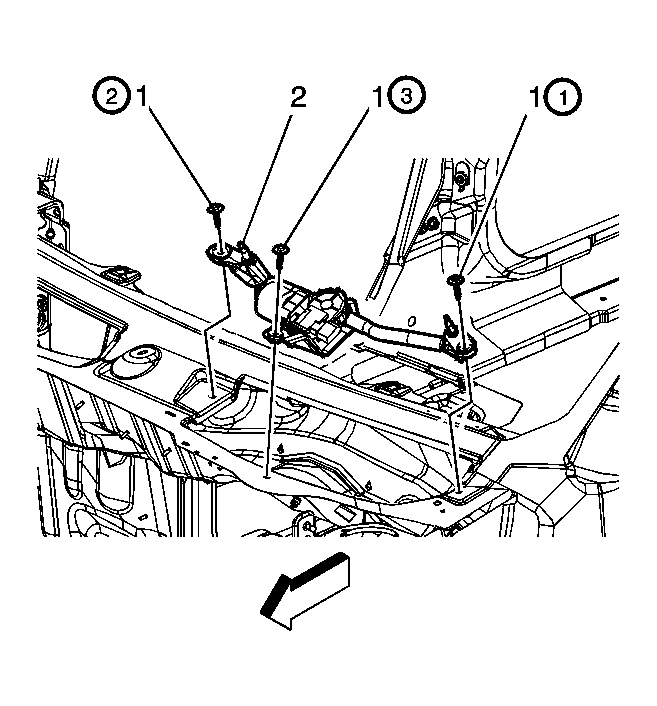

Fig 1: View Of Wiper Module Assembly

Courtesy of GENERAL MOTORS CORP.

Install the wiper module assembly into the plenum.

NOTE: Refer to Fastener Notice .

Install the fasteners (1) attaching the wiper module assembly (2) to the plenum.
Tighten: Tighten the fasteners in sequence as shown to 10 N.m (89 lb in)
Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
Install the wiper arms. Refer to Wiper Arm Replacement .
