Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn Ion Red Line, 2005 Saturn Ion 3, 2005 Saturn Ion 2, and 2005 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine splash shield by inserting the push-in retainers.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the air cleaner intake duct bolt.
Tighten: Tighten the bolt to 10 N.m (88 lb in).

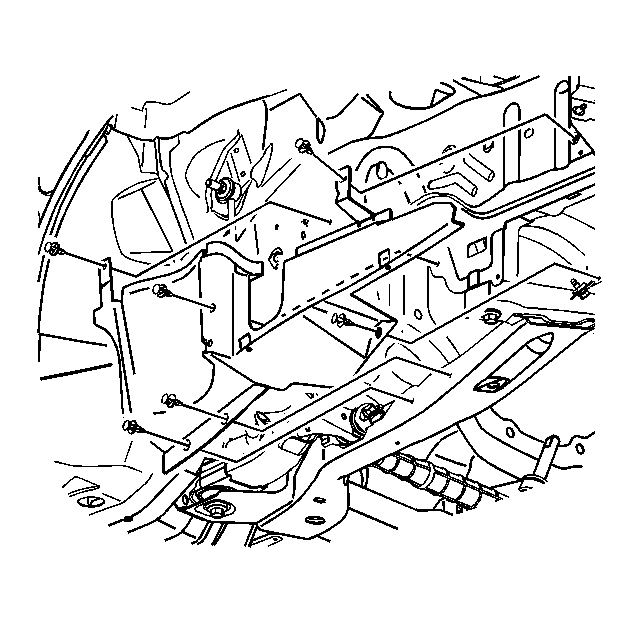

Fig 1: View Of Engine Splash Shield & Retainers

Courtesy of GENERAL MOTORS CORP.

Install the front fender liner. Refer to Front Fender Liner Replacement .
Lower the vehicle.
