Engine Front Cover Replacement: Notes

WARNING: This page is about a different car, the 2005 Saturn Ion Red Line. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankcase balancer. Refer to Crankshaft Balancer Replacement .

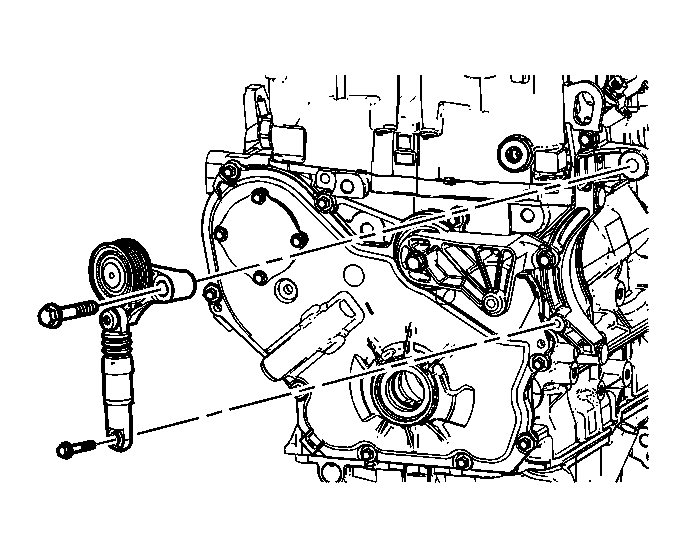

    2. Fig 1: Identifying Drive Belt Tensioner
    GM1381540Courtesy of GENERAL MOTORS CORP.
  2. Remove the drive belt tensioner.

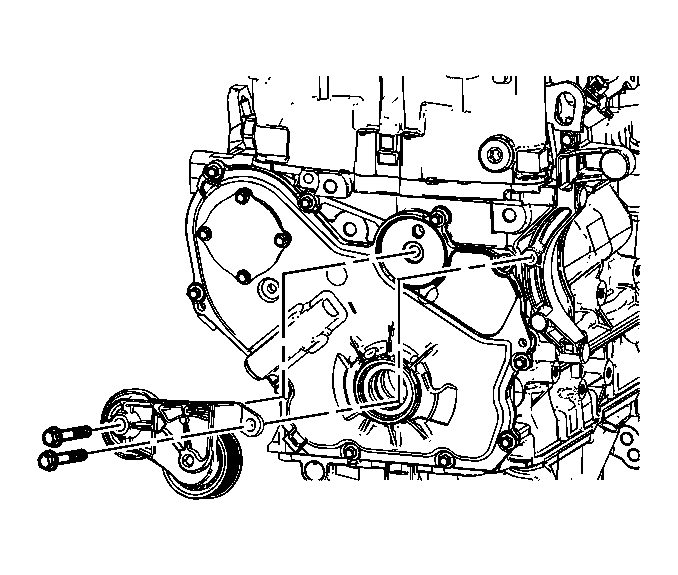

    3. Fig 2: View Of Idler Pulley
    GM1381542Courtesy of GENERAL MOTORS CORP.
  3. Remove the idler pulley.
  4. Remove the engine front cover to water pump bolt.
    5. Fig 3: View Of Engine Front Cover
    GM412537Courtesy of GENERAL MOTORS CORP.
  5. Remove the remaining engine front cover bolts.
  6. Remove the engine front cover.
    7. Fig 4: View Of Engine Front Cover Bolts
    GM412538Courtesy of GENERAL MOTORS CORP.
  7. If the engine front cover gasket is damaged, remove the front engine mount. Refer to Engine Mount Replacement .
  8. Remove the front engine mount bracket. Refer to Engine Mount Bracket Replacement .
