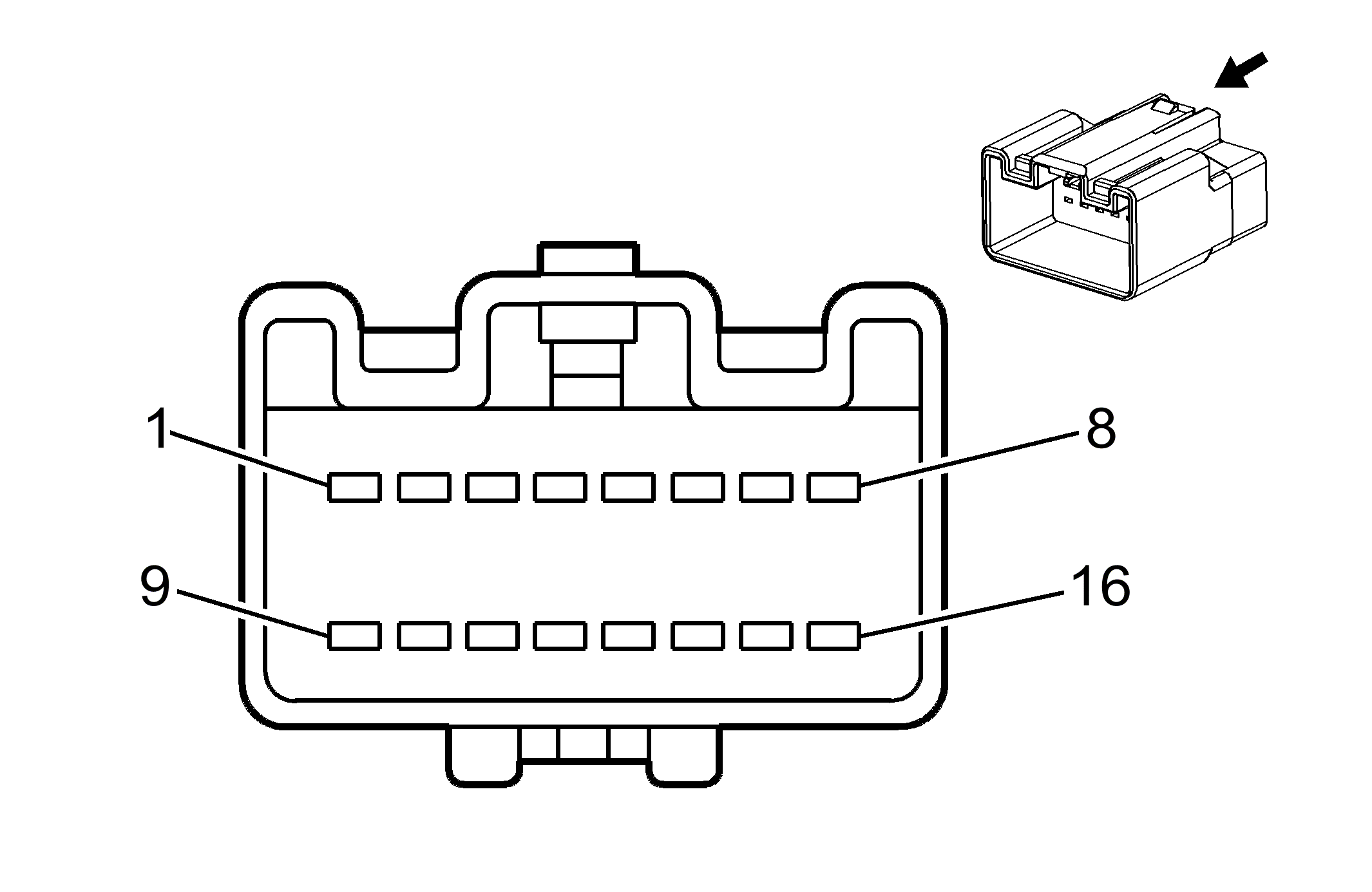

C200 Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7283-5534-60 16-Way F 1.5 Series Weather Pack (GN)		Connector Part Information		7282-5534-60 16-Way M 1.5 Series Weather Pack (GN)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	L-BU	115	Right Rear Speaker Output (-)	1	L-BU	115	Right Rear Speaker Output (-)
2	D-BU	46	Right Rear Speaker Output (+)	2	D-BU	46	Right Rear Speaker Output (+)
3	YE	116	Left Rear Speaker Output (-)	3	YE	116	Left Rear Speaker Output (-)
4	BN	199	Left Rear Speaker Output (+)	4	BN	199	Left Rear Speaker Door Output (+)
5	D-GN	117	Right Front Speaker Output (-)	5	D-GN	117	Right Front Speaker Door Output (-)
6	L-GN	200	Right Front Speaker Output (+)	6	L-GN	200	Right Front Speaker Door Output (+)
7	GY	118	Left Front Speaker Output (-)	7	GY	118	Left Front Speaker Door Output (-)
8	TN	201	Left Front Speaker Output (+)	8	TN	201	Left Front Speaker Door Output (+)
9	PK	314	Radio On Signal	9	PK	314	Radio On Signal (UZ6)
10	L-BU	1957	Left Front Midrange Speaker Output (-)	10	GY	118	Left Front Speaker Output (-) (UZ6)
10	L-BU	1957	Left Front Midrange Speaker Output (-)	10	L-BU	1957	Left Front Midrange Speaker Output (-) (U79/UX7)
11	D-BU	1857	Left Front Midrange Speaker Output (+)	11	TN	201	Left Front Speaker Output (+) (UZ6)
11	D-BU	1857	Left Front Midrange Speaker Output (+)	11	D-BU	1857	Left Front Midrange Speaker Output (+) (U79/UX7)
12	TN	2133	Side Impact Sensing Module - Right - Voltage	12	TN	2133	Side Impact Sensing Module - Right - Voltage
13	D-GN	2134	Side Impact Sensing Module - Right - Voltage	13	D-GN	2134	Side Impact Sensing Module - Right - Voltage
14	L-GN	2116	Seat Belt Pretensioner - Right - High Control	14	L-GN	2116	Seat Belt Pretensioner - Right - High Control
15	OG	2117	Seat Belt Pretensioner - Right - Low Control	15	OG	2117	Seat Belt Pretensioner - Right - Low Control
16	-	-	Not Used	16	-	-	Not Used
