C491 Connector End View

C491 Connector End View

GM697039Courtesy of GENERAL MOTORS CORP.

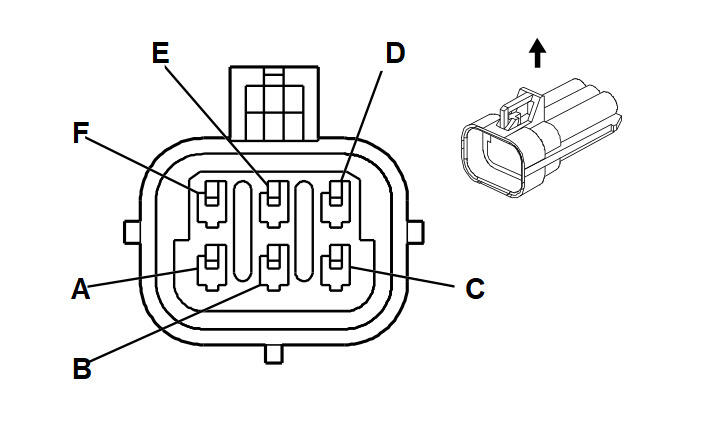

GM333040Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052848
  • 6-Way F Metri-Pack 150 Series Sealed (BK)
 Connector Part Information
  • 12124107
  • 6-Way M Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE 18 Left Rear Stop/Turn Lamp Supply Voltage A YE 18 Left Rear Stop/Turn Lamp Supply Voltage
B L-BU 20 Stop Lamp Switch Signal B L-BU 20 Stop Lamp Switch Signal
C BN 9 Park Lamp Supply Voltage C BN 9 Park Lamp Supply Voltage
D L-GN 24 Backup Lamp Supply Voltage D L-GN 24 Backup Lamp Supply Voltage
E BK 750 Ground E BK 750 Ground
F - - Not Used F - - Not Used
