Fuel Sender Connector End View

Fuel Sender Connector End View

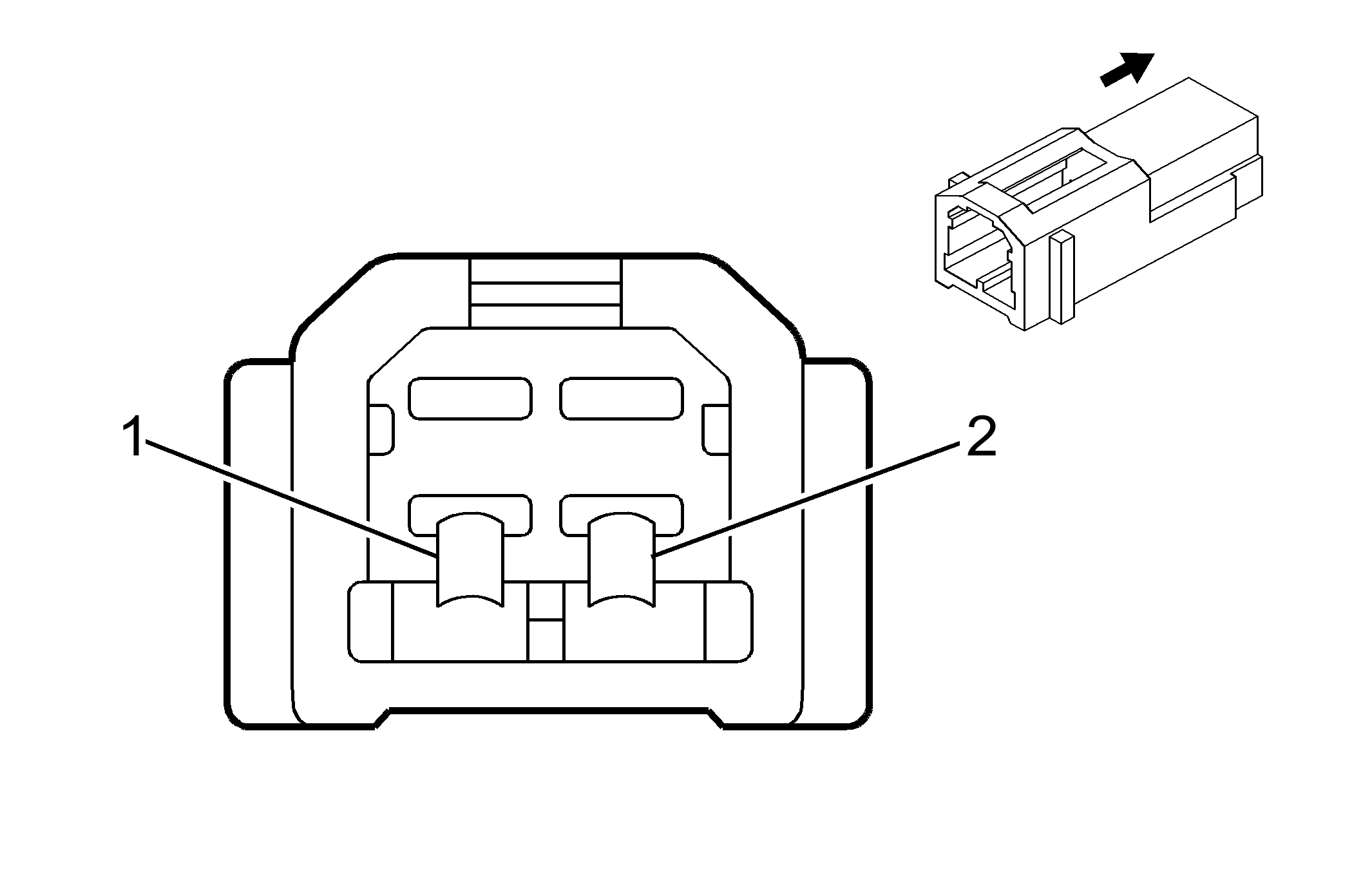

GM872577Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 174460-1
  • 2-Way F Amp (WH)
Pin Wire Color Circuit No. Function
A YE/WH 1589 Fuel Level Sensor Signal
B PK/OG 2759 Low Reference
