Fuse Block - I/P - Left C1

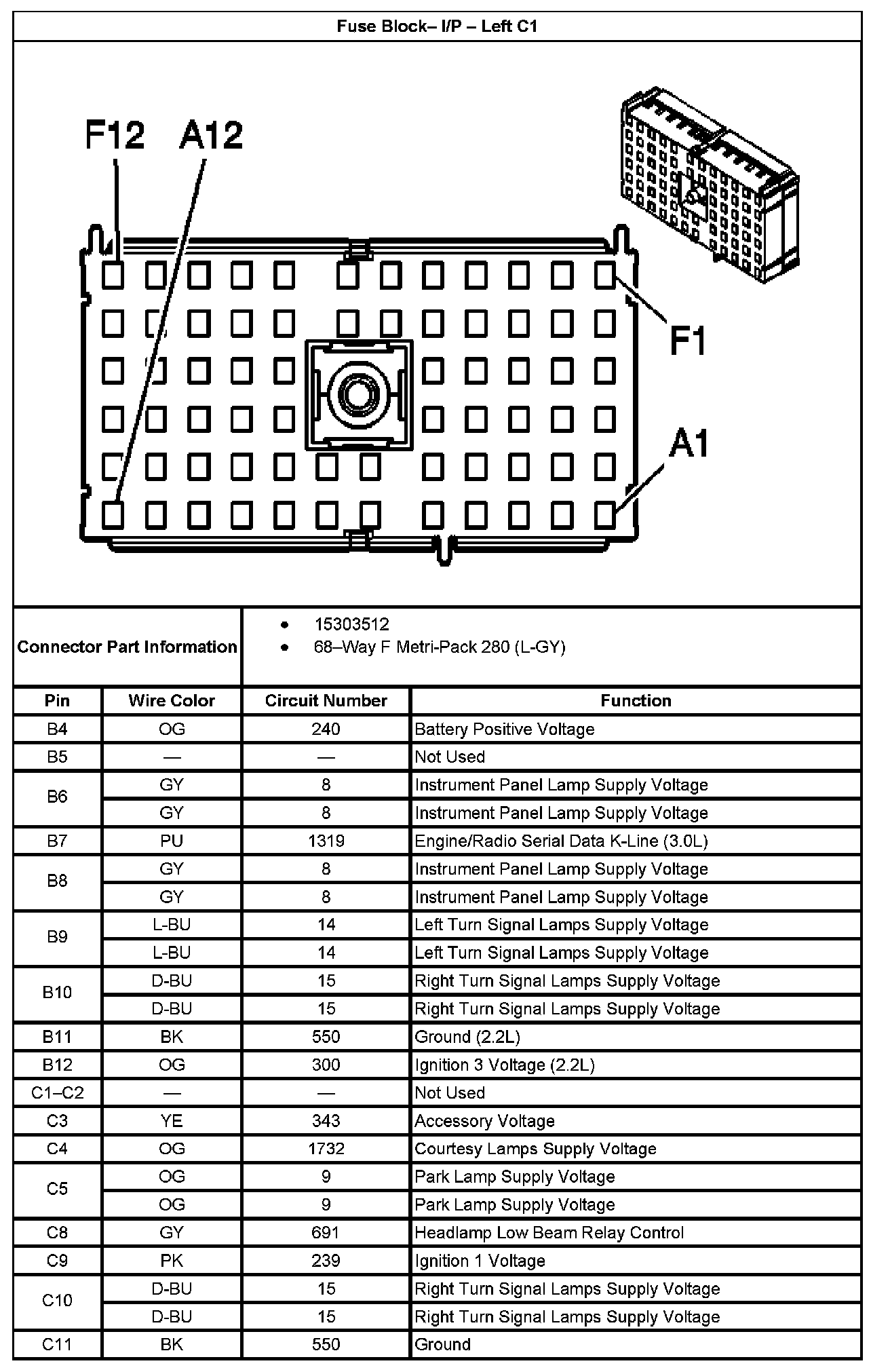

Fuse Block - I/P - Left C1 Part 1:

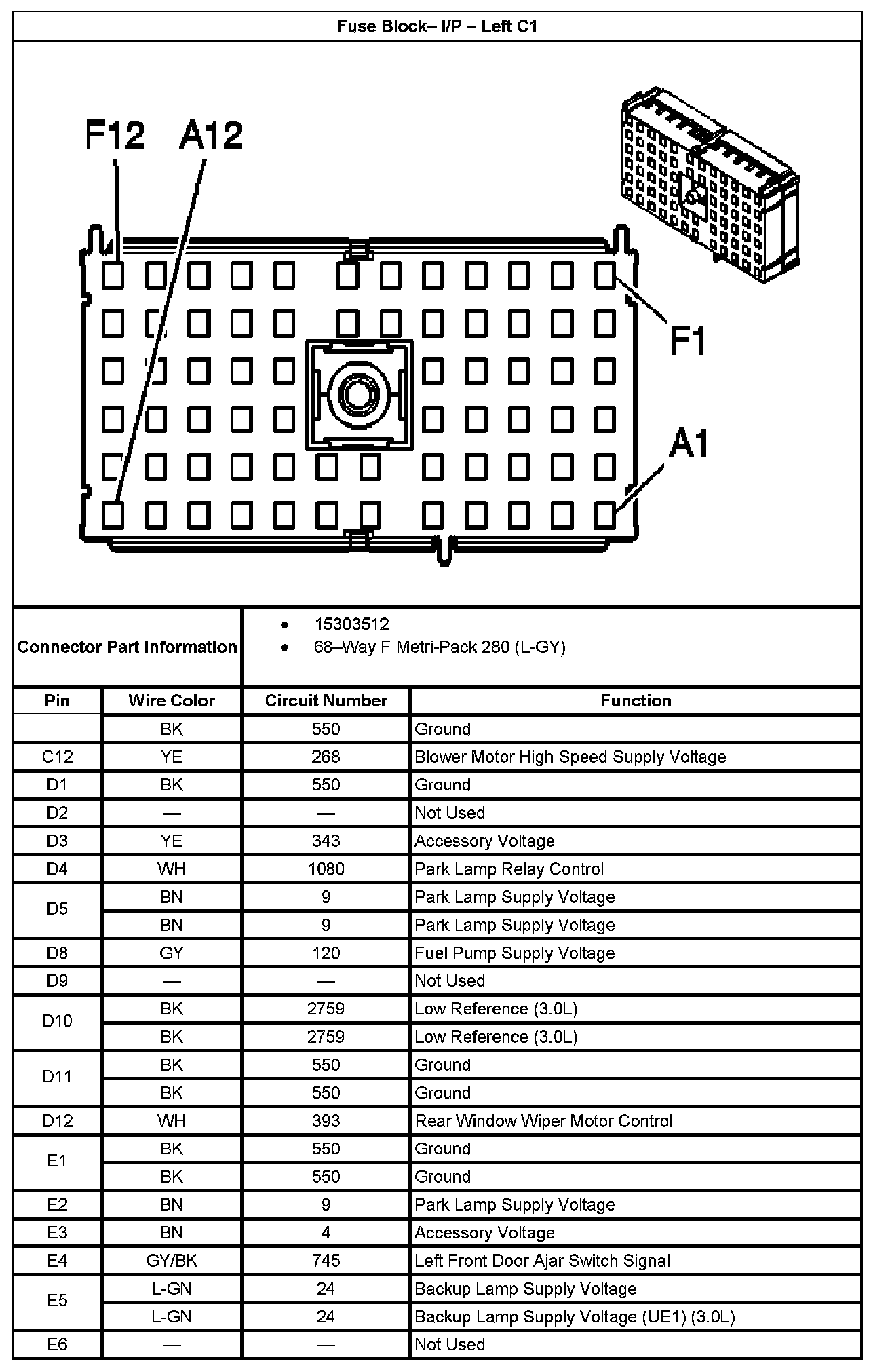

Fuse Block - I/P - Left C1 Part 2:

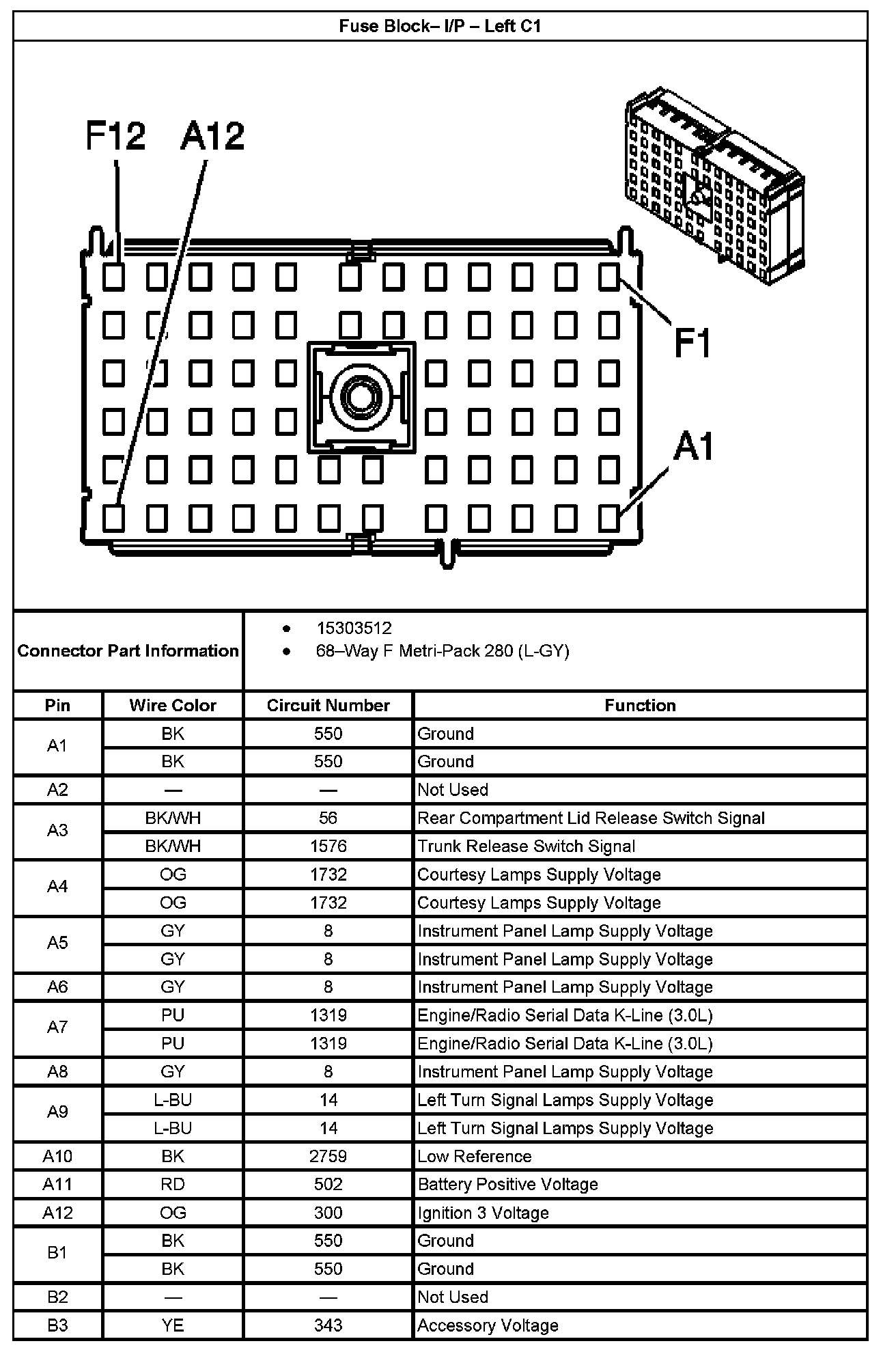

Fuse Block - I/P - Left C1 Part 3:

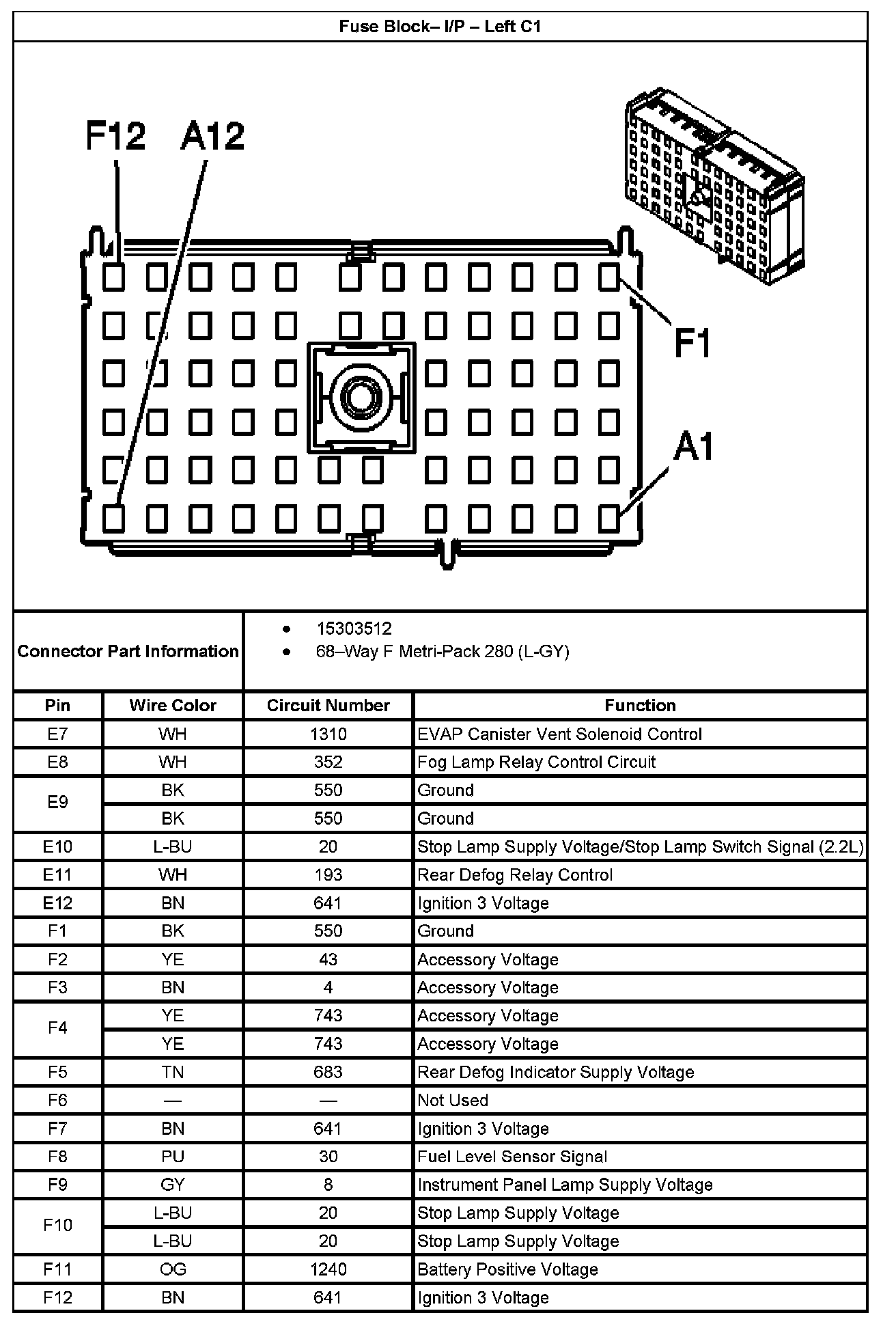

Fuse Block - I/P - Left C1 Part 4:
