Home >> Saturn >> 2004 >> L Series L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Reaction Carrier Assembly

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

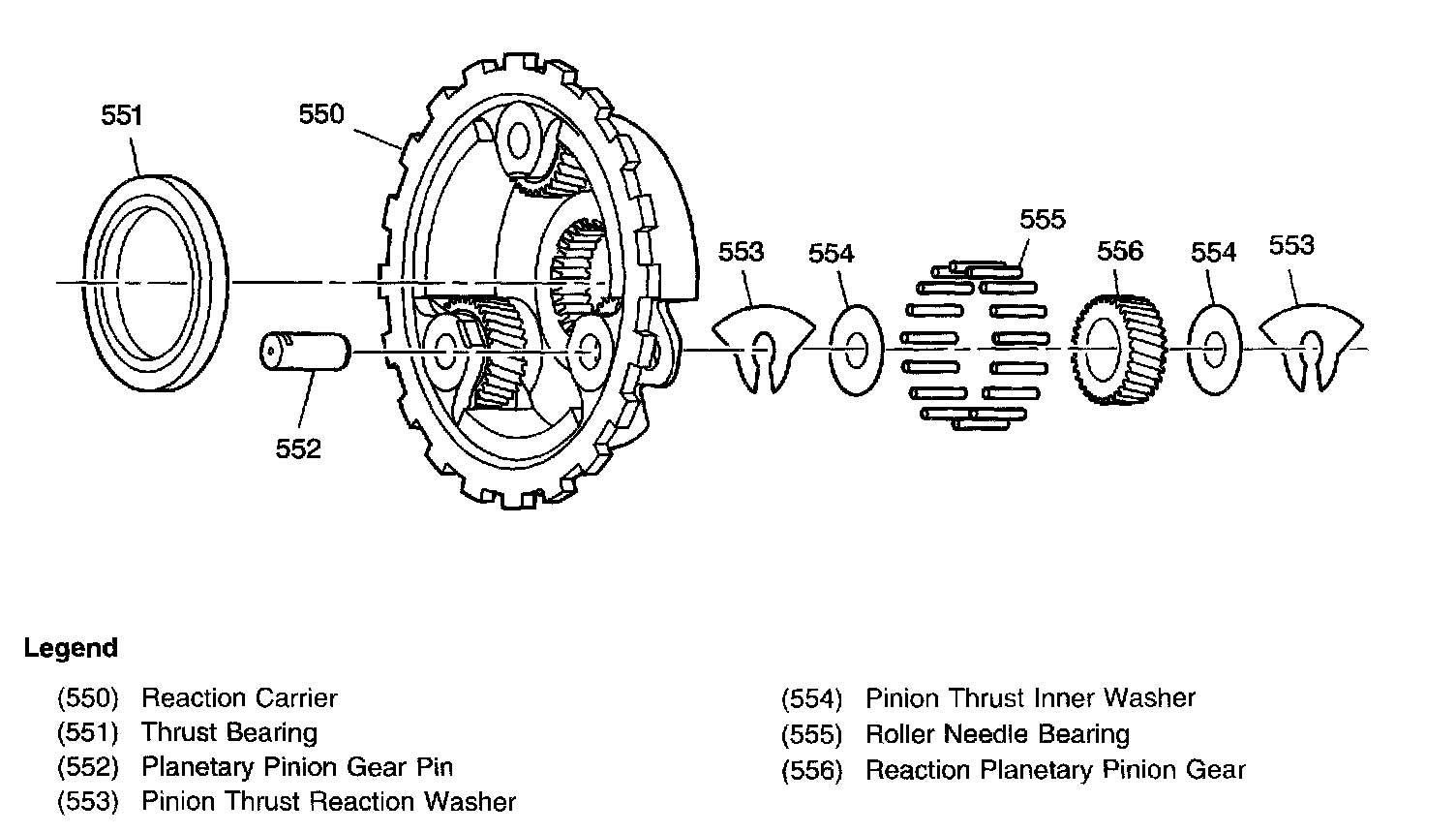

Reaction Carrier Assembly
