Ambient Temperature Sensor / Switch HVAC: Service and Repair

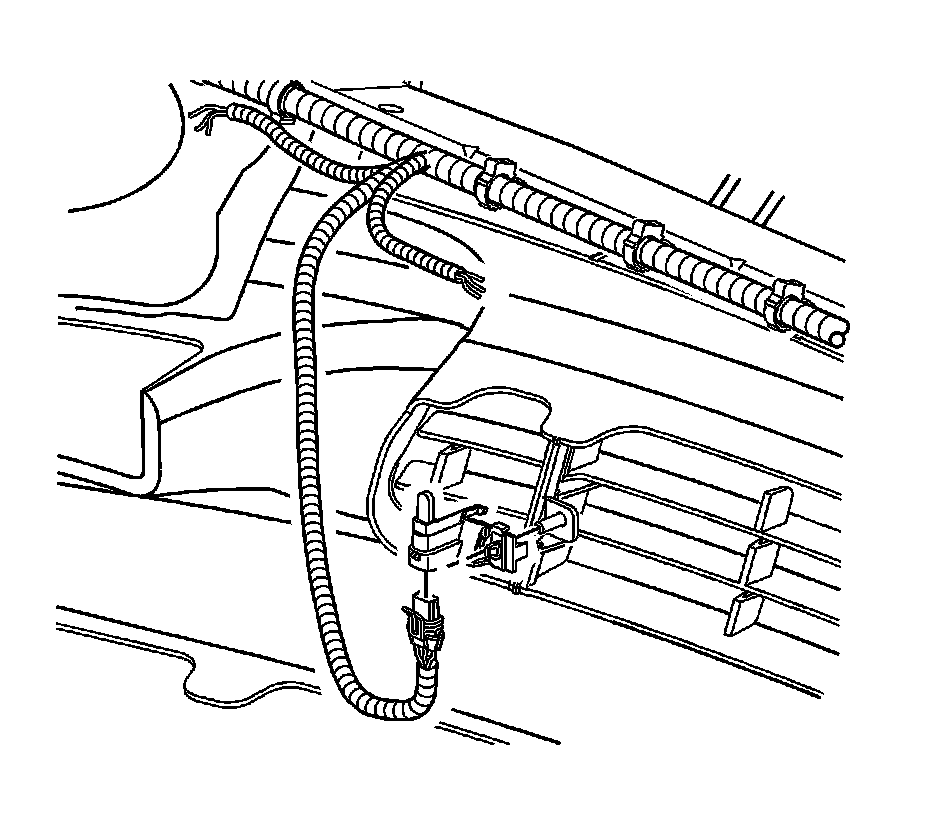

AMBIENT AIR TEMPERATURE SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the ambient air temperature sensor electrical connector.
2. Remove the ambient air temperature sensor screw.
3. Remove the ambient air temperature sensor.

INSTALLATION PROCEDURE




1. Install the ambient air temperature sensor.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screw to the ambient air temperature sensor.

Tighten the screw to 4 N.m (35 lb in).

3. Connect the ambient air temperature sensor electrical connector.
