DTC B2707: Notes

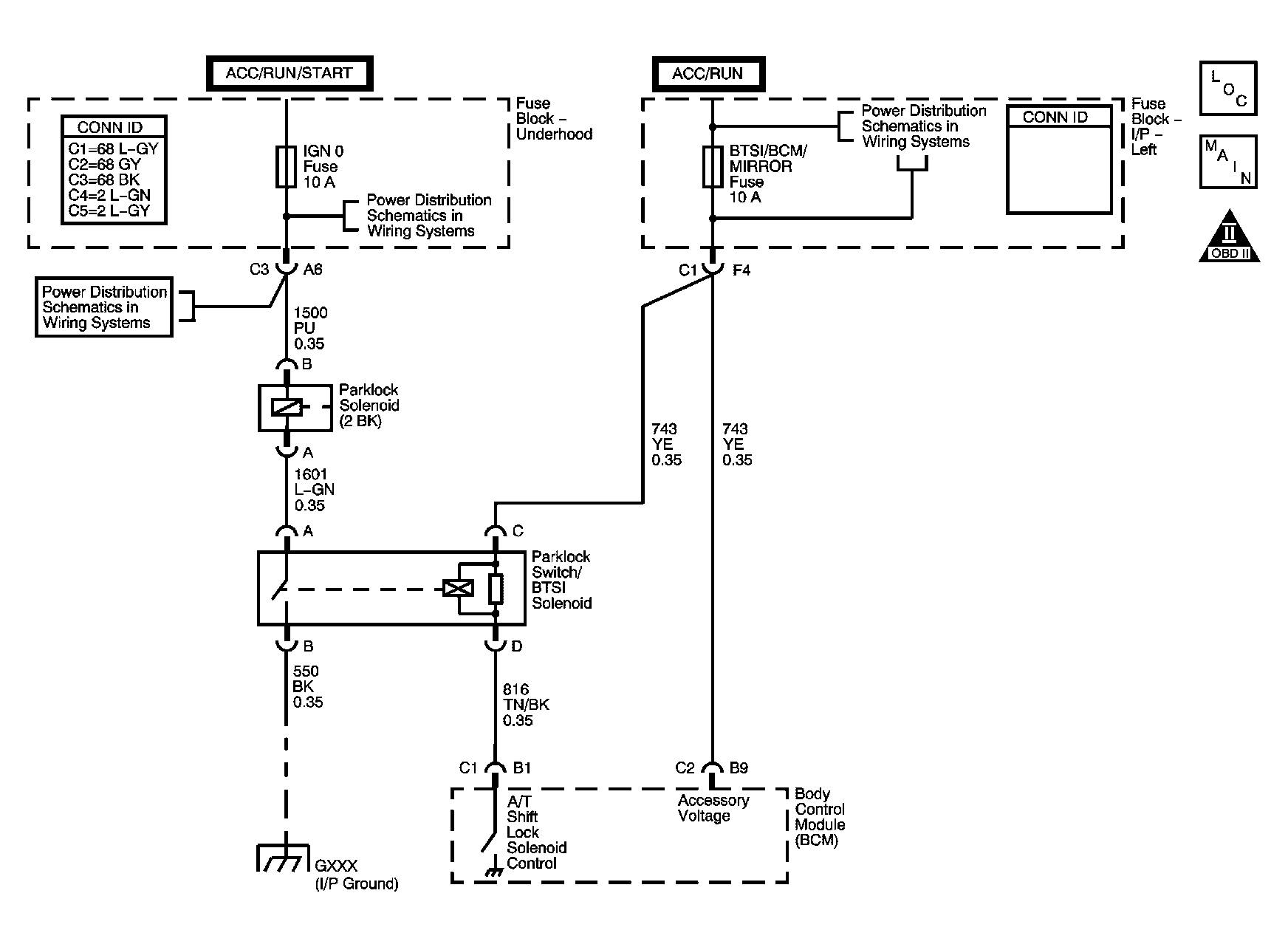

Fig 1: Automatic Transmission Shift Lock Control Circuit Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
