Fuse Block - I/P C3

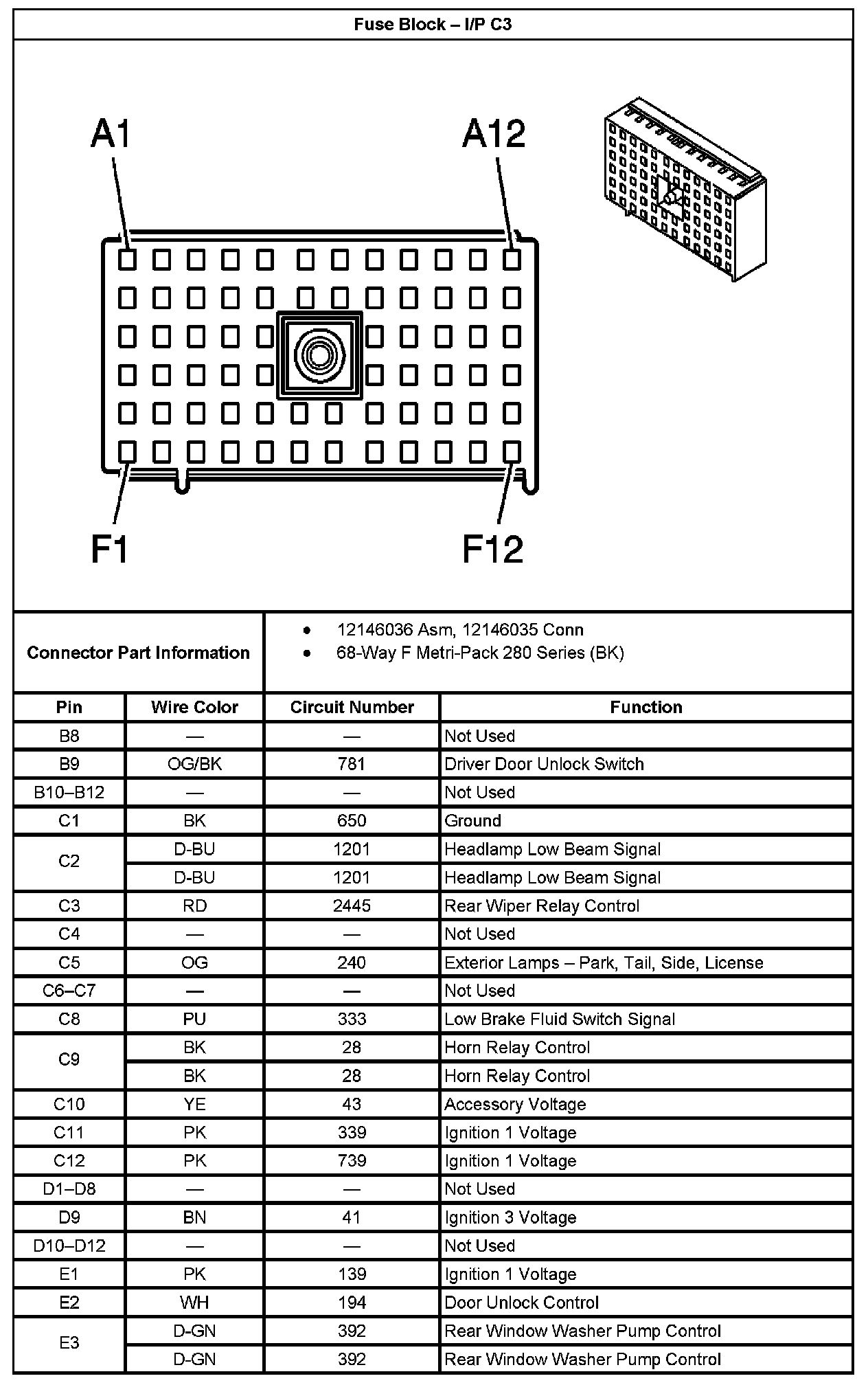

Fuse Block - I/P C3 Part 1:

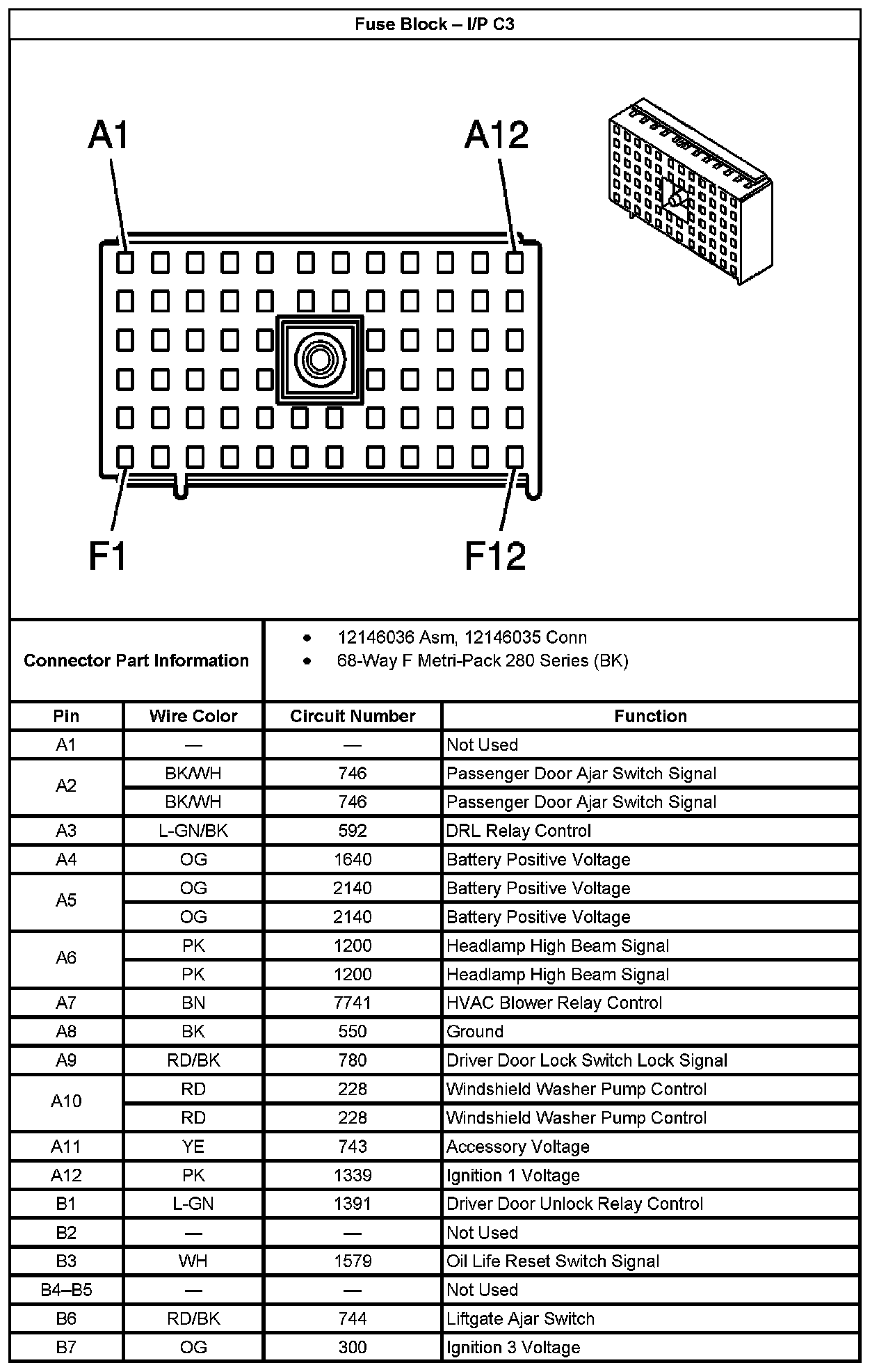

Fuse Block - I/P C3 Part 2:

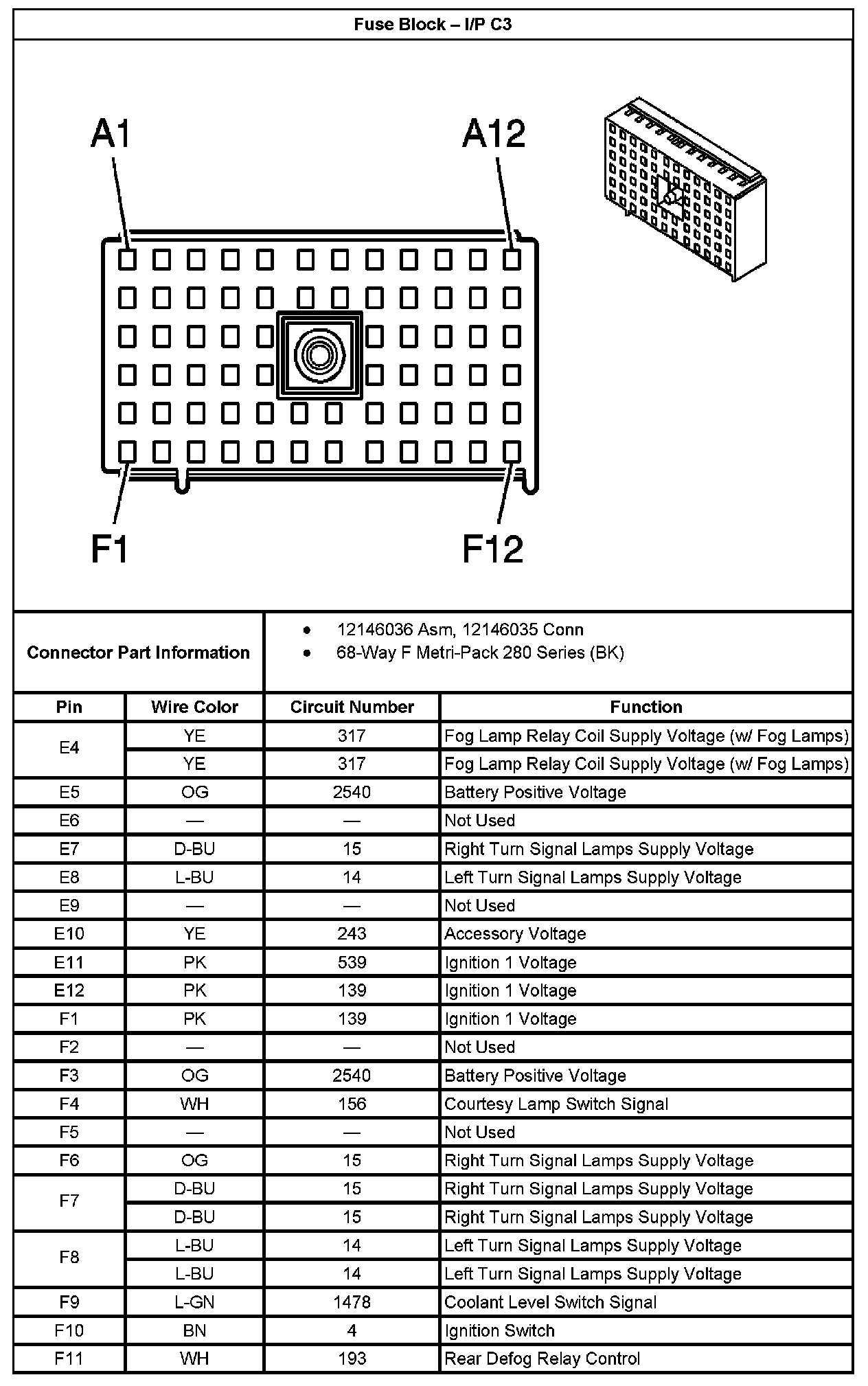

Fuse Block - I/P C3 Part 3:
Fuse Block - I/P C3 Part 4:
