Pressure Tap

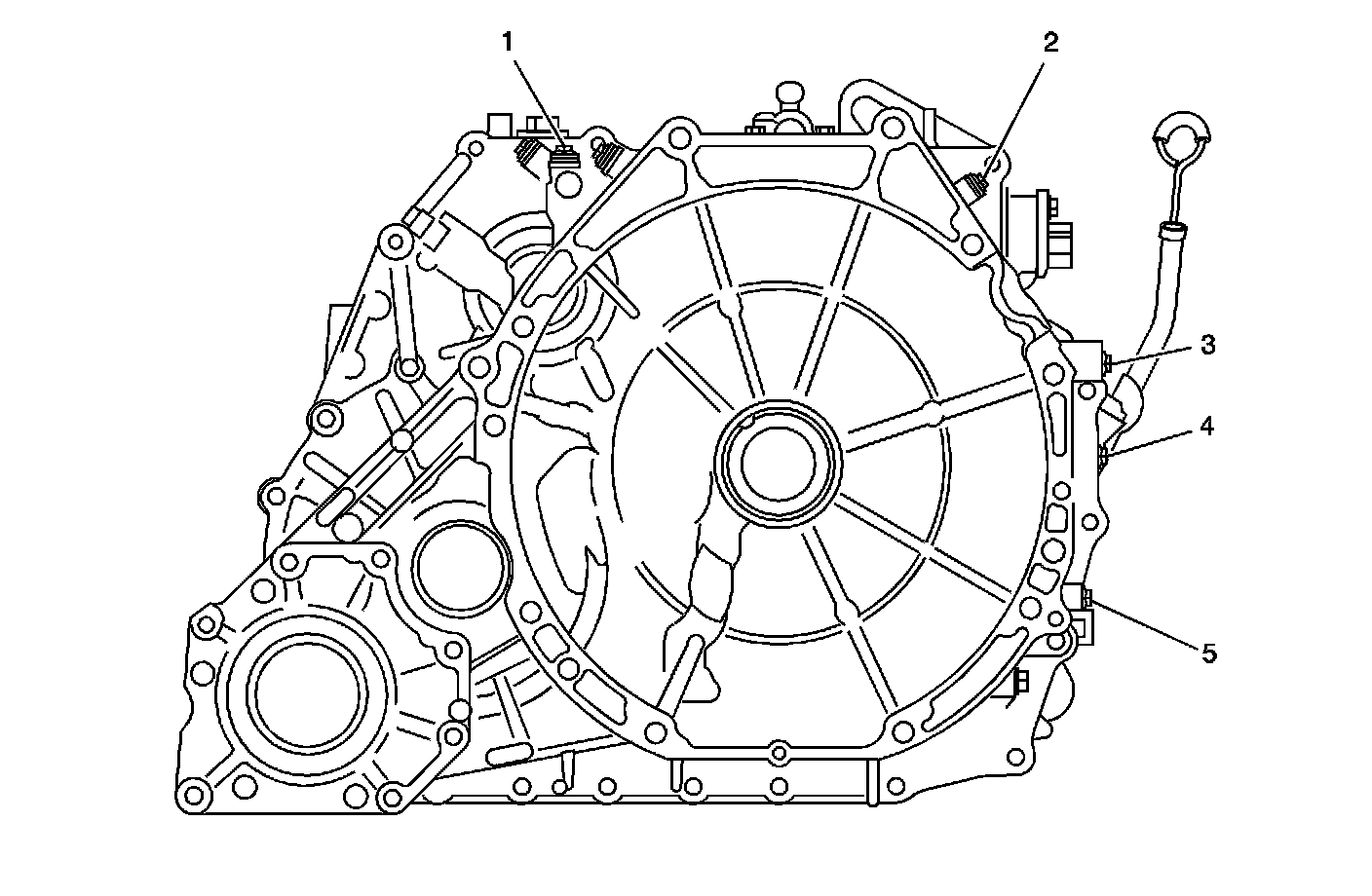

Pressure Tap Locations - Torque Converter Housing

1 - 2nd Clutch
2 - 1st Clutch Accumulator
3 - 5th Clutch
4 - Line Pressure
5 - 3rd Clutch

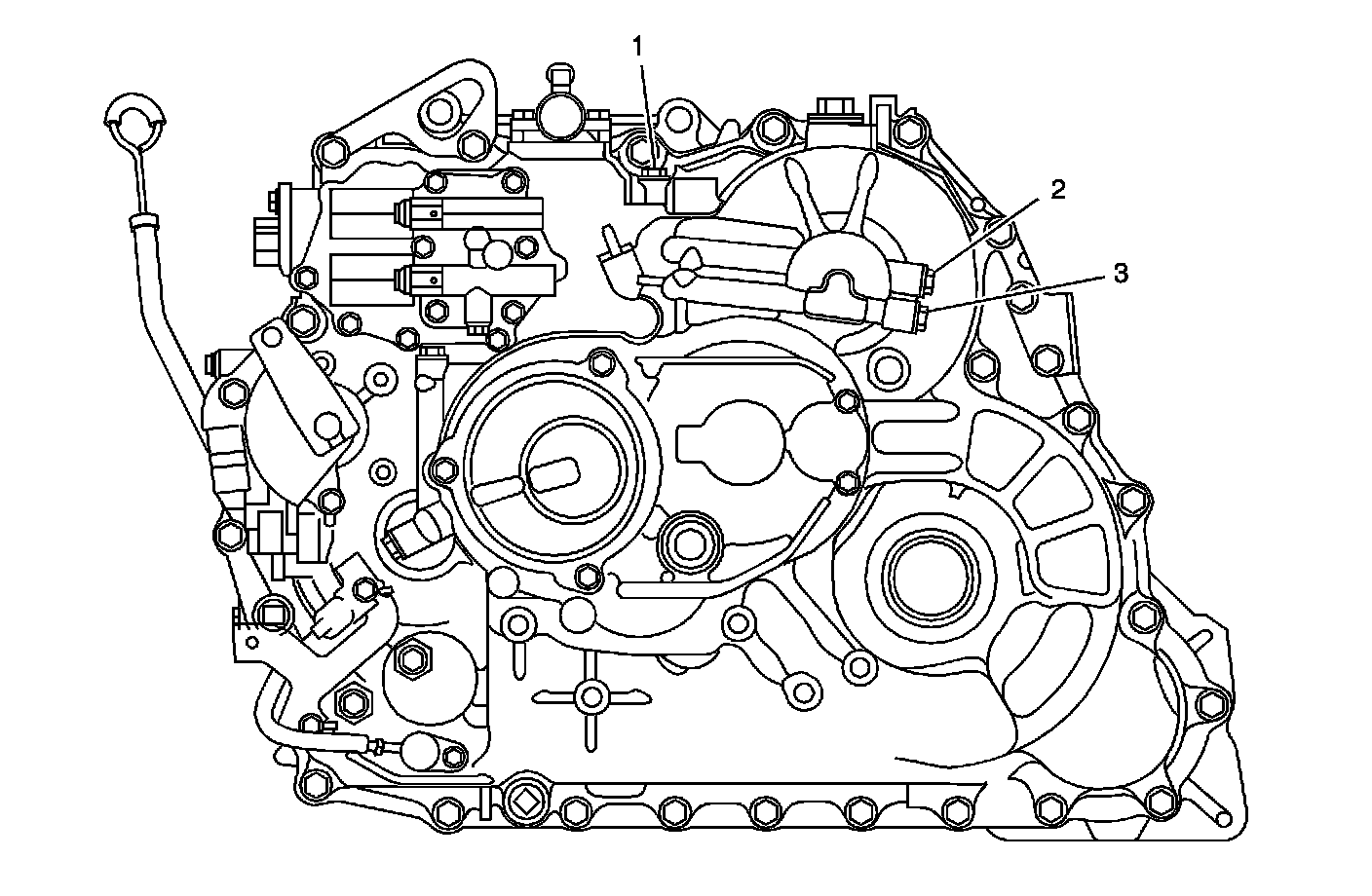

Pressure Tap Location - Transmission Case

1 - 4th Clutch
2 - 1st Clutch
3 - Coast Clutch
