Compressor Clutch: Specifications

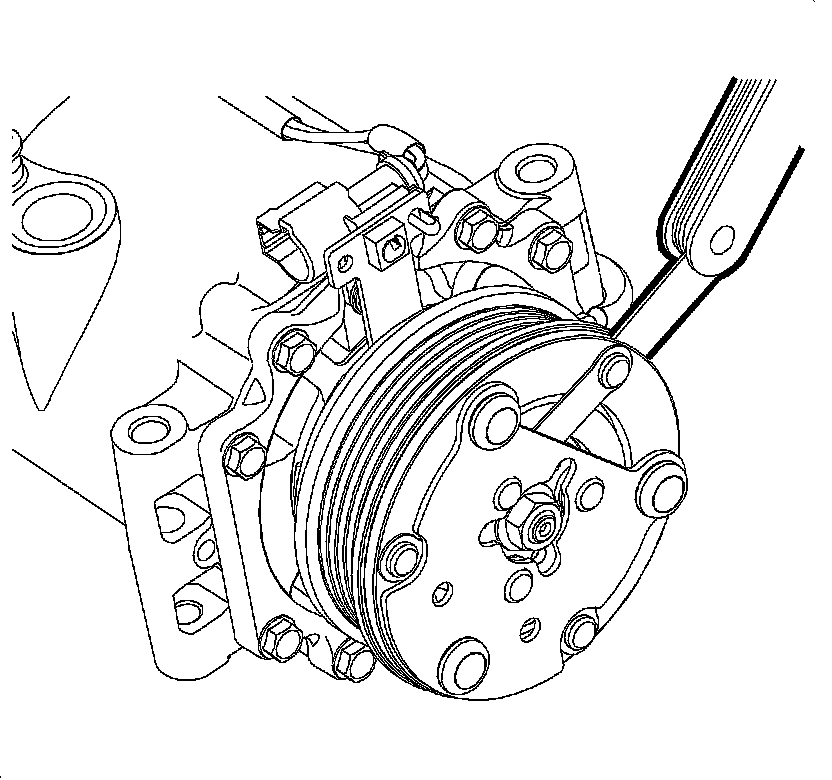

Using a feeler gauge, measure the clearance between the pulley and the drive plate.

The clearance should be 0.35-0.75 mm (0.014-0.030 in).

If necessary, adjust the clearance by adding or removing clutch hub spacers.
