Electrical Diagrams

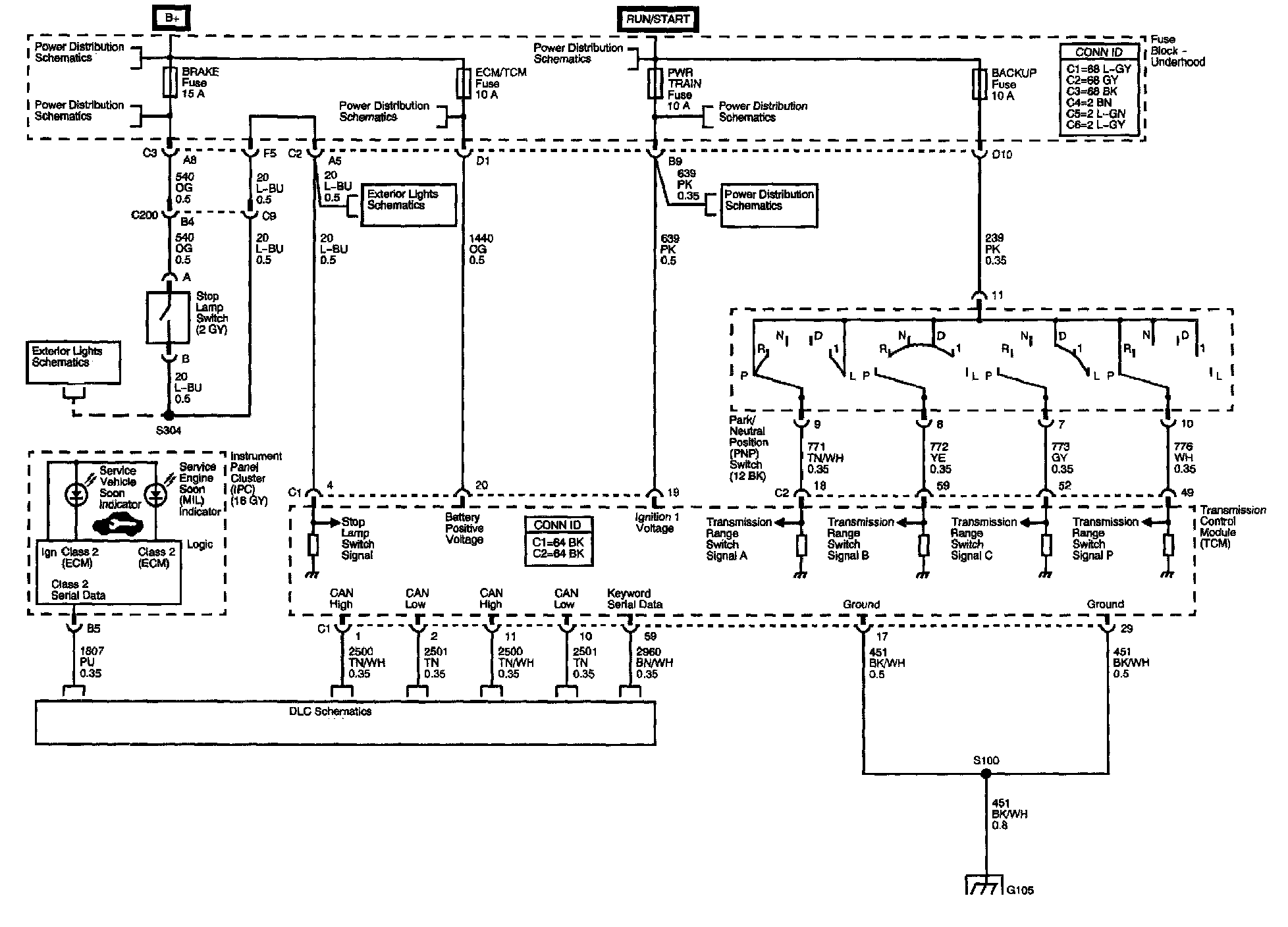

A/T Controls Diagrams (Power, Ground, Serial Data, and Switch Signals):

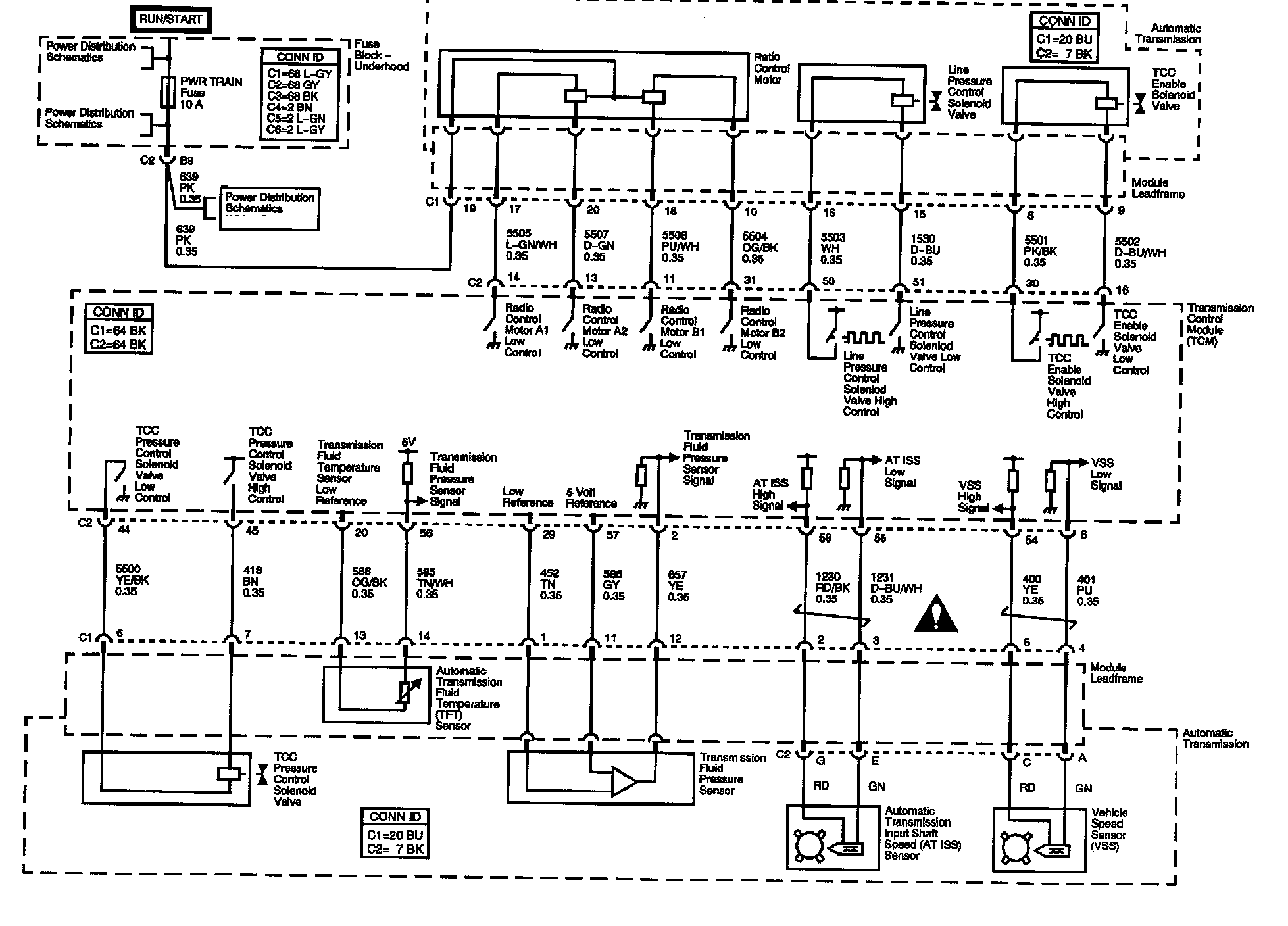

A/T Controls Schematics (Sensors and Solenoids):
