Window Handle: Service and Repair

Window Regulator Handle Replacement - Door

Removal Procedure





1. Using a standard handle tool, disengage the retention spring from the window regulator handle.
2. Remove the handle and the bearing plate.



Installation Procedure





1. Install the retention spring on the window regulator handle.
2. Install the bearing plate on the regulator spindle.

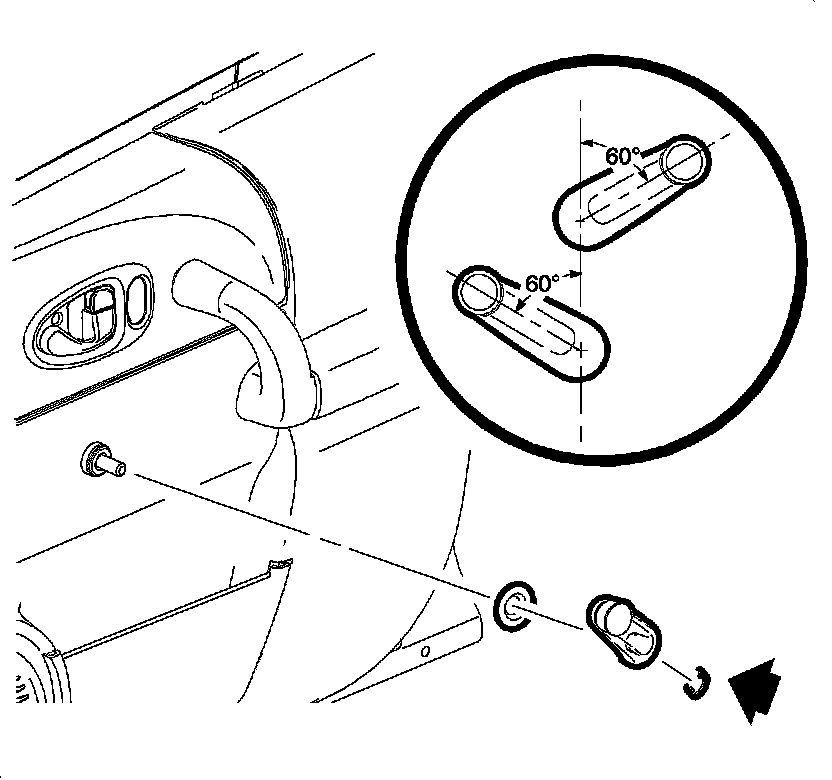

3. Install the handle to the regulator spindle at a position 60 degrees forward of the up position. The illustration shows the proper angle for both the right and the left side doors.
