Automatic Transmission Controls Schematics

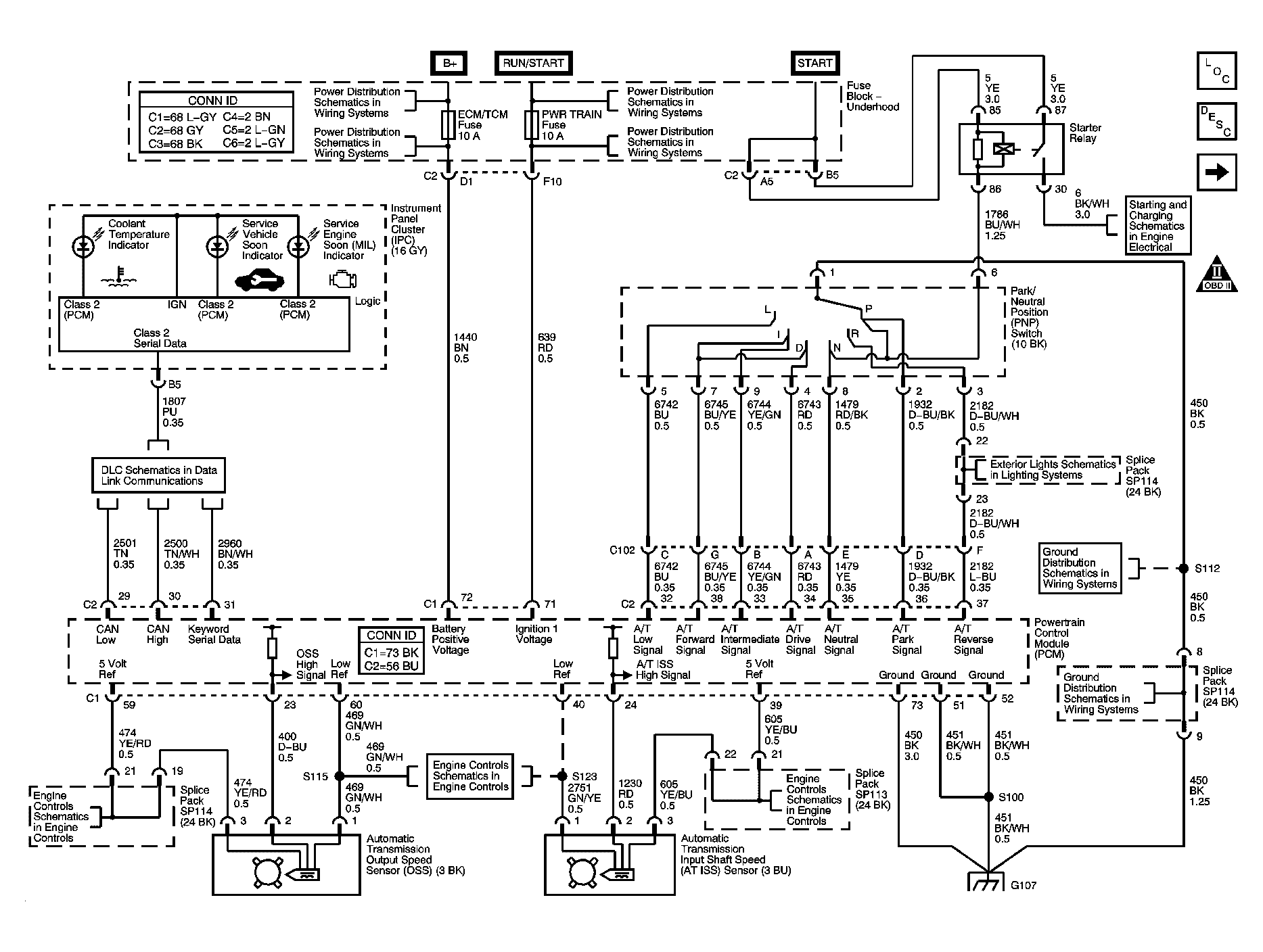

Fig 1: Power, Ground, PNP Switch, And Communication Data Schematics
Courtesy of GENERAL MOTORS CORP.

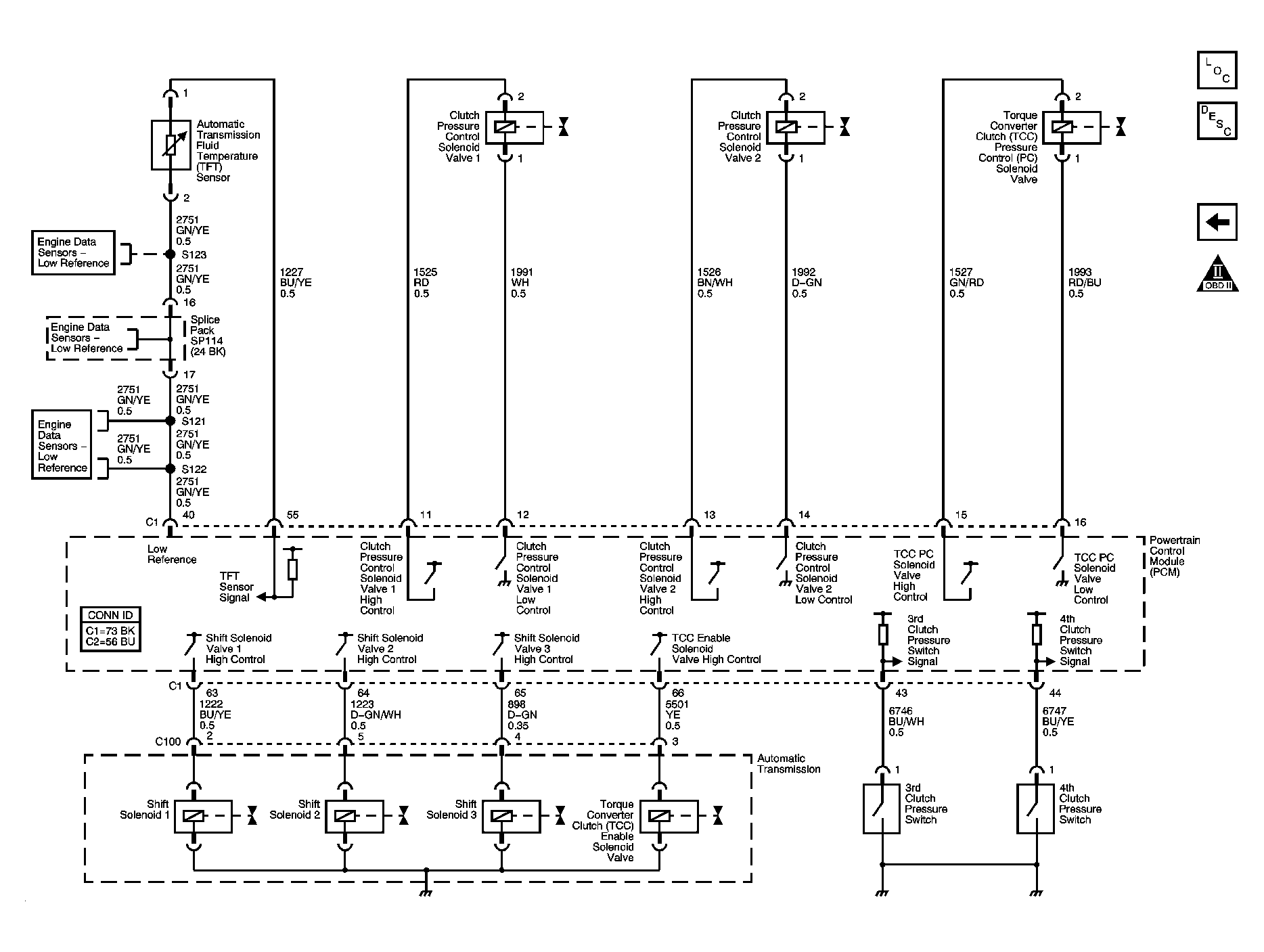

Fig 2: Solenoids, Switches, And Sensors Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
