Fluid Pressure Sensor/Switch, A/T

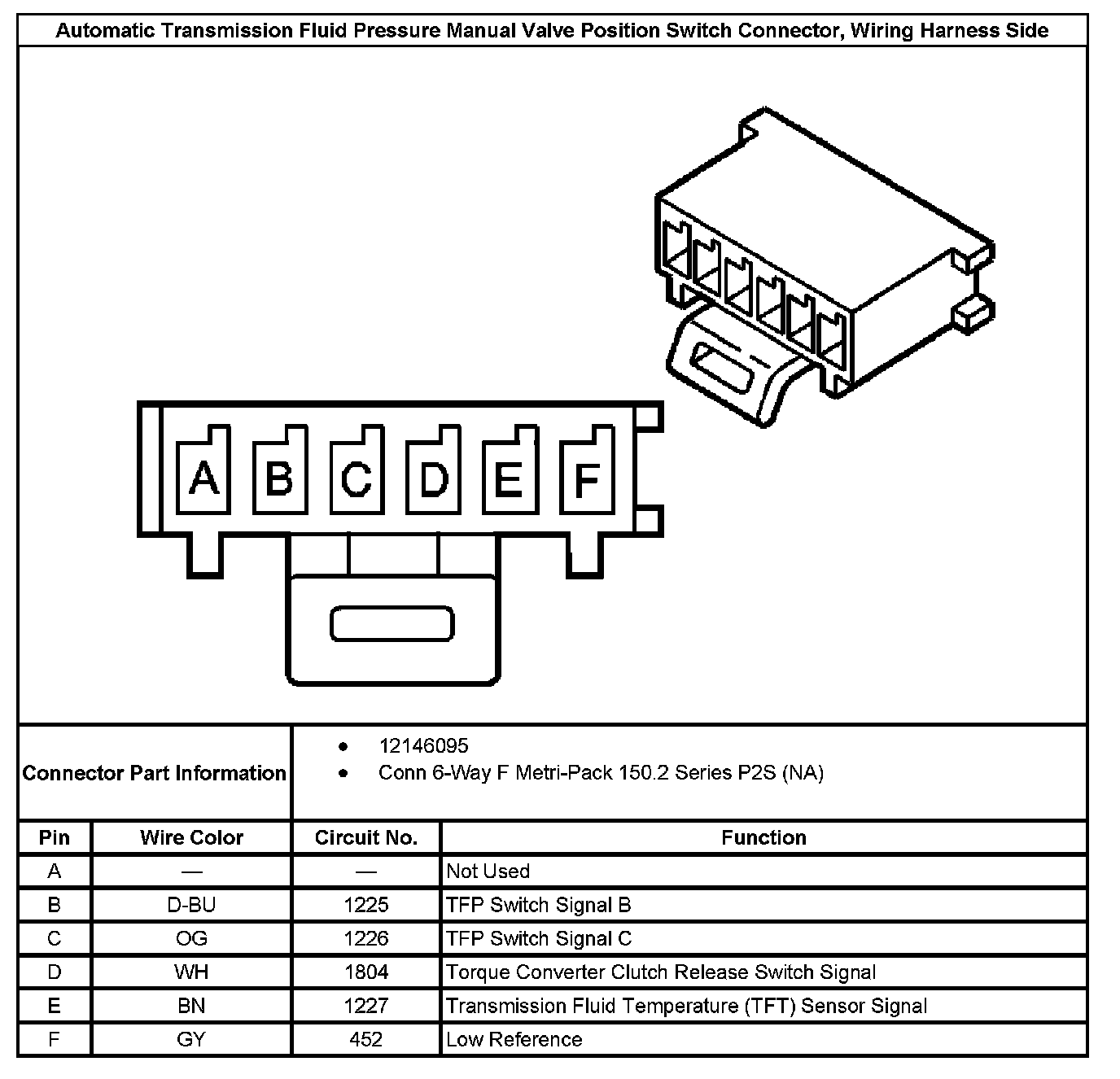

Automatic Transmission Fluid Pressure Manual Valve Position Connector, Wiring Harness Side:
