Transmission Control Systems

Automatic Transmission Inline 20-Way Connector End View:

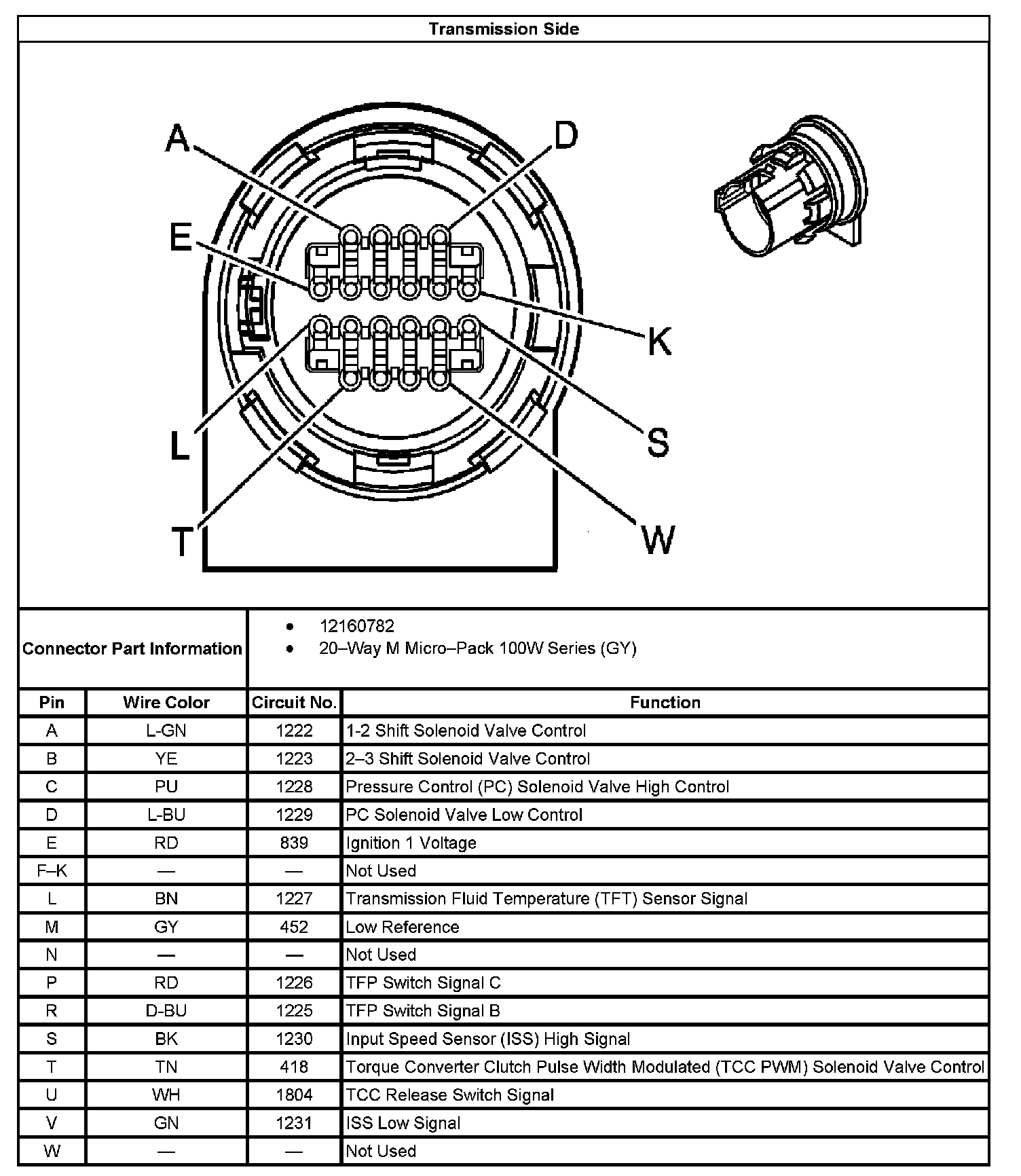

Transmission Side:
