Accelerator Pedal Position Sensor: Locations

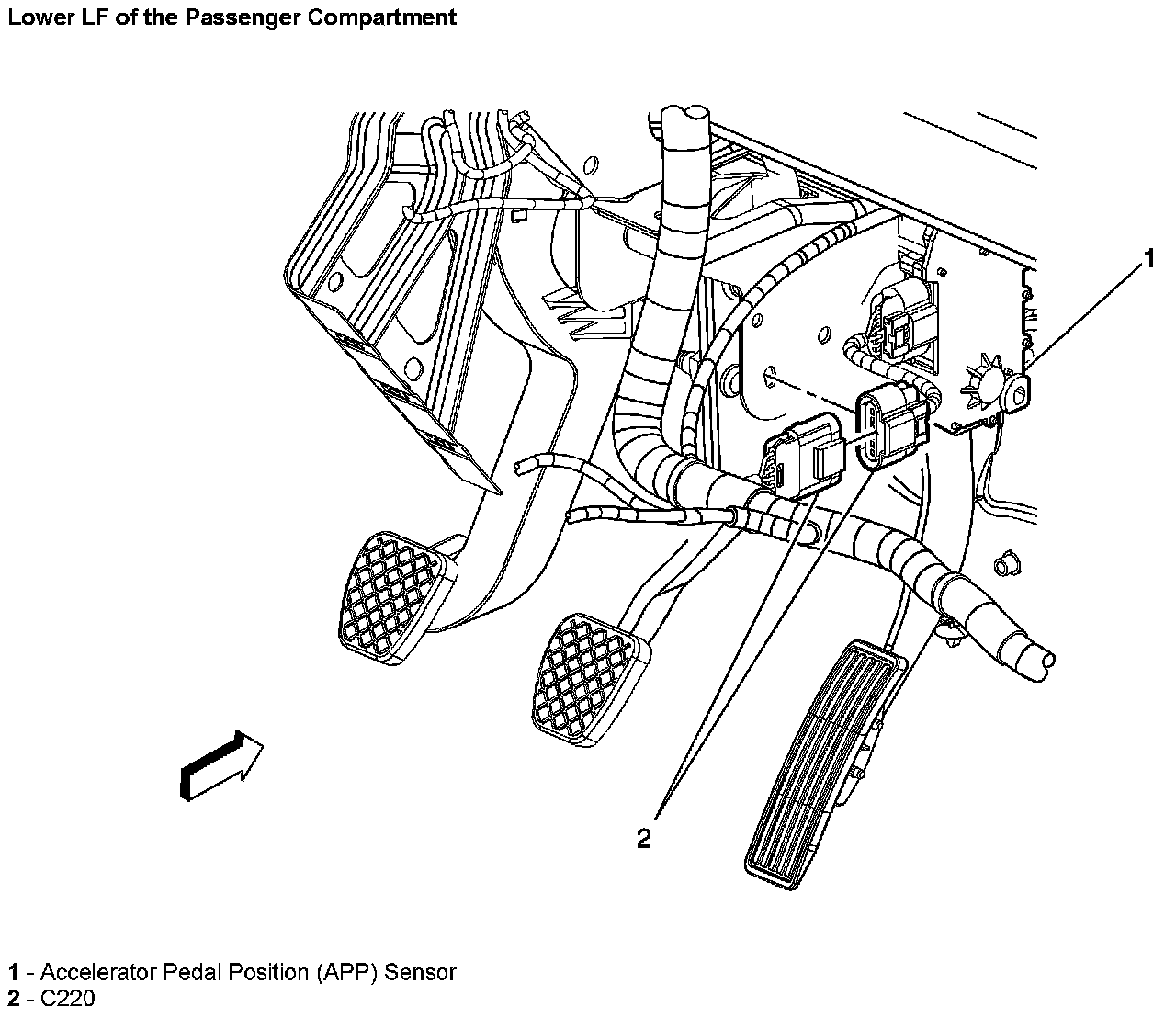

Lower LF Of The Passenger Compartment:

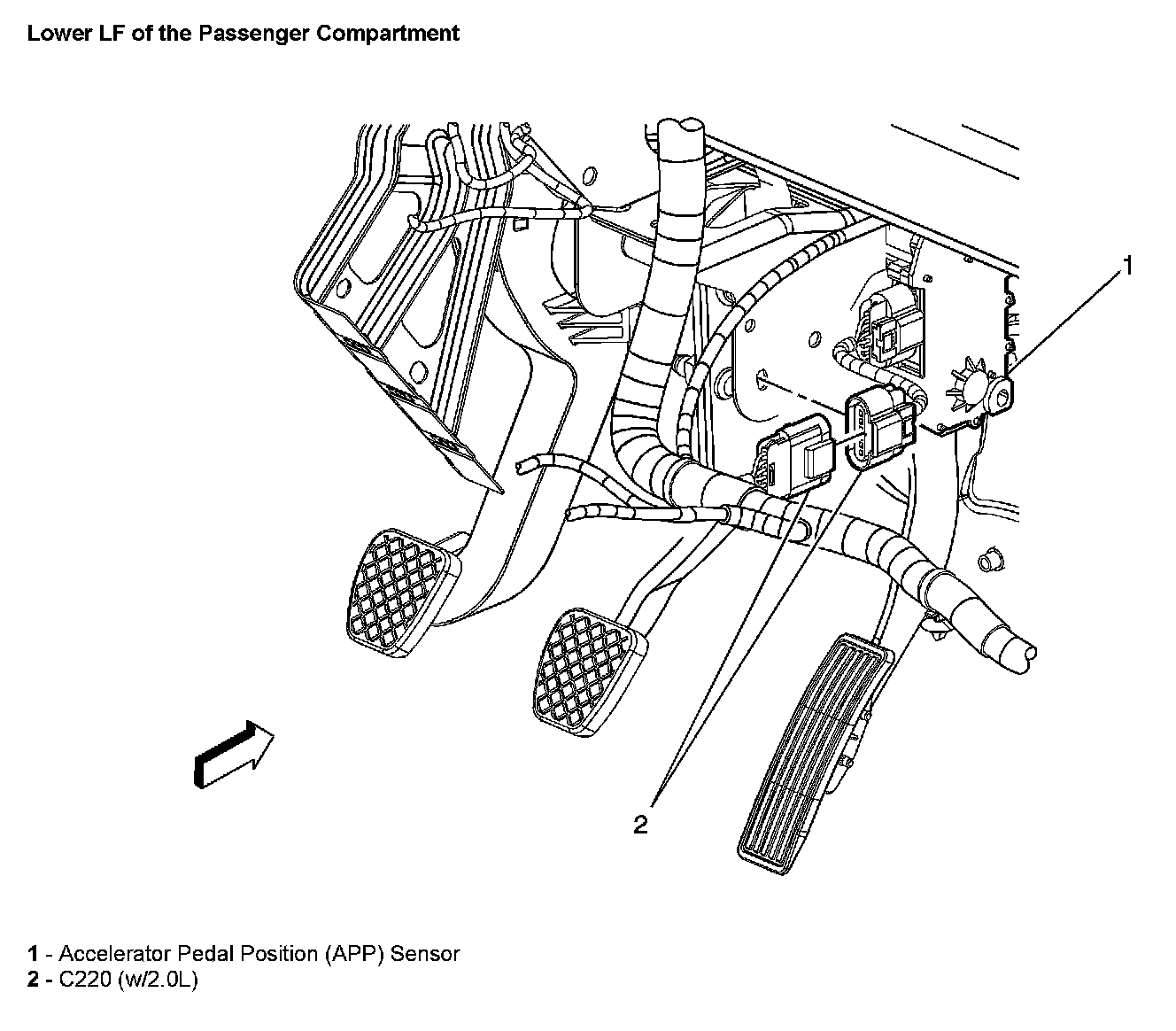

Lower LF of the Passenger Compartment:
