Air Temperature Sensor ( Ambient / Intake ): Locations

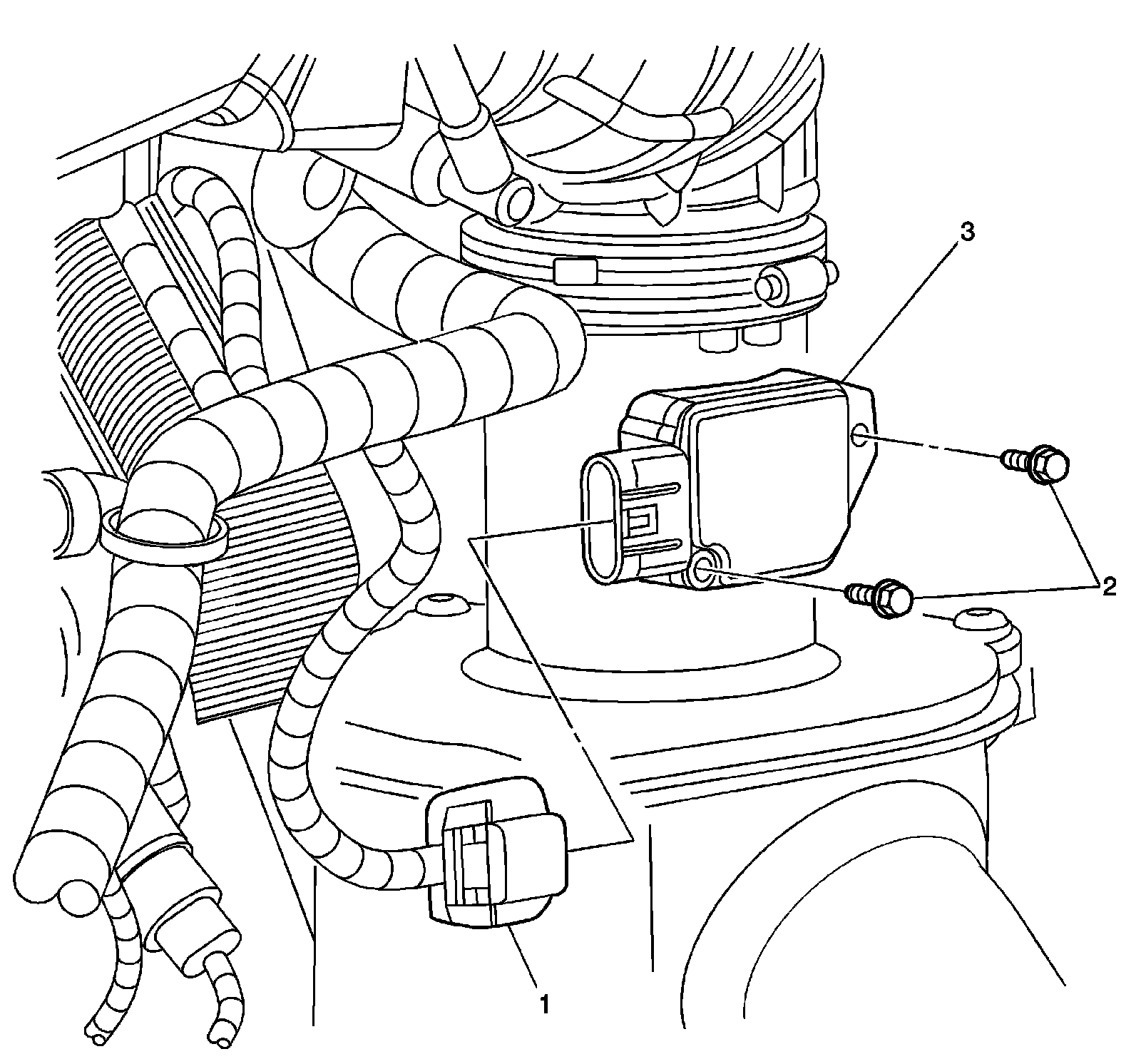

Intake Air Temperature (IAT) Sensor is part of the Mass Air Flow (MAF) Sensor and is in the air induction tube.

1. MAF/IAT Electrical Connector
2. MAF/IAT Sensor Screws
3. MAF/IAT Sensor
