ABS Schematics

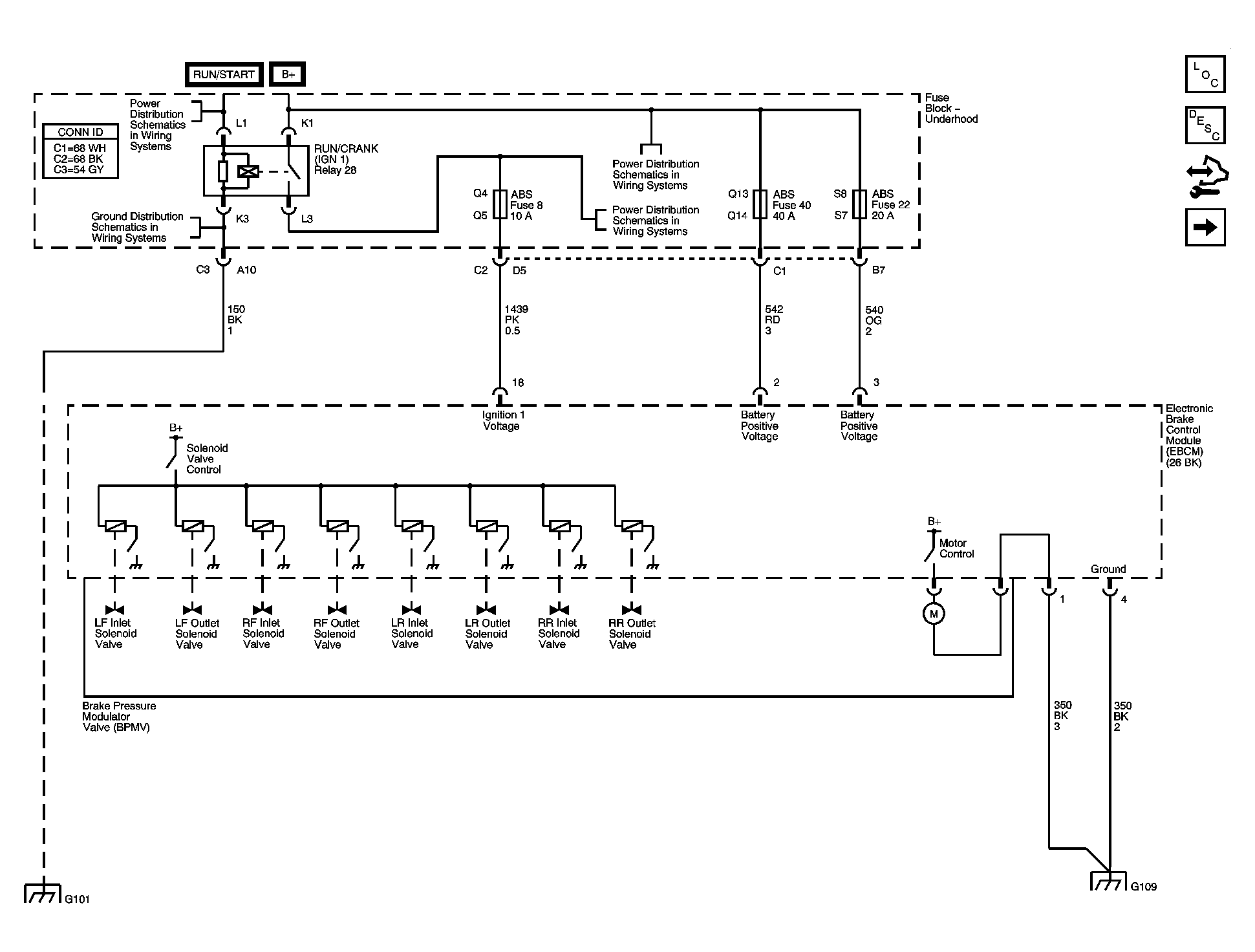

Fig 1: Power, Ground, and BPMV Controls Schematics
GM1434115Courtesy of GENERAL MOTORS CORP.

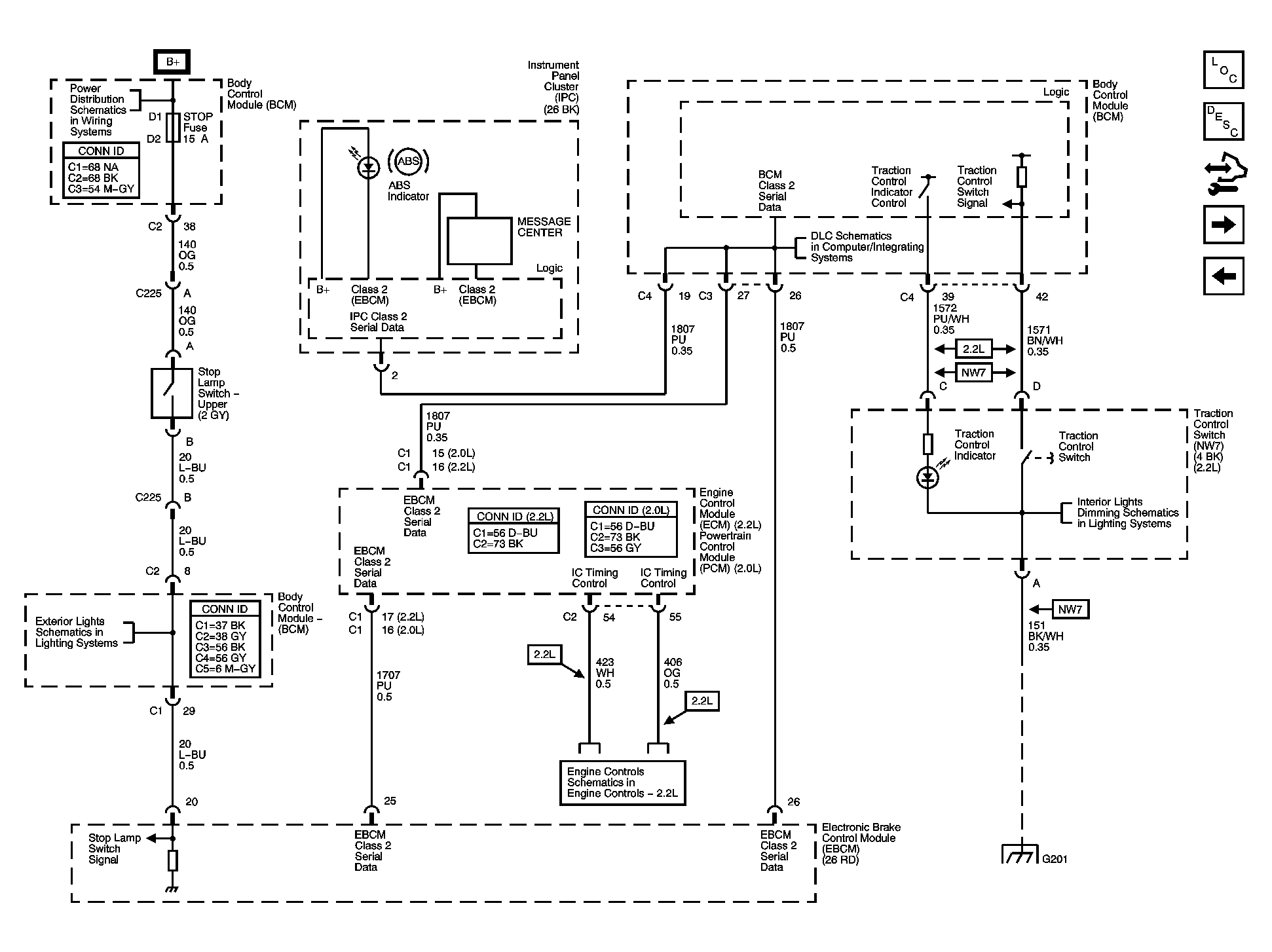

Fig 2: Traction Control, DLC, and Indicators Schematics
GM1434119Courtesy of GENERAL MOTORS CORP.

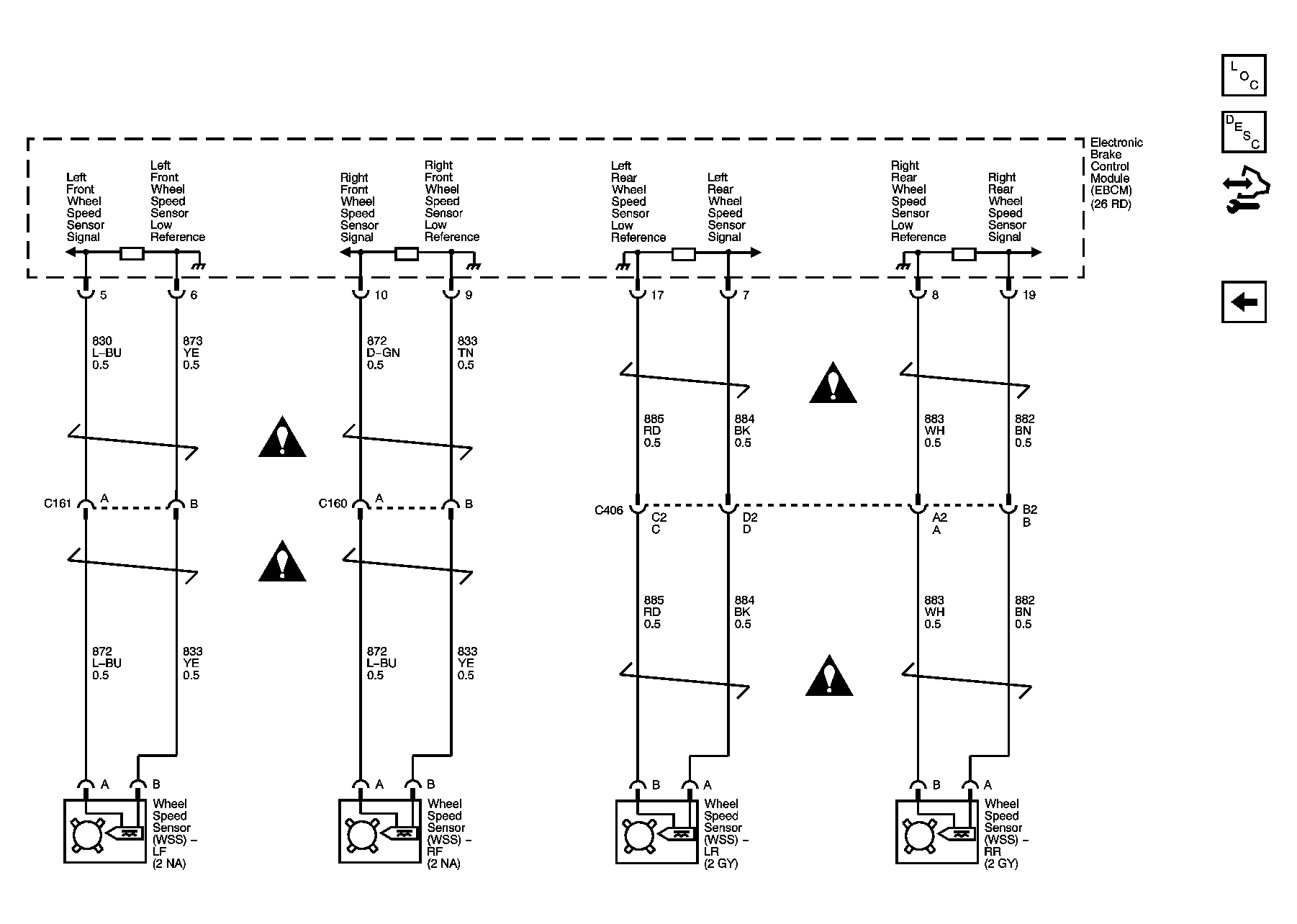

Fig 3: Wheel Speed Sensors Schematic
GM1470969Courtesy of GENERAL MOTORS CORP.
