Stationary Windows Connector End Views

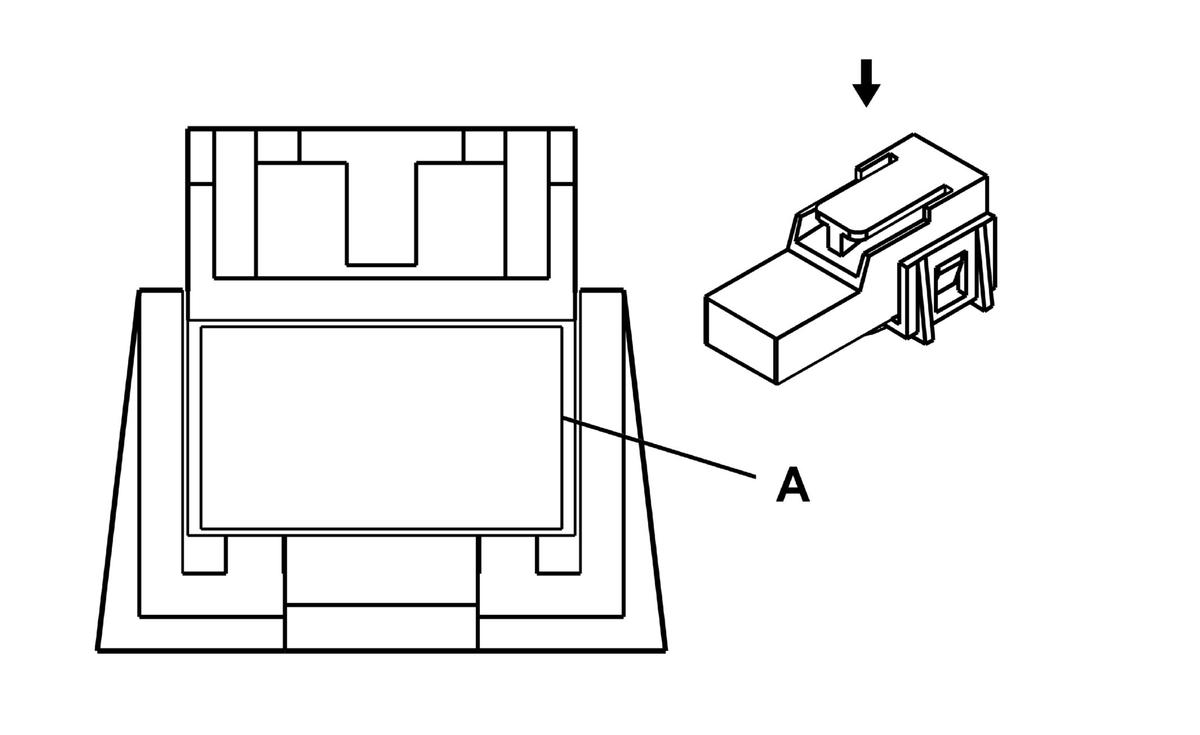

Rear Defogger Grid - C1

GM1279713Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092582
  • 1-Way F Positive Lock Recepticle 6.3 (BK)
Pin Wire Color Circuit No. Function
A PU 293 Rear Defog Element Supply Voltage
Rear Defogger Grid - C2

GM1279713Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092582
  • 1-Way F Positive Lock Receptacle 6.3 (BK)
Pin Wire Color Circuit No. Function
A BK 750 Ground
