ABS Schematics

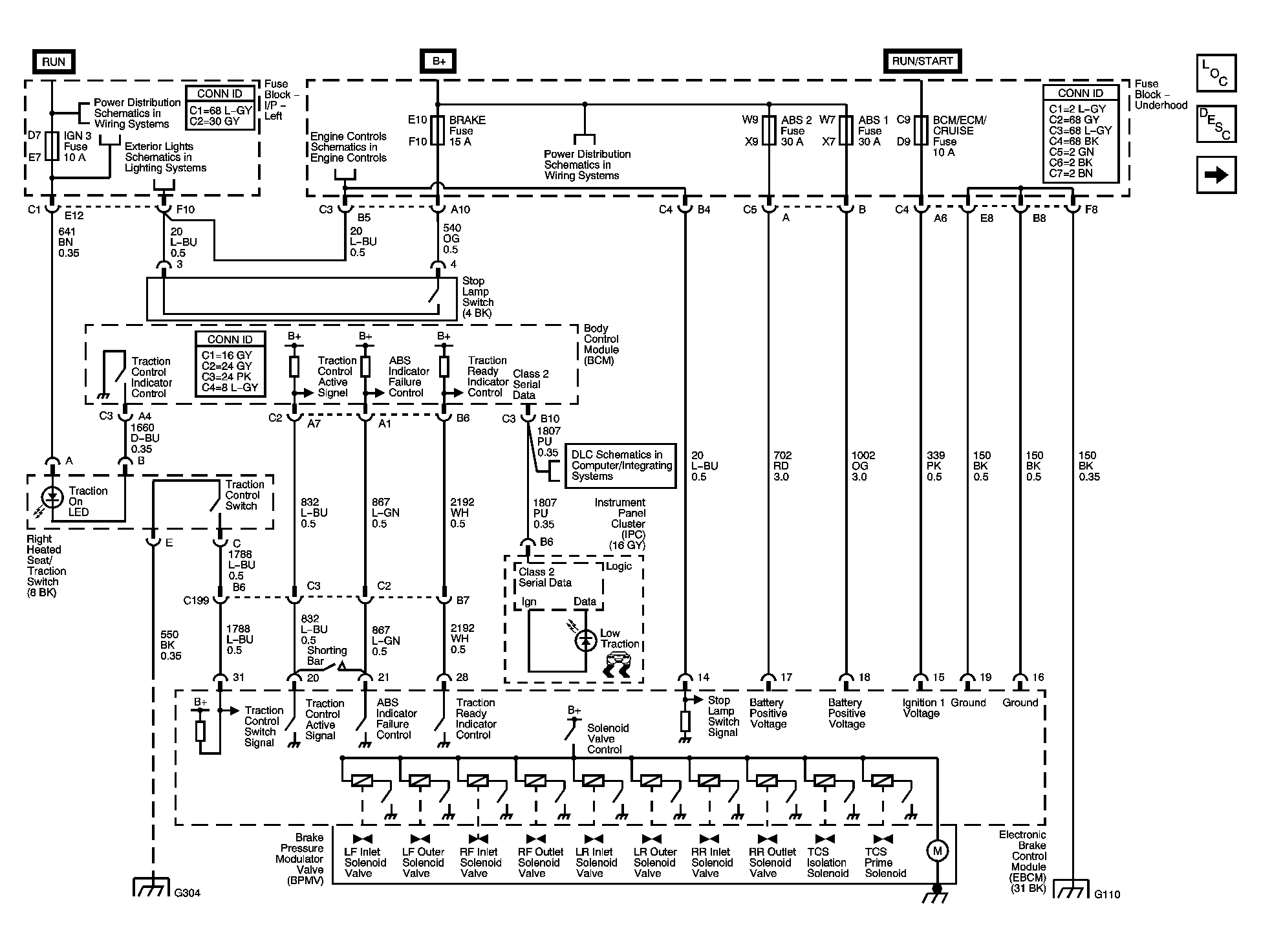

Fig 1: EBCM Power, Ground, Serial Data, and Switches
GM1467889Courtesy of GENERAL MOTORS CORP.

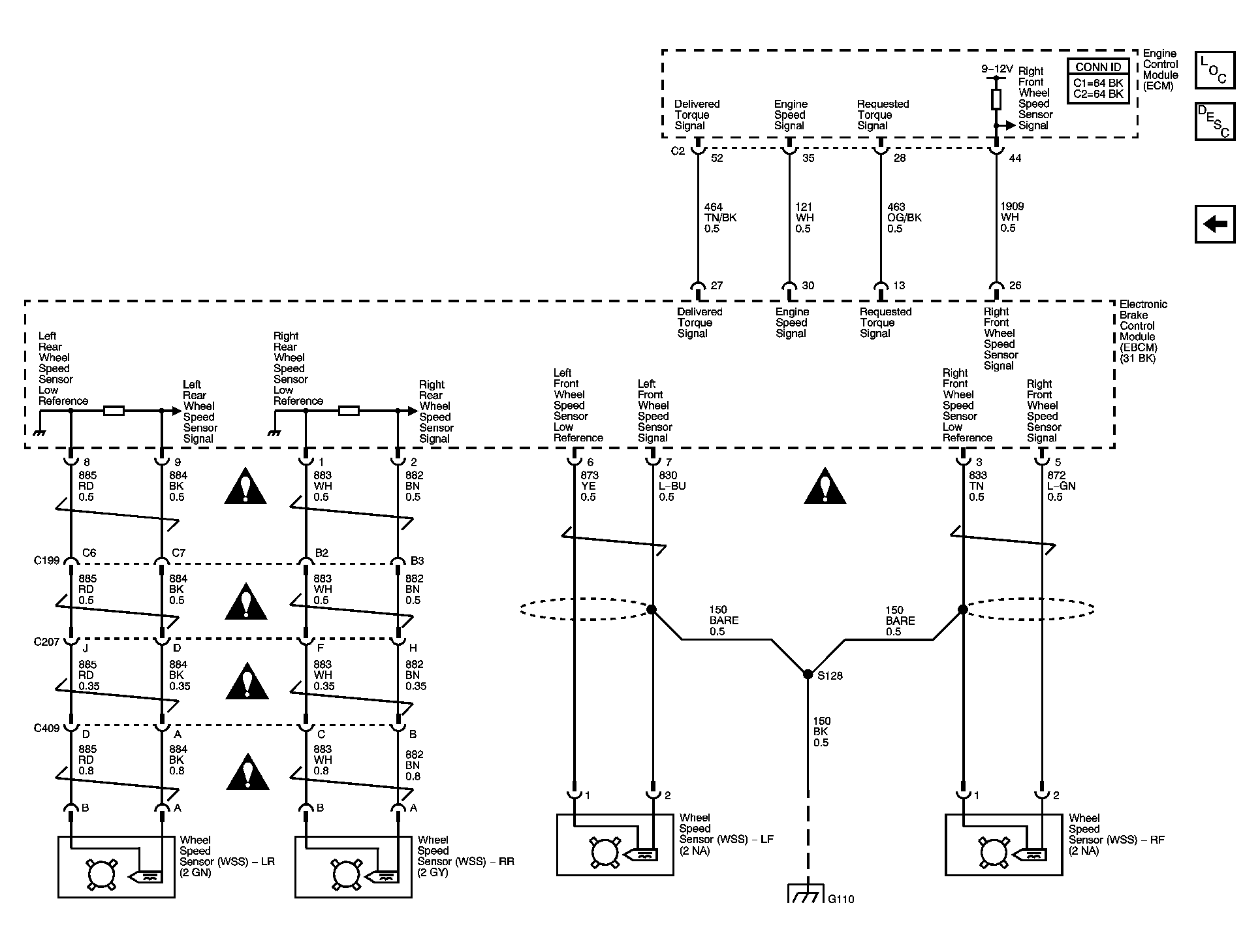

Fig 2: Wheel Speed Sensors
GM1485487Courtesy of GENERAL MOTORS CORP.
