DTC P0455: EVAP System Large Leak Detected: Notes

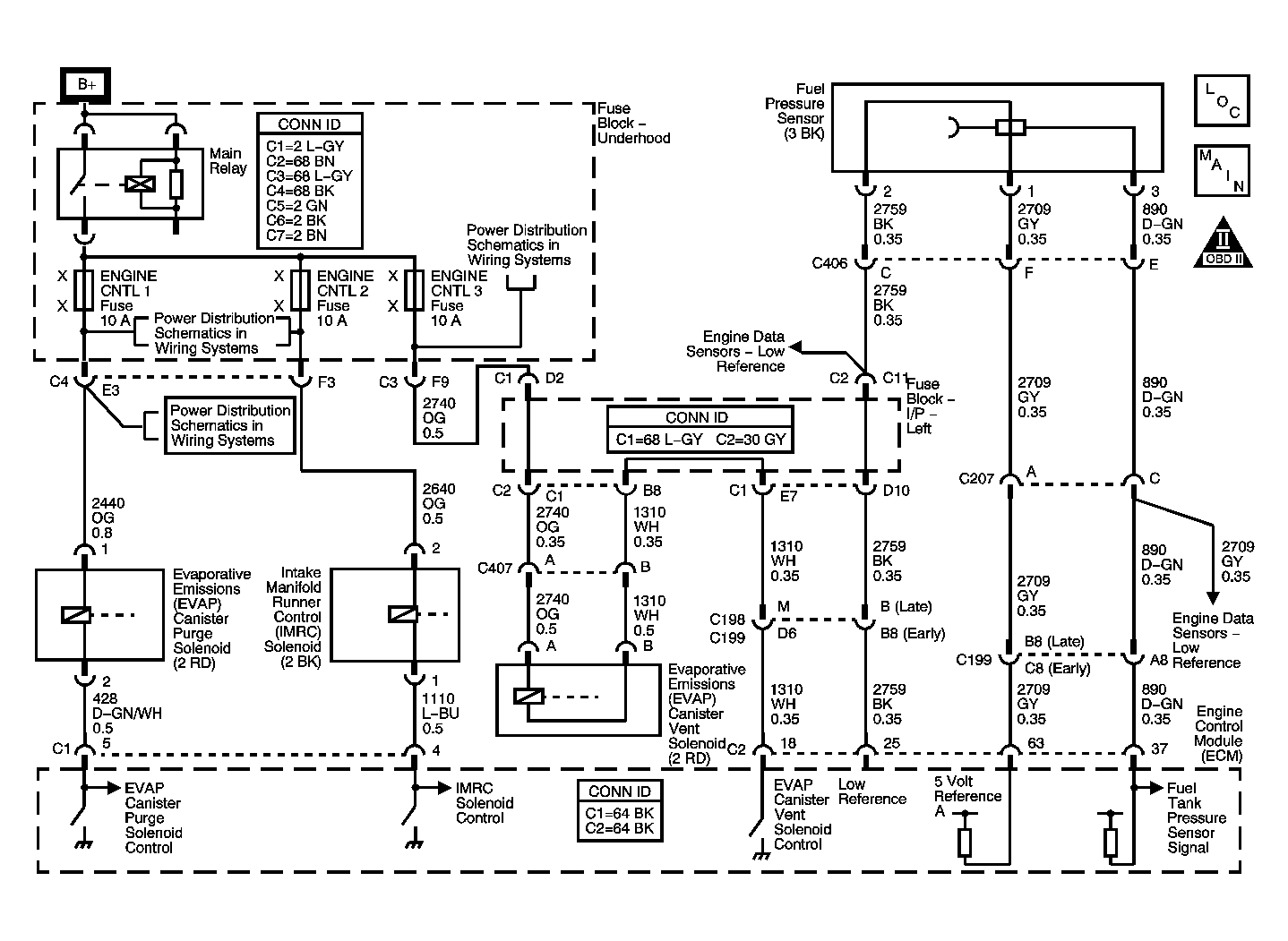

Fig 1: Evaporative Emission (EVAP) System Control Circuit Wiring Schematic
GM1247692Courtesy of GENERAL MOTORS CORP.
