Entertainment Component Views

WARNING: This page is about a different car, the 2004 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Entertainment Component Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - I/P - Right
2	Speaker - RF (Woofer)
3	Speaker - RF (Tweeter)
4	Radio
5	Speaker - RR
6	Speaker - Subwoofer
7	Speaker - LR
8	Speaker - LF (Tweeter)
9	Speaker - LF (Woofer)
10	Fuse Block - I/P - Left
11	Audio Amplifier
12	Fuse Block - Underhood

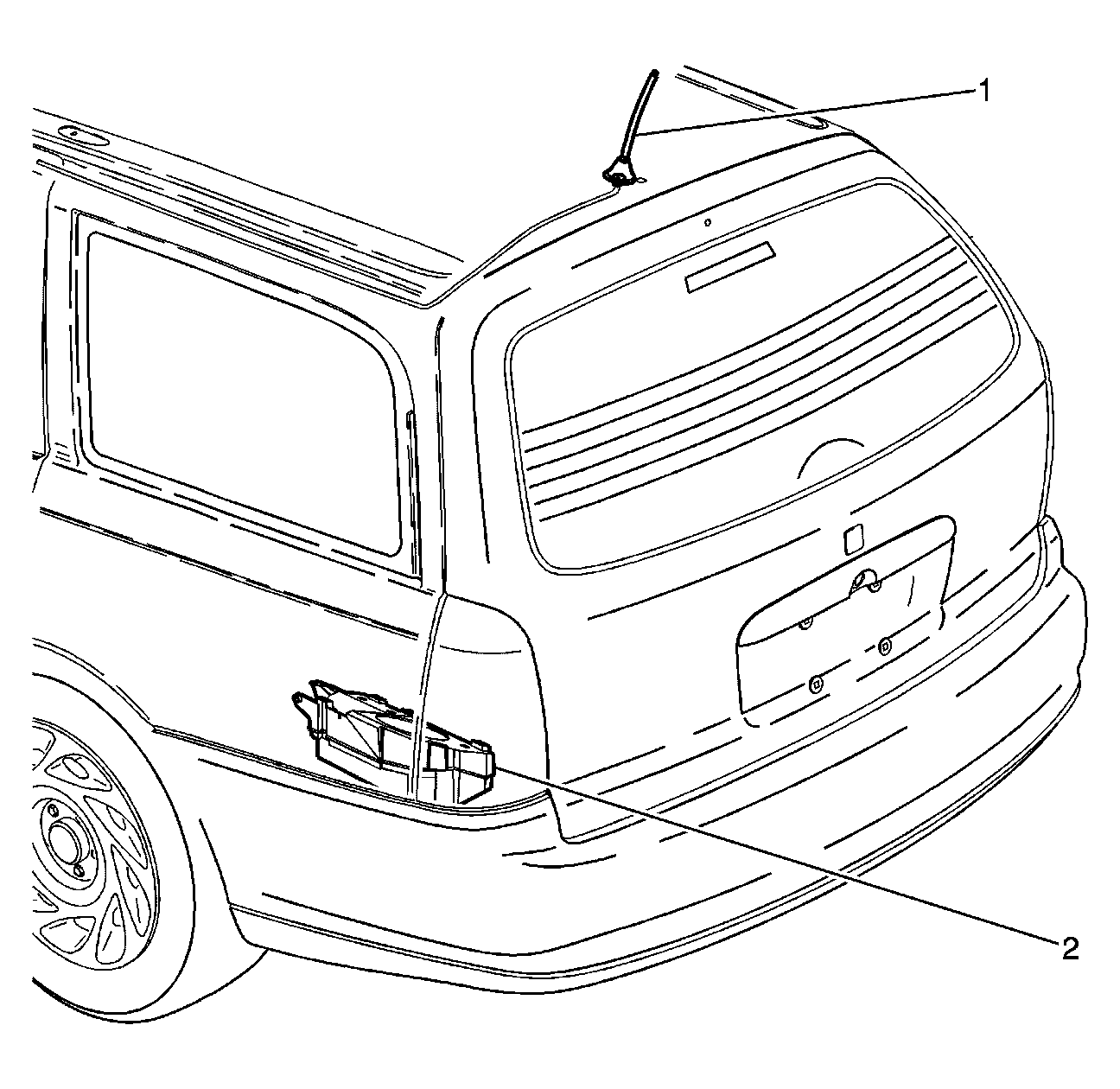

Fig 2: Identifying Entertainment Component Locations (Wagon)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Antenna
2	Speaker - Subwoofer

Fig 3: Identifying Instrument Panel Component Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Windshield Wiper/Washer Switch
3	Left Heated Seat/Fog Lamp Switch
4	Hazard Switch
5	Right Heated Seat/Traction Switch
6	Radio
7	HVAC Control Module
8	Headlamp/Turn Signal Switch
9	Dimmer/Rear Compartment Lid Release Switch
10	Instrument Panel Cluster (IPC)
11	Ignition Lock Cylinder Solenoid

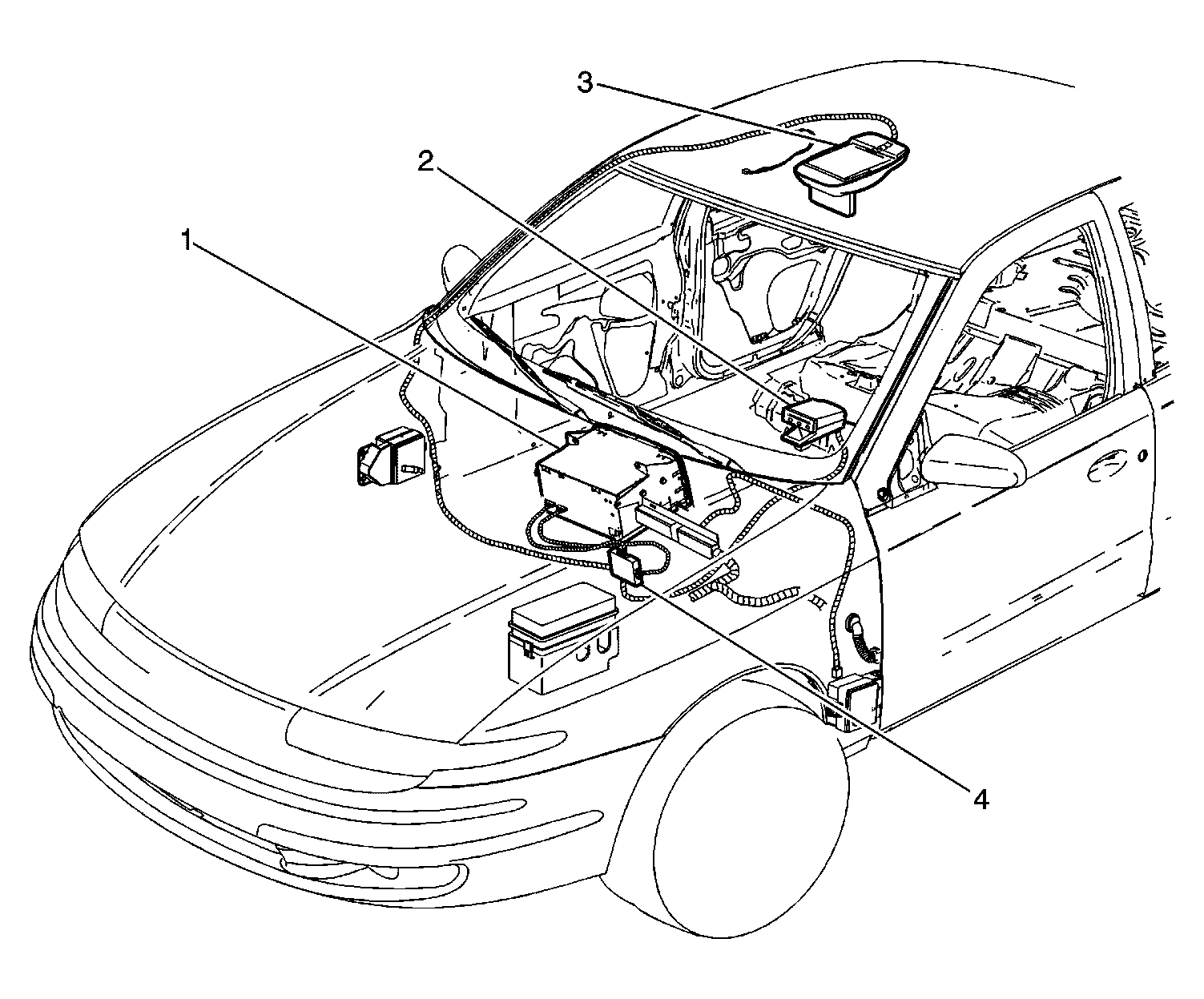

Fig 4: Identifying Video System Component Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	DVD Player
3	Overhead Console - VES
4	Audio/Video Interface (AVI) Module
