Automatic Transmission Controls Schematics

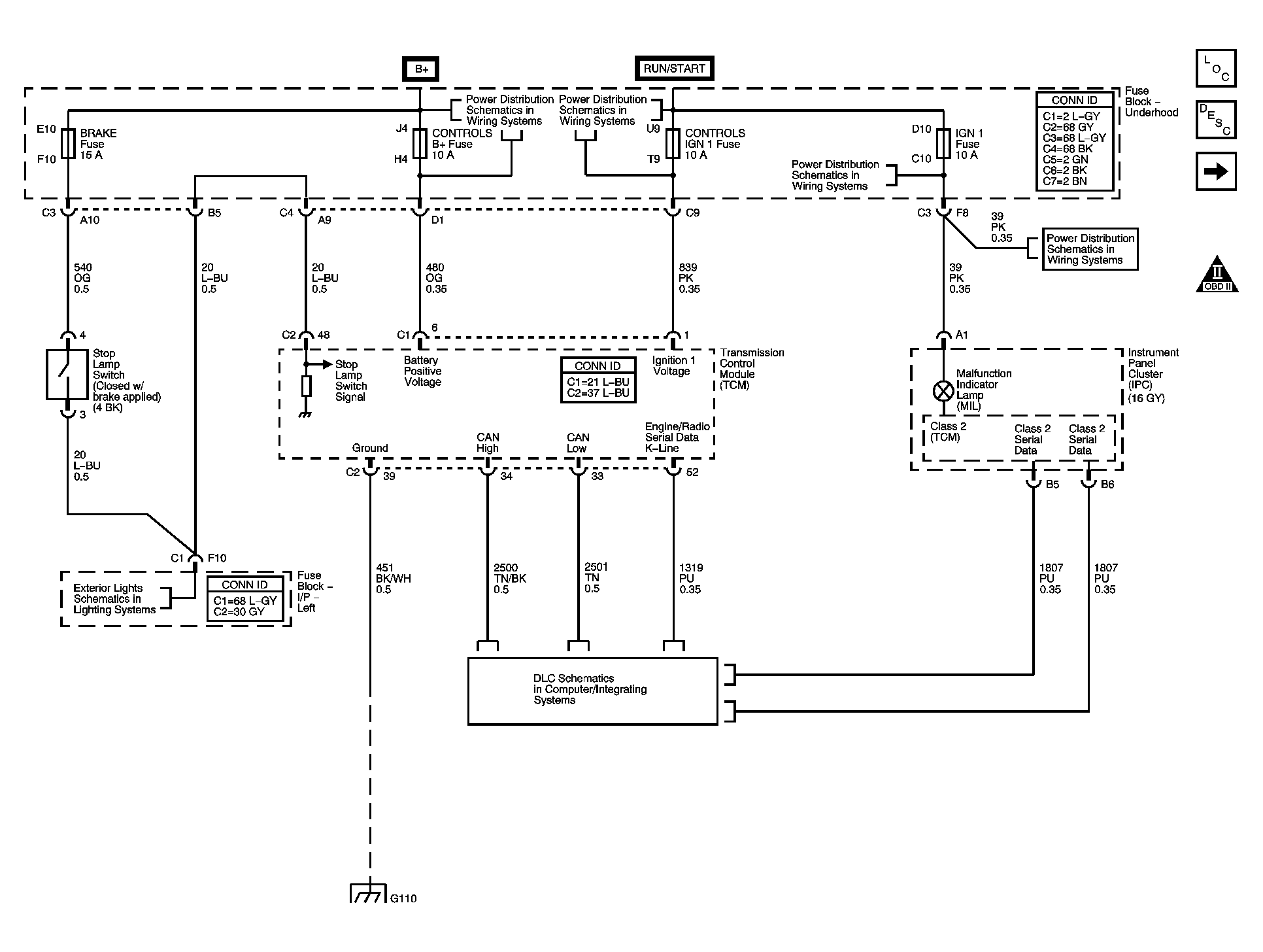

Fig 1: TCM Power, Ground, MIL and Stop Lamp Switch
GM1467880Courtesy of GENERAL MOTORS CORP.

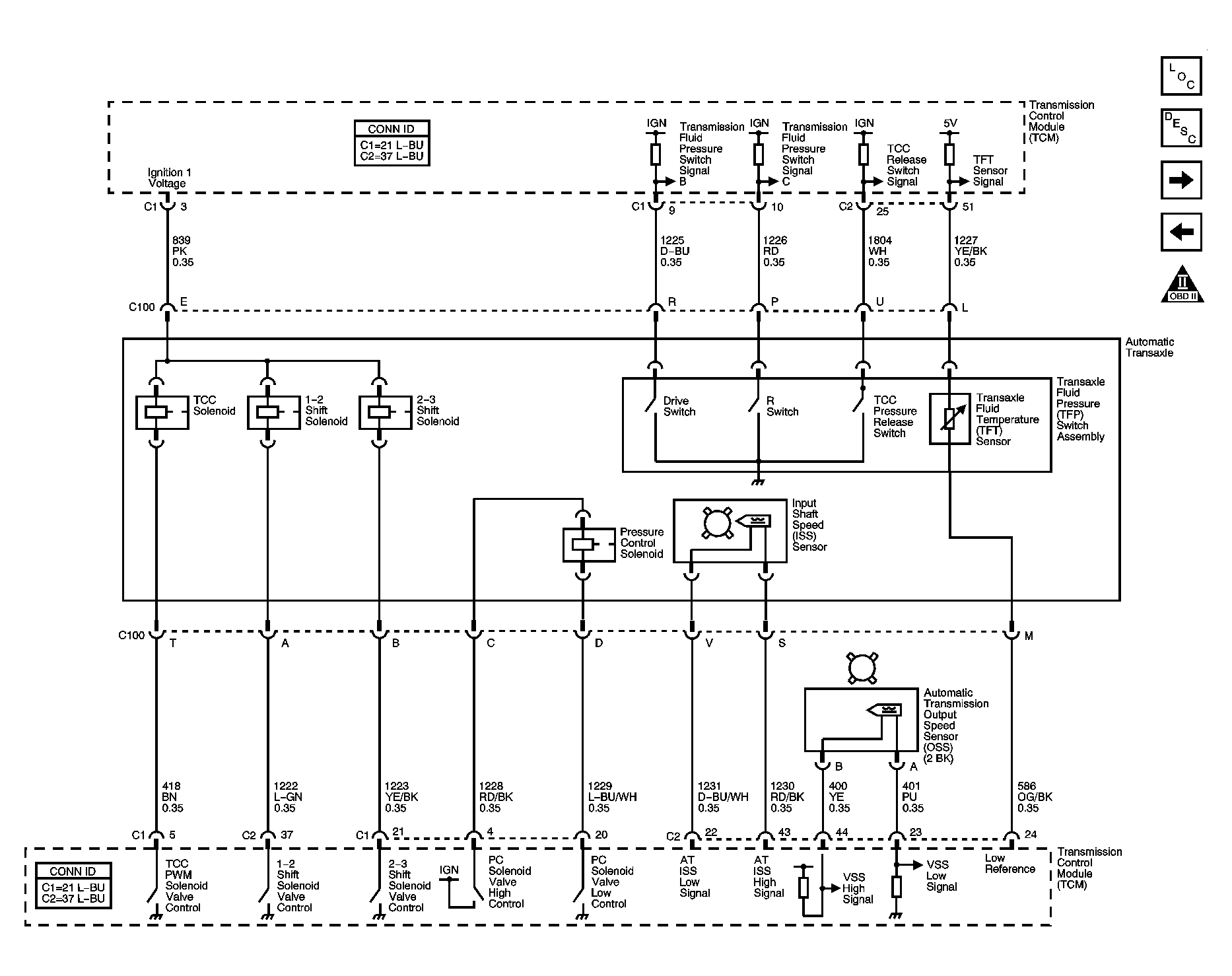

Fig 2: Sensors & Solenoids
GM1254471Courtesy of GENERAL MOTORS CORP.

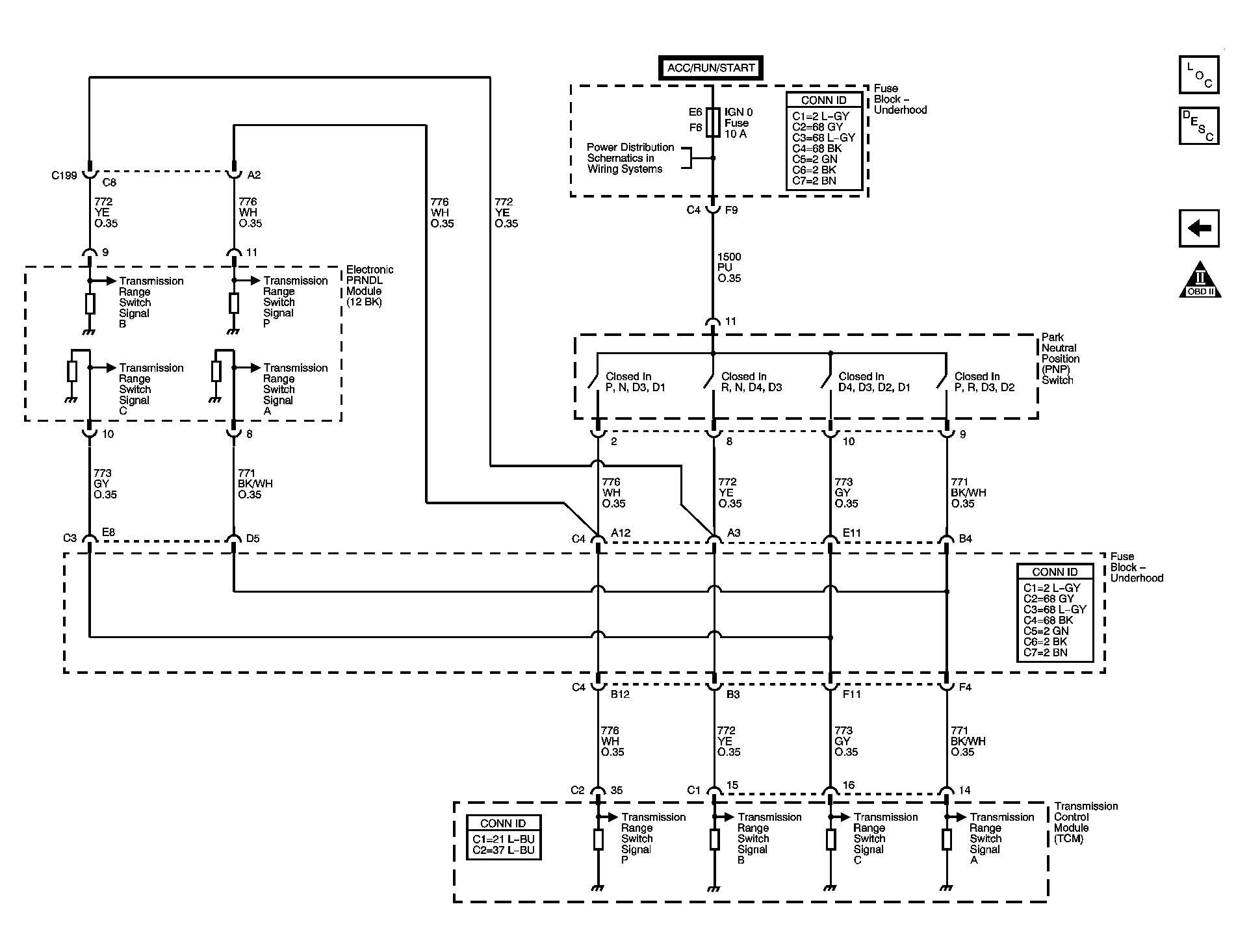

Fig 3: PNP Switch & PRNDL
GM1254480Courtesy of GENERAL MOTORS CORP.
