Power Seat Control Module: Diagrams

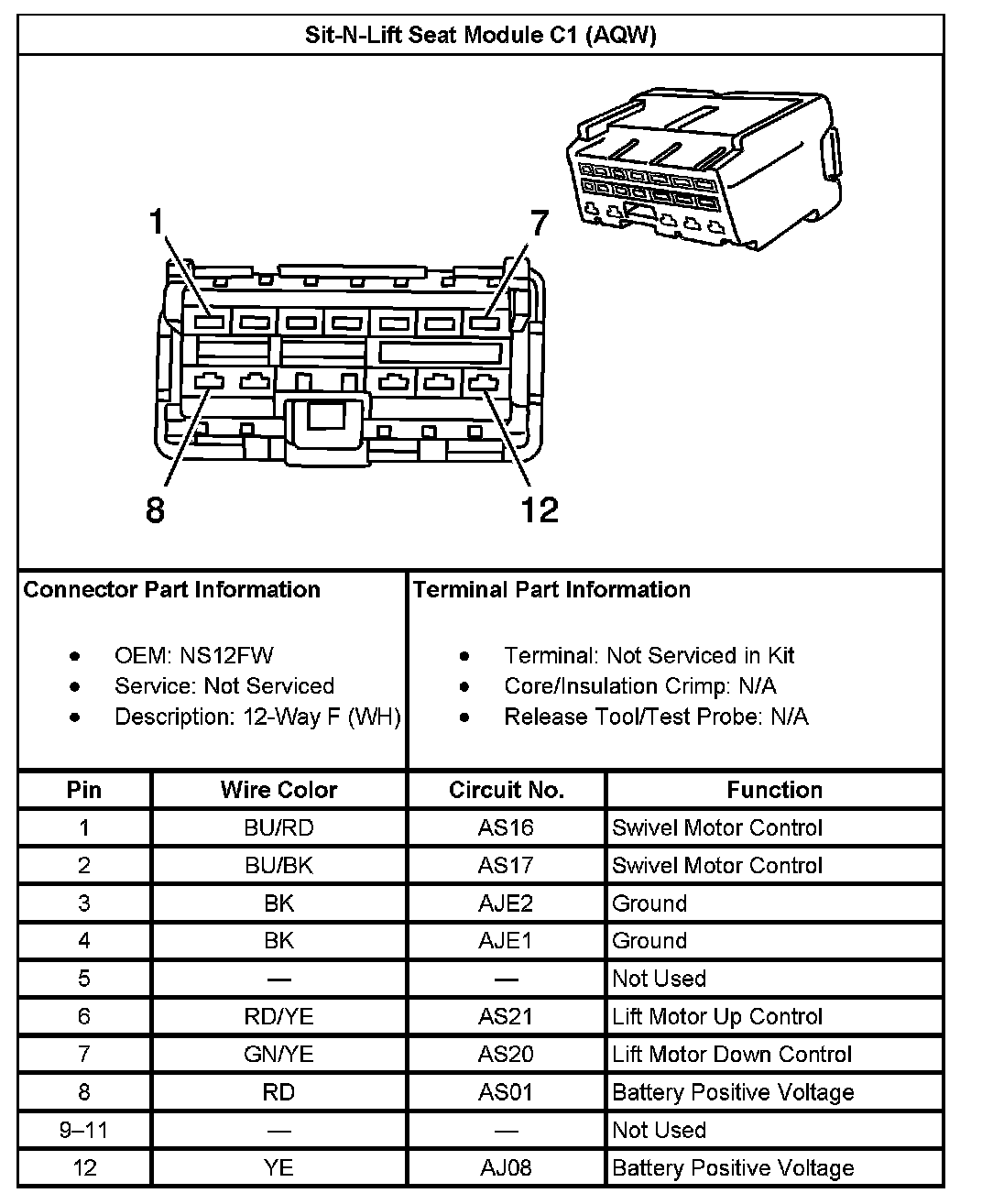

Sit-N-Lift Seat Module C1 (AQW):

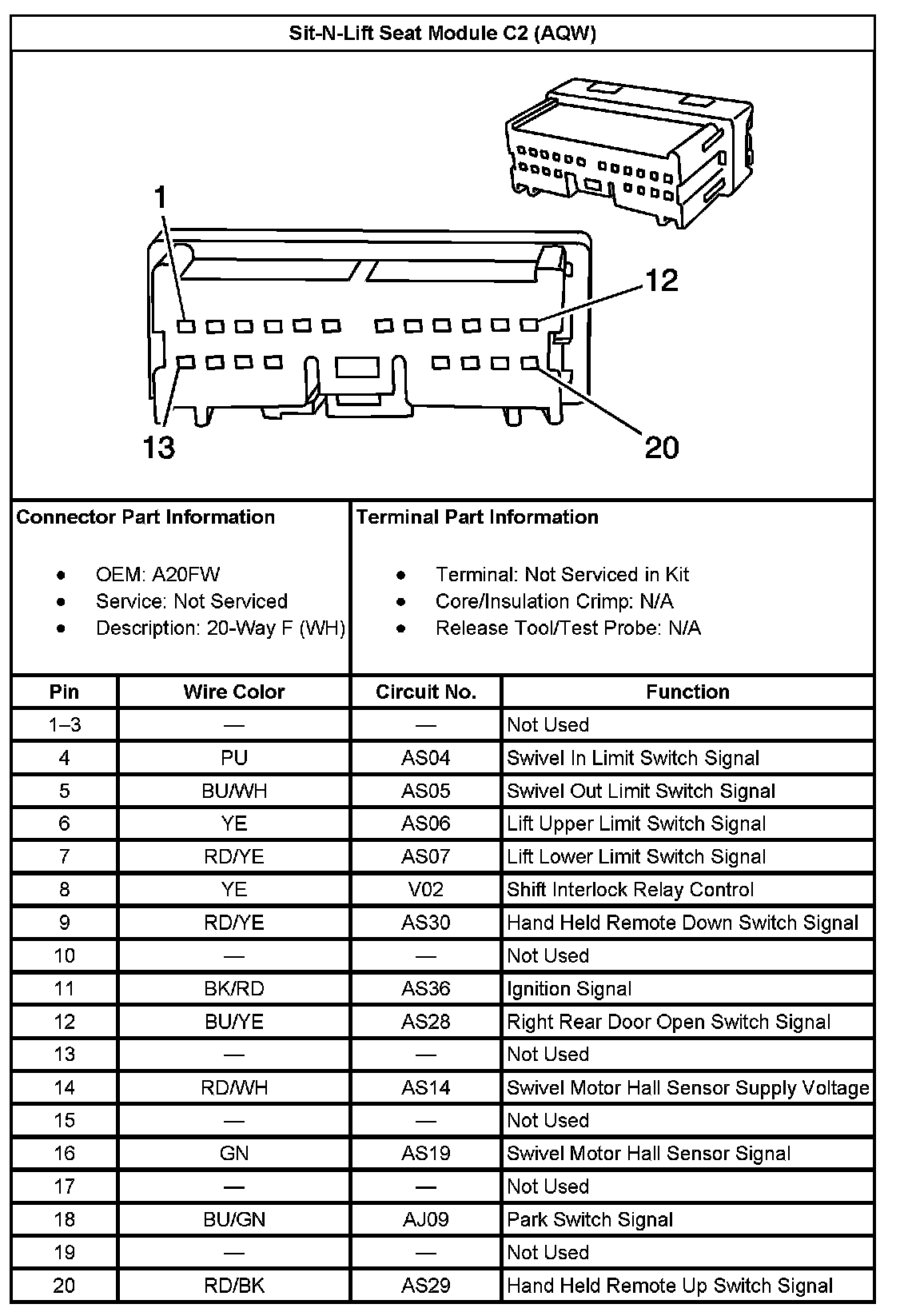

Sit-N-Lift Seat Module C2 (AQW):
