Removal Procedure

  1. Open and support the hood.
    2. Fig 1: Removing/Installing Wiper Arm
    GM1480118Courtesy of GENERAL MOTORS CORP.
  2. Remove the driver side wiper arm (2). Refer to Wiper Arm Replacement (Driver Side)  or Wiper Arm Replacement (Passenger Side) .
    3. Fig 2: Removing/Installing Passenger Side Wiper Arm
    GM1480119Courtesy of GENERAL MOTORS CORP.
  3. Remove the passenger side wiper arm (3). Refer to Wiper Arm Replacement (Driver Side)  or Wiper Arm Replacement (Passenger Side) .
  4. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Chevrolet) or Air Inlet Grille Panel Replacement (Pontiac) or Air Inlet Grille Panel Replacement (Buick) in Body Front End.
  5. Lower the washer container into the engine compartment. Refer to Washer Solvent Container Replacement .
    6. Fig 3: Disconnecting/Reconnecting Wiper Motor Connector
    GM1501847Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the electrical connector (2) from the wiper motor (1).
    7. Fig 4: Removing/Installing Wiper Module
    GM1480117Courtesy of GENERAL MOTORS CORP.
  7. Remove the 4 bolts, as shown, from the wiper module (5).

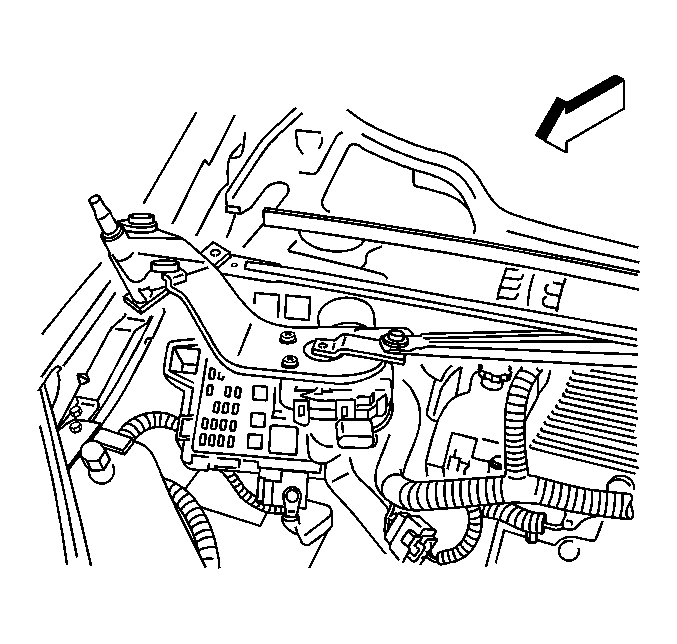

    8. Fig 5: Positioning Wiper Module Assembly
    GM1527641Courtesy of GENERAL MOTORS CORP.
  8. Carefully guide the passenger side module out first from the opening in the front plenum.
  9. Pull the module from the drive side fender flange opening.
  10. Remove the module from the vehicle.
