Removal Procedure

  1. Remove the right rear quarter lower trim panel. Refer to Trim Panel Replacement - Rear Quarter (Right) or Trim Panel Replacement - Rear Quarter (Left) in Interior Trim.

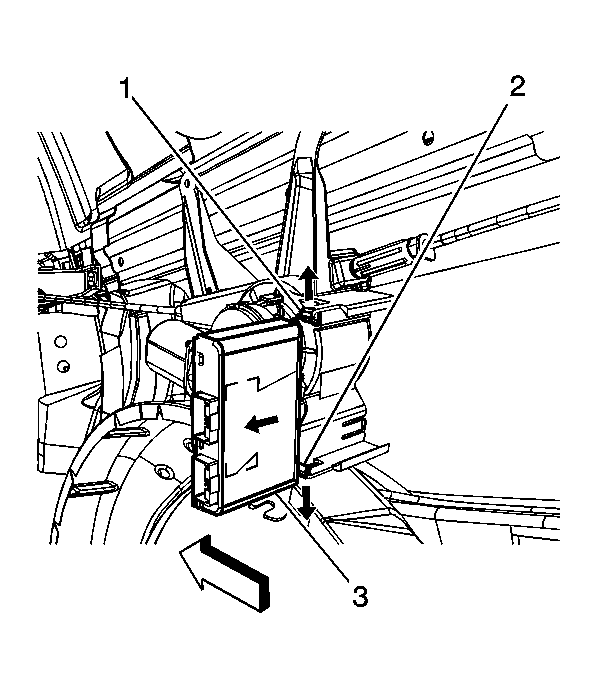

    2. Fig 1: Removing/Installing Power Sliding Door (PSD) Actuator Control Module Connector
    GM1563030Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors from the power sliding door (PSD) actuator control module.
  3. Release the integral clips (1, 2) securing the actuator module (3) at the rear motor bracket.
  4. Pull the PSD actuator control module (3) inboard in order to release the control module from the actuator motor bracket.
