Door Lock/Indicator Schematics

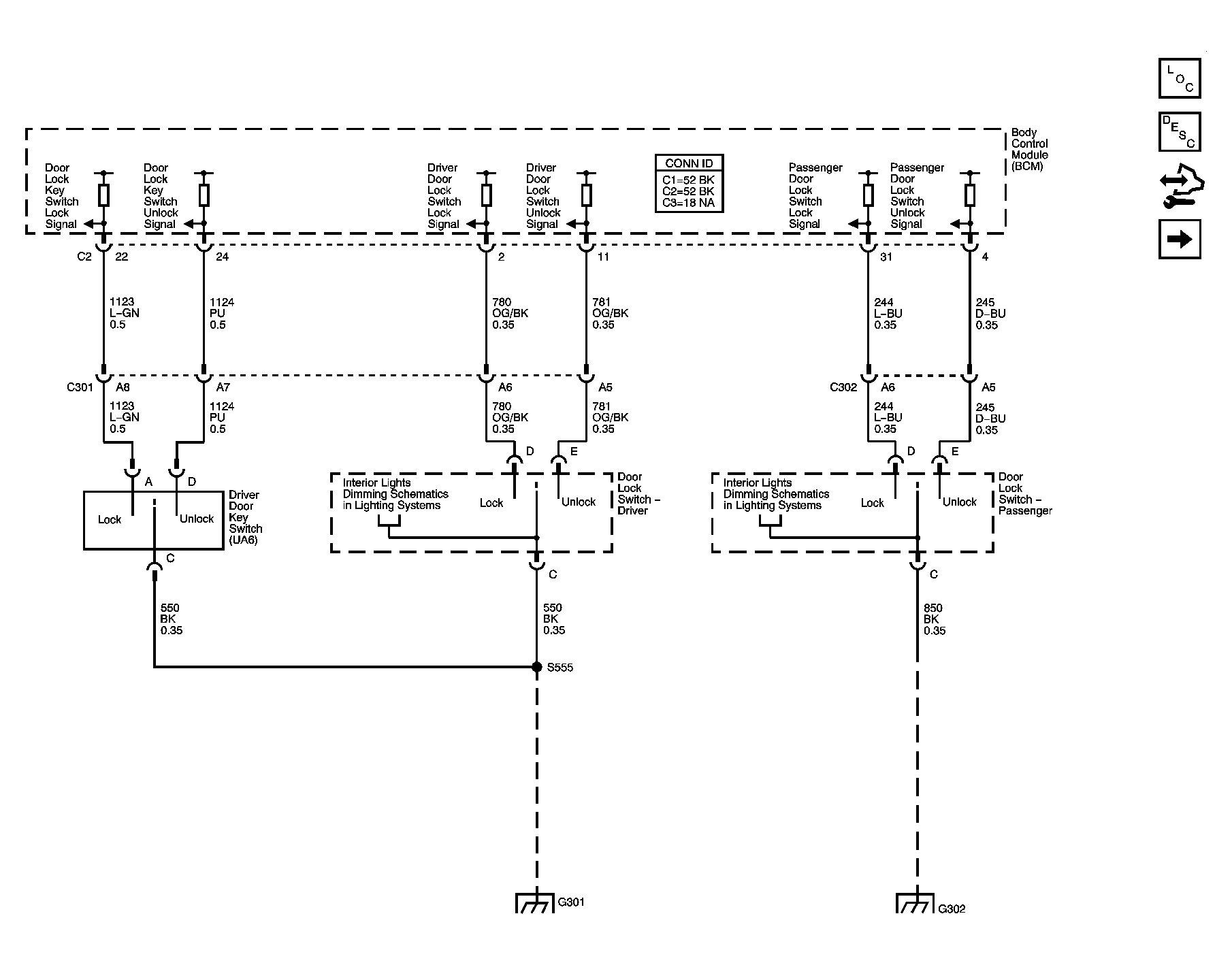

Fig 1: Door Lock/Indicator Switches Schematic
GM1496227Courtesy of GENERAL MOTORS CORP.

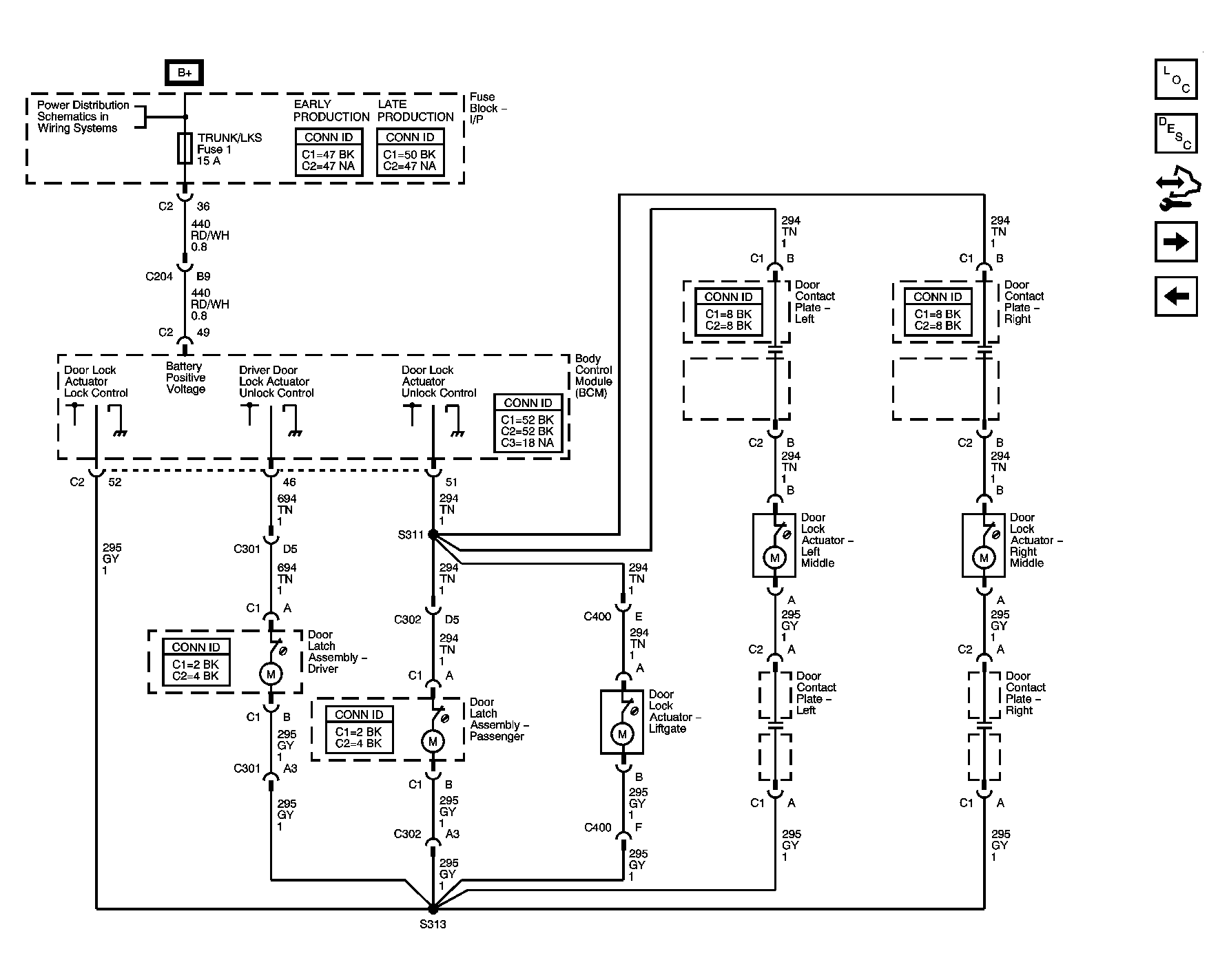

Fig 2: Actuators Schematic
GM1496260Courtesy of GENERAL MOTORS CORP.

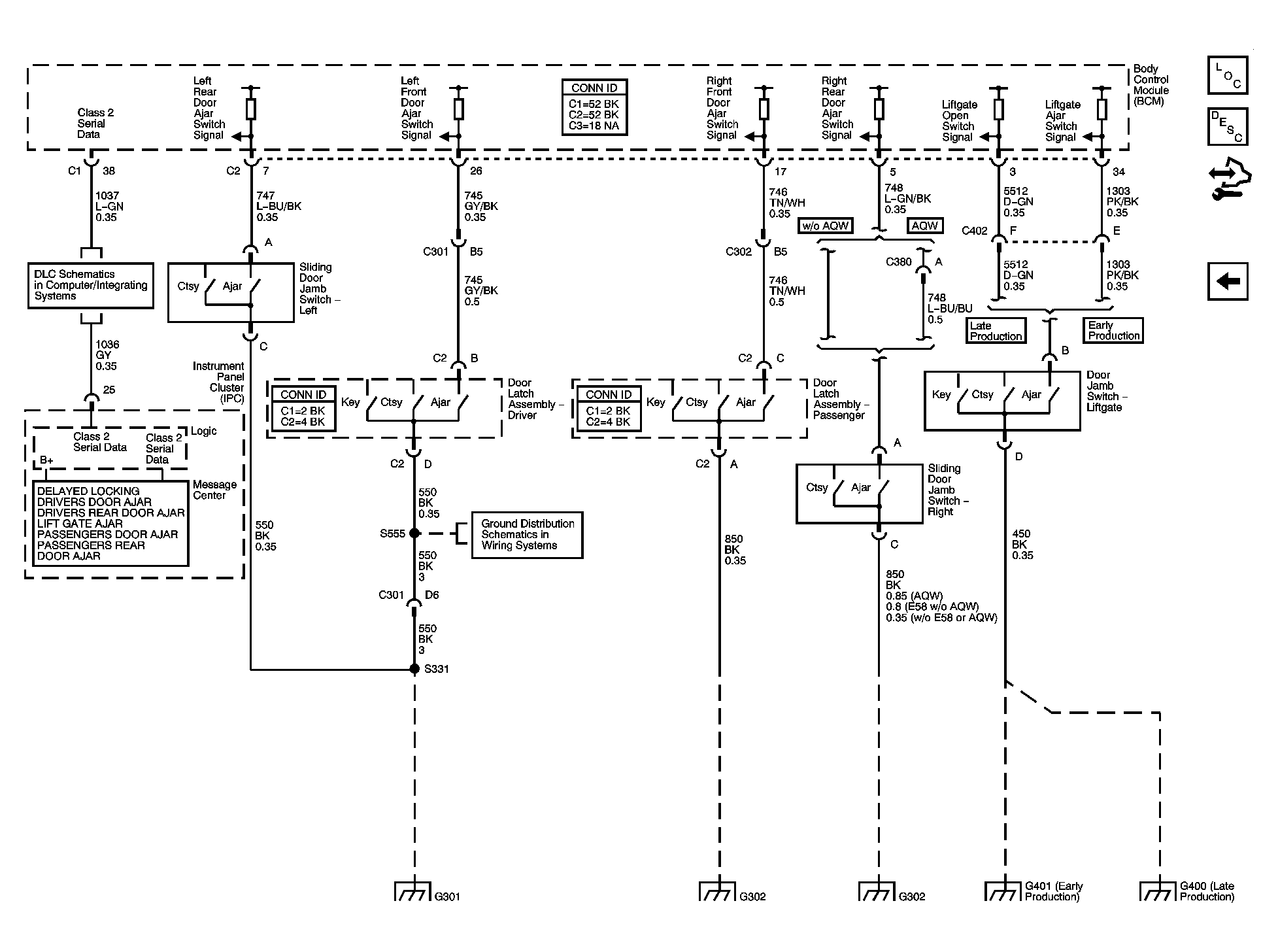

Fig 3: Indicators Schematic
GM1500604Courtesy of GENERAL MOTORS CORP.
