Outside Mirror Schematics

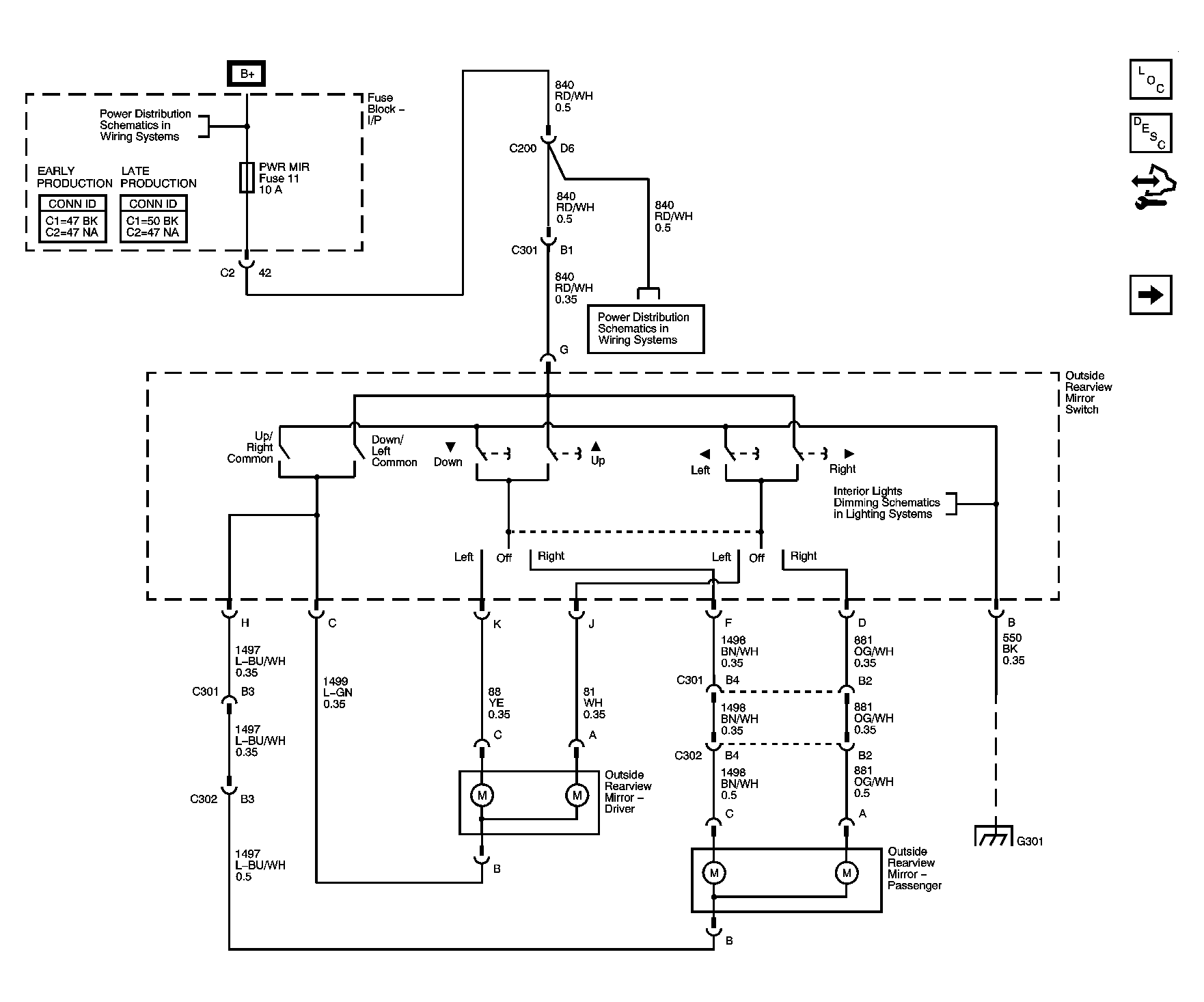

Fig 1: Power Mirrors Schematic
GM1496264Courtesy of GENERAL MOTORS CORP.

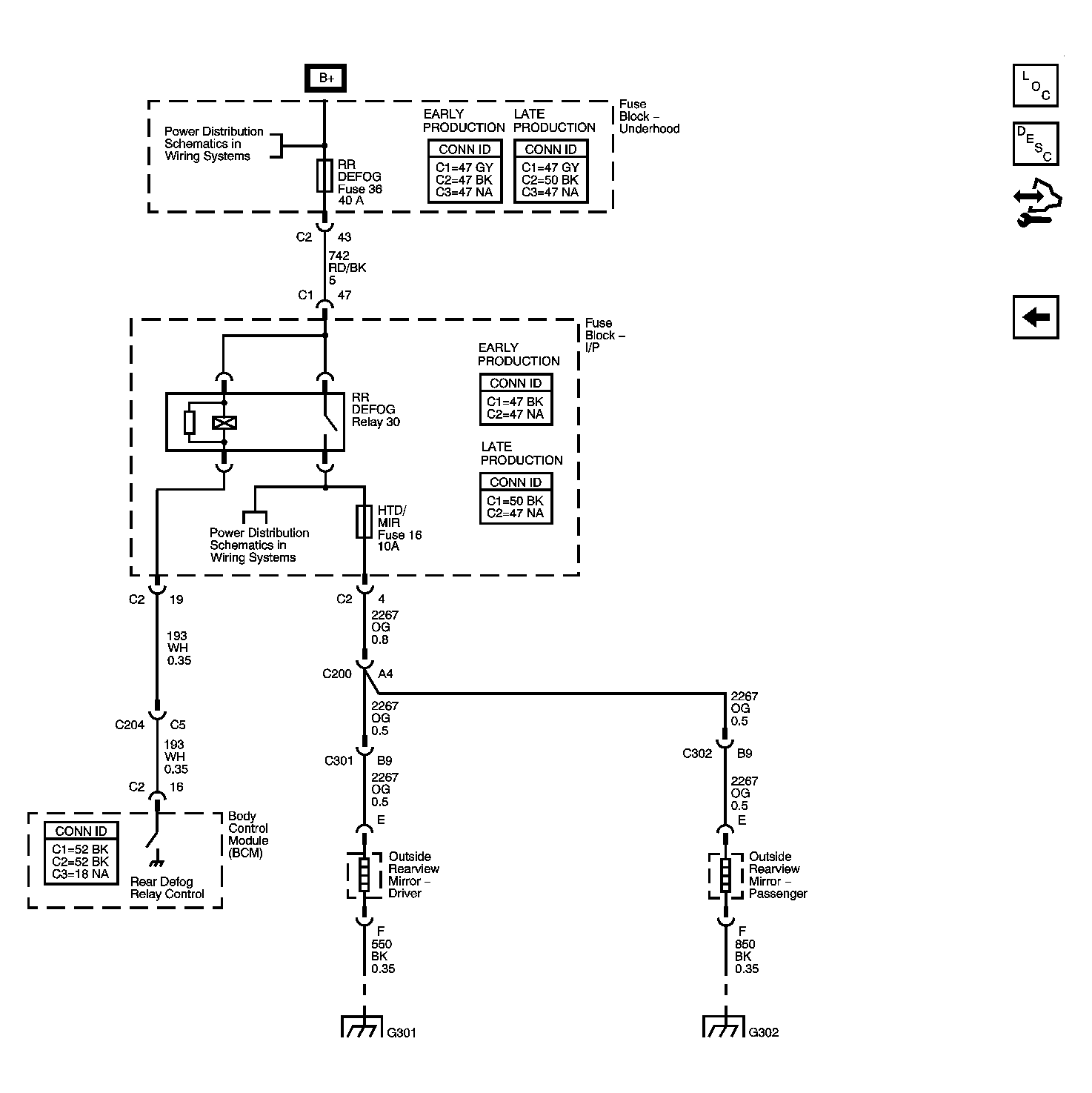

Fig 2: Heated Mirrors Schematic
GM1496316Courtesy of GENERAL MOTORS CORP.
