ABS Component Views

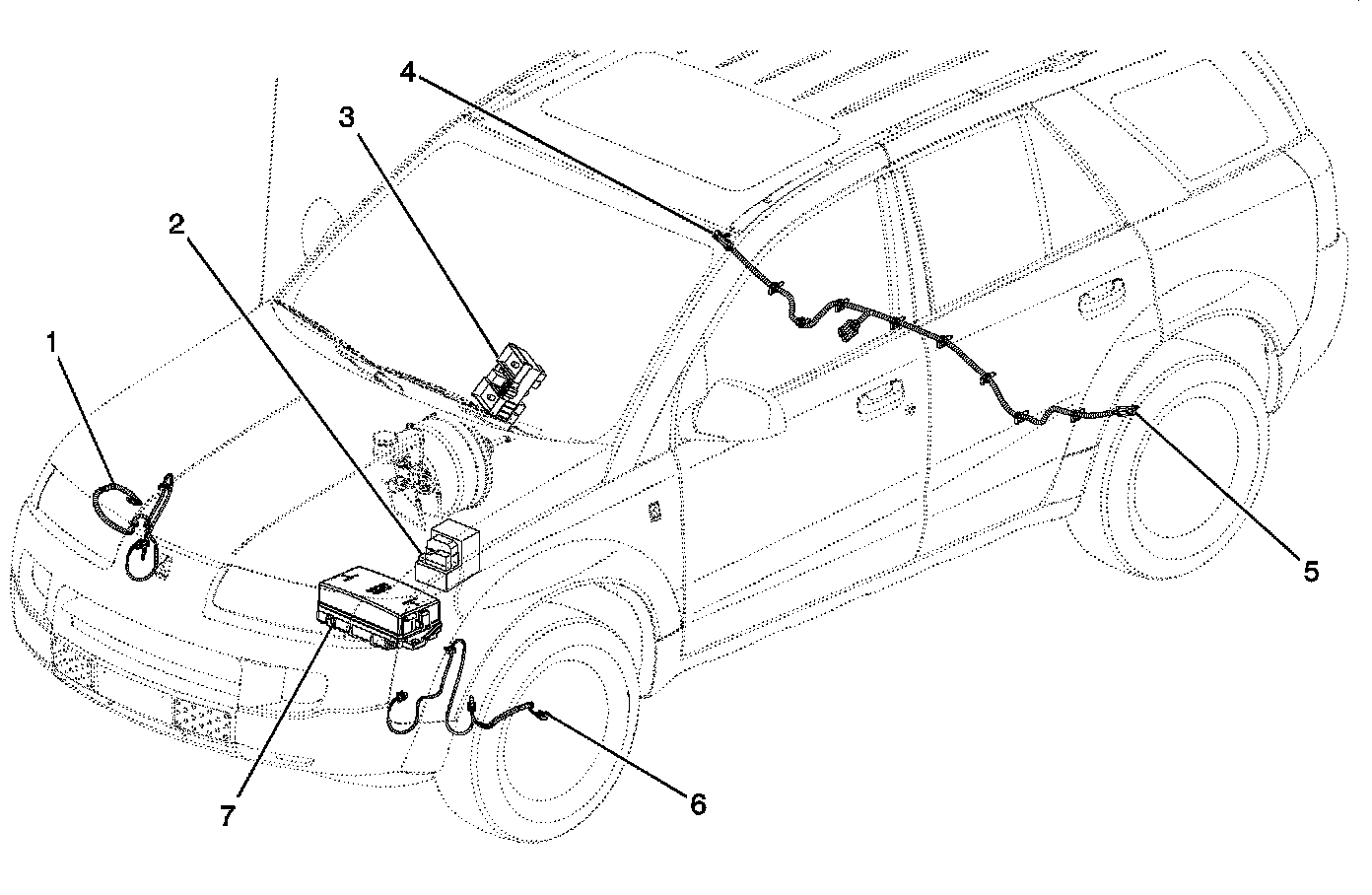

ABS Component Views





1 - Wheel Speed Sensor (WSS) - RF
2 - Electronic Brake Control Module (EBCM)
3 - Fuse Block - I/P
4 - Wheel Speed Sensor (WSS) - RR
5 - Wheel Speed Sensor (WSS) - LR
6 - Wheel Speed Sensor (WSS) - LF
7 - Fuse Block - Underhood
