Installation Procedure

  1. Install the air cleaner assembly into position.

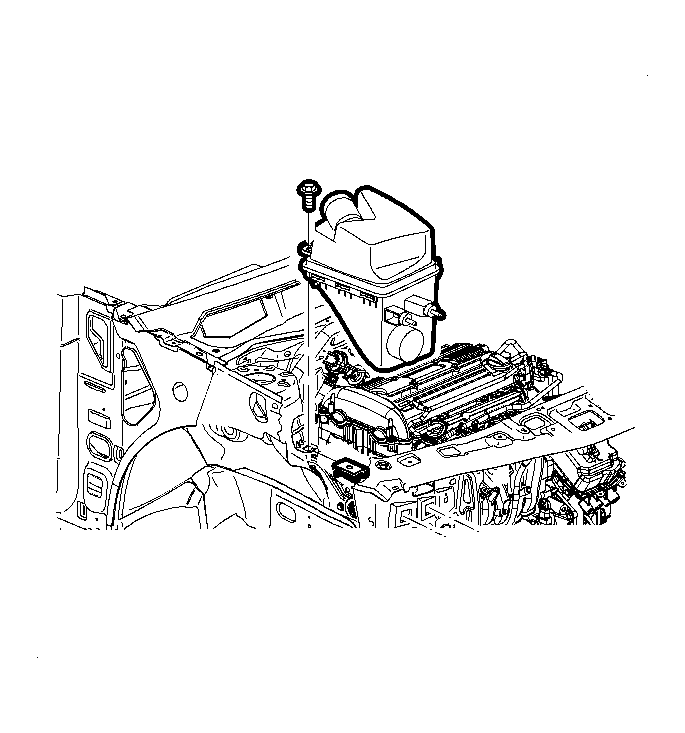

    Fig 1: View Of Air Cleaner Assembly
    GM927717Courtesy of GENERAL MOTORS CORP.
  2. Install the air cleaner attachment bolt.

    Tighten:  Tighten the air cleaner-to-support bracket bolt 4 cylinder to 10 N.m (89 lb. in.).

  3. Position the outlet resonator/duct assembly.
  4. Connect the PCV fresh air vent hose assembly.
  5. Tighten the clamp at throttle body assembly.
    Fig 2: Identifying Outlet Resonator/Duct Assembly
    GM898897Courtesy of GENERAL MOTORS CORP.
  6. Position outlet resonator/duct assembly up with support bracket and install push-pin.
  7. Tighten the clamp at the air cleaner assembly.
  8. Connect the intake air temperature (IAT) sensor connector.
    Fig 3: Connecting Intake Air Temperature (IAT) Sensor Connector
    GM951542Courtesy of GENERAL MOTORS CORP.
