Installation Procedure

Install the air filter assembly.

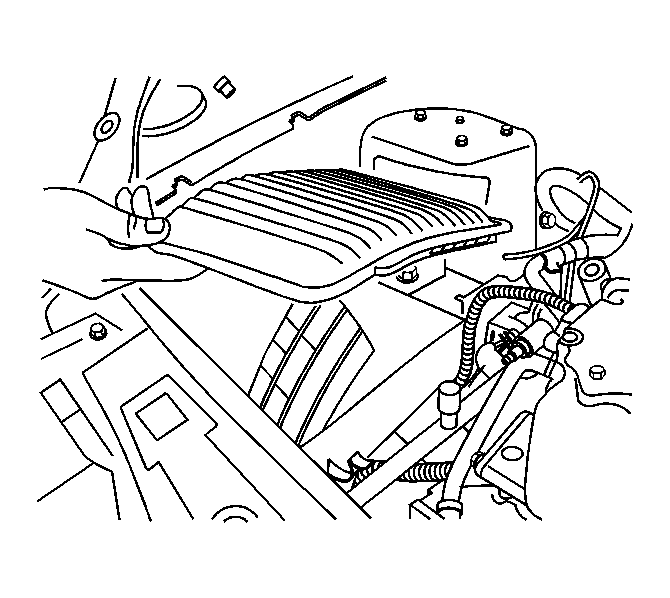

Fig 1: View Of Air Filter Assembly
Courtesy of GENERAL MOTORS CORP.
Install the air cleaner assembly lid into position.
Fasten the clips into position inside of the air cleaner.

Fig 2: View Of Filter Element & Air Cleaner Assembly
Courtesy of GENERAL MOTORS CORP.
Install the outlet resonator/duct assembly into position. Refer to Air Cleaner Resonator Outlet Duct Replacement .

NOTE: Refer to Fastener Notice in Cautions and Notices.

Fig 3: View Of Air Cleaner Element

Courtesy of GENERAL MOTORS CORP.

Tighten the clamp at the air cleaner assembly.
Tighten: Tighten the clamp to 4 N.m (35 lb. in.).
