Fuse Block

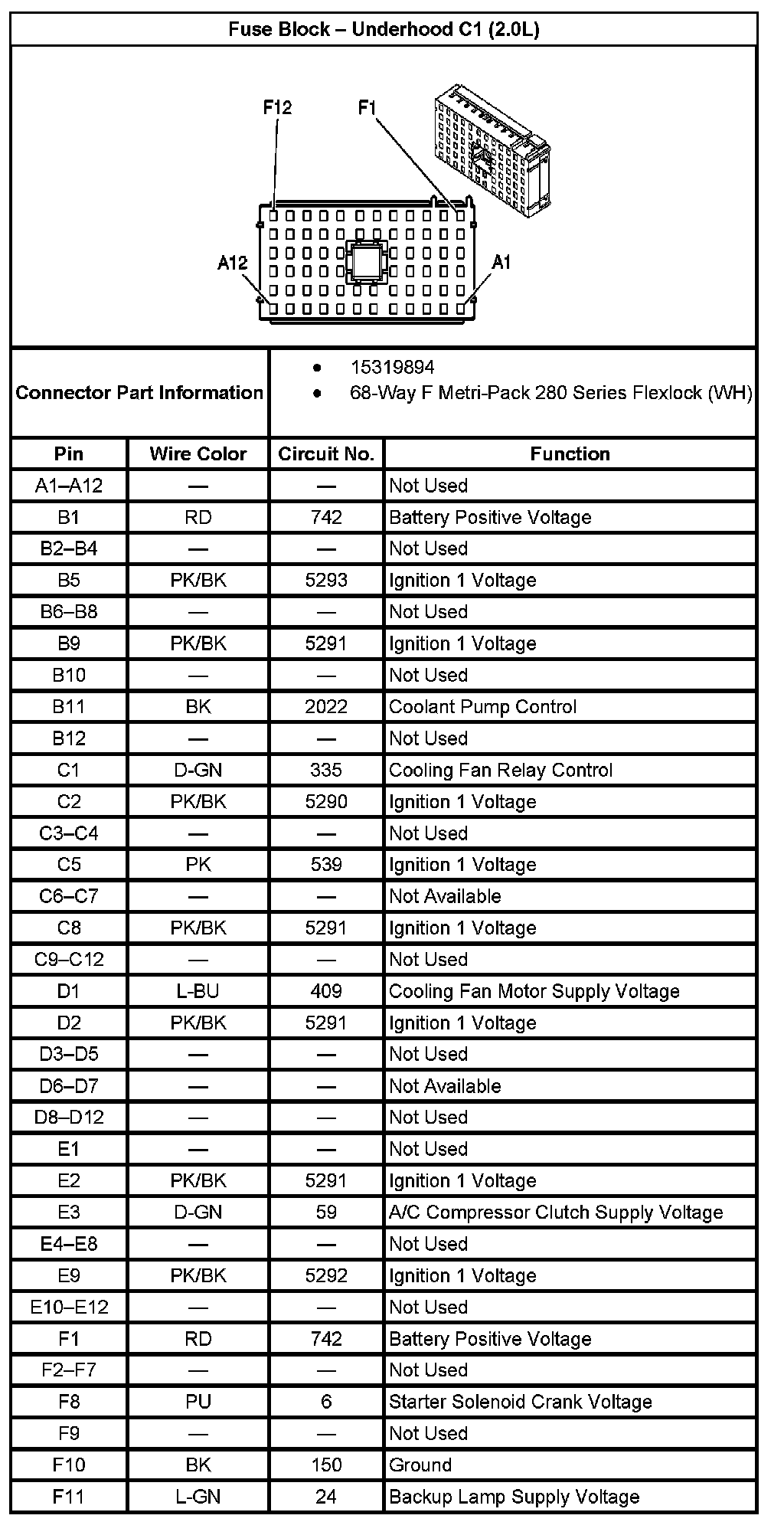

Fuse Block - Underhood C1 (Part 1):



Fuse Block - Underhood C1 (Part 2):

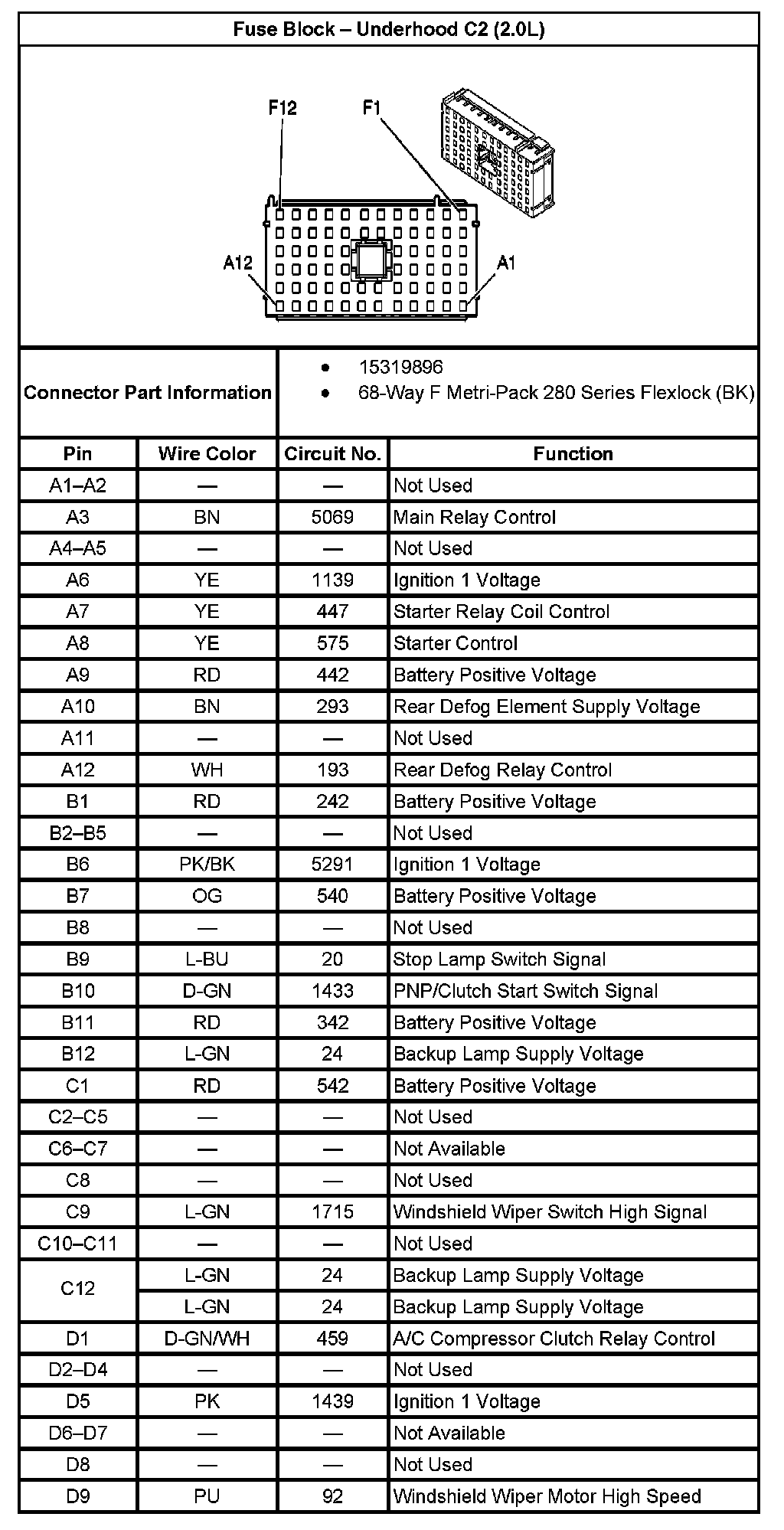

Fuse Block - Underhood C2 (Part 1):

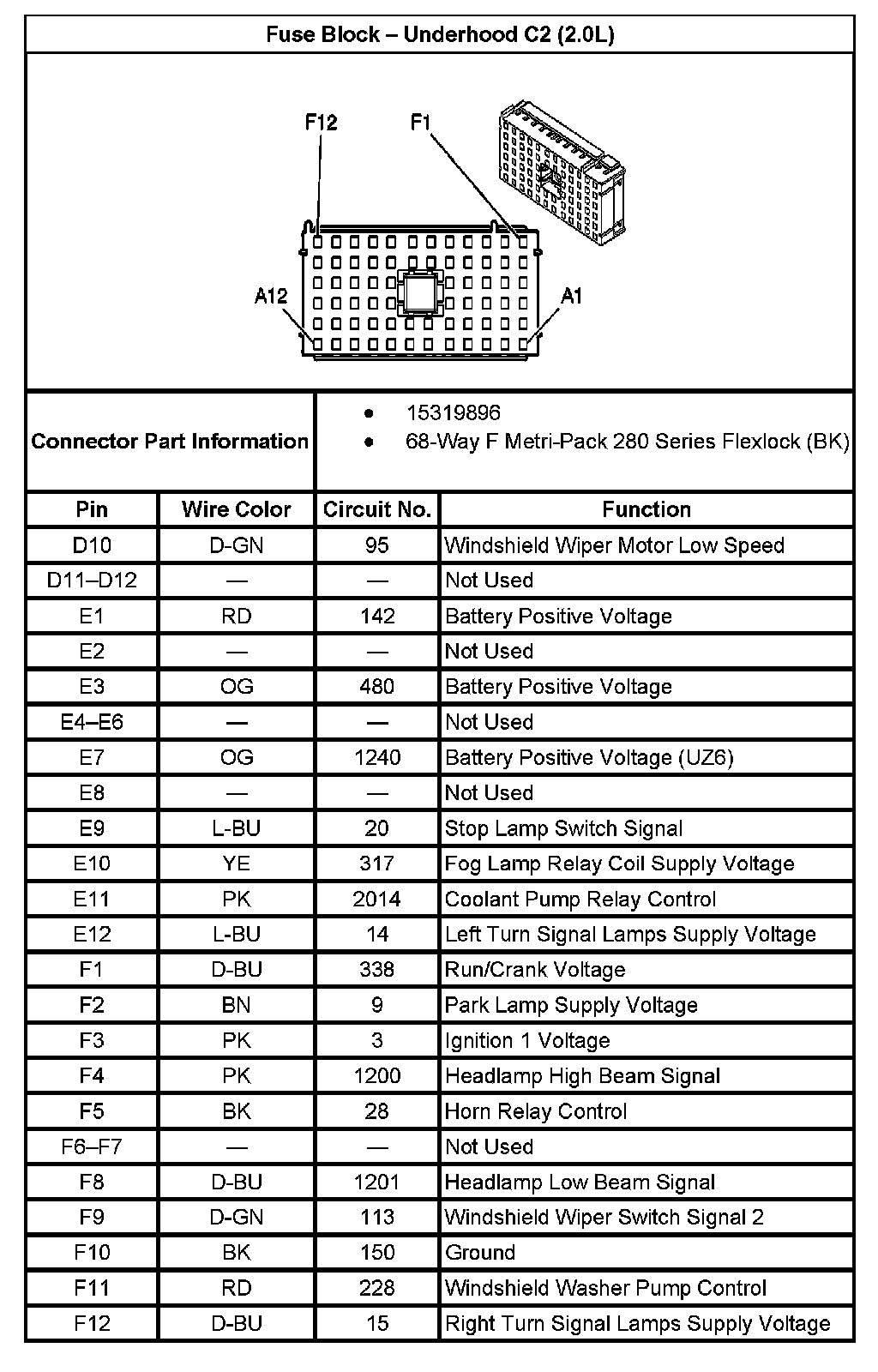

Fuse Block - Underhood C2 (Part 2):

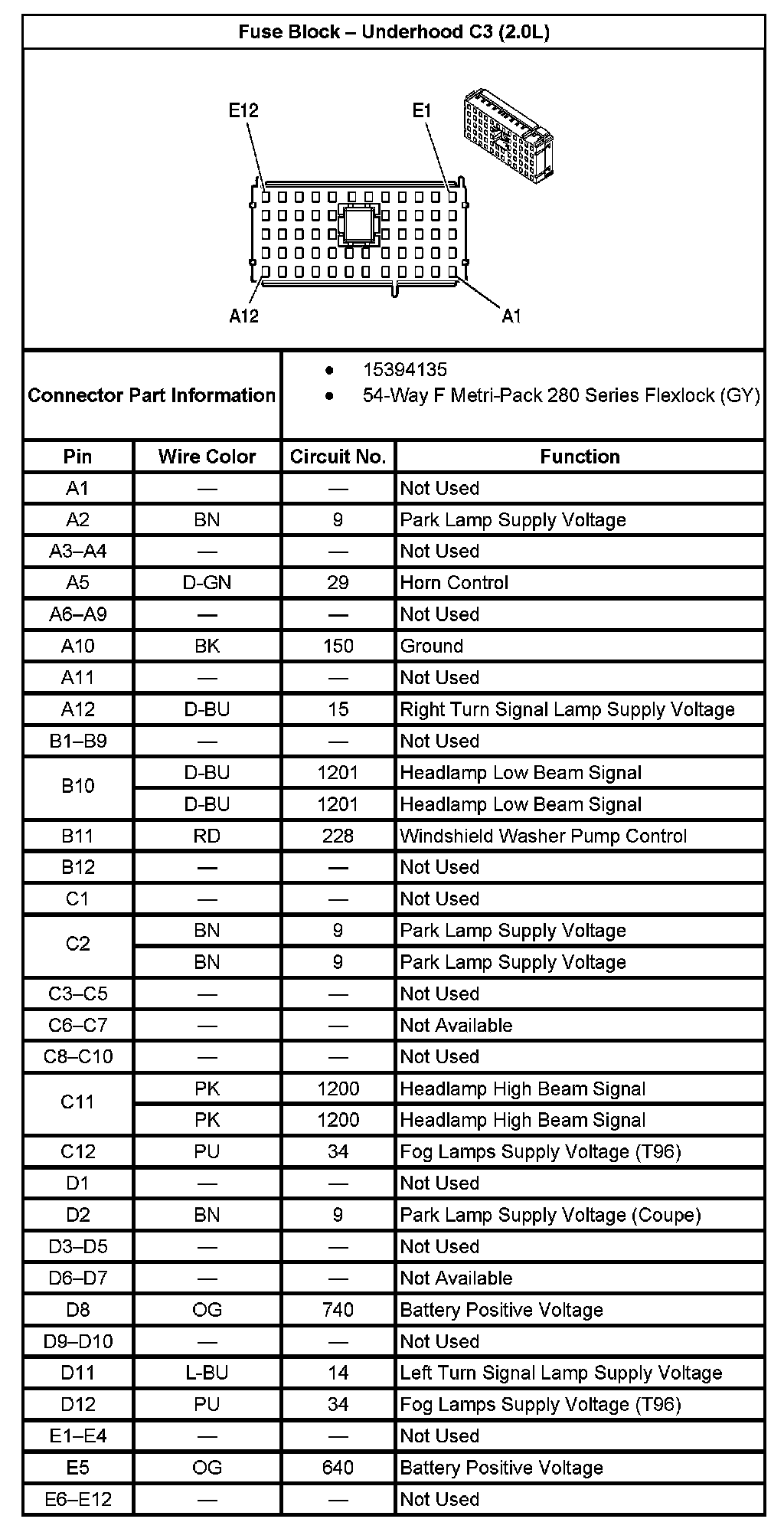

Fuse Block - Underhood C3:
