Ion Red Line
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Door System, Mirror System & Window System
>>
Schematic and Routing Diagrams
>>
Door Lock/Indicator Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Door Lock/Indicator Schematics

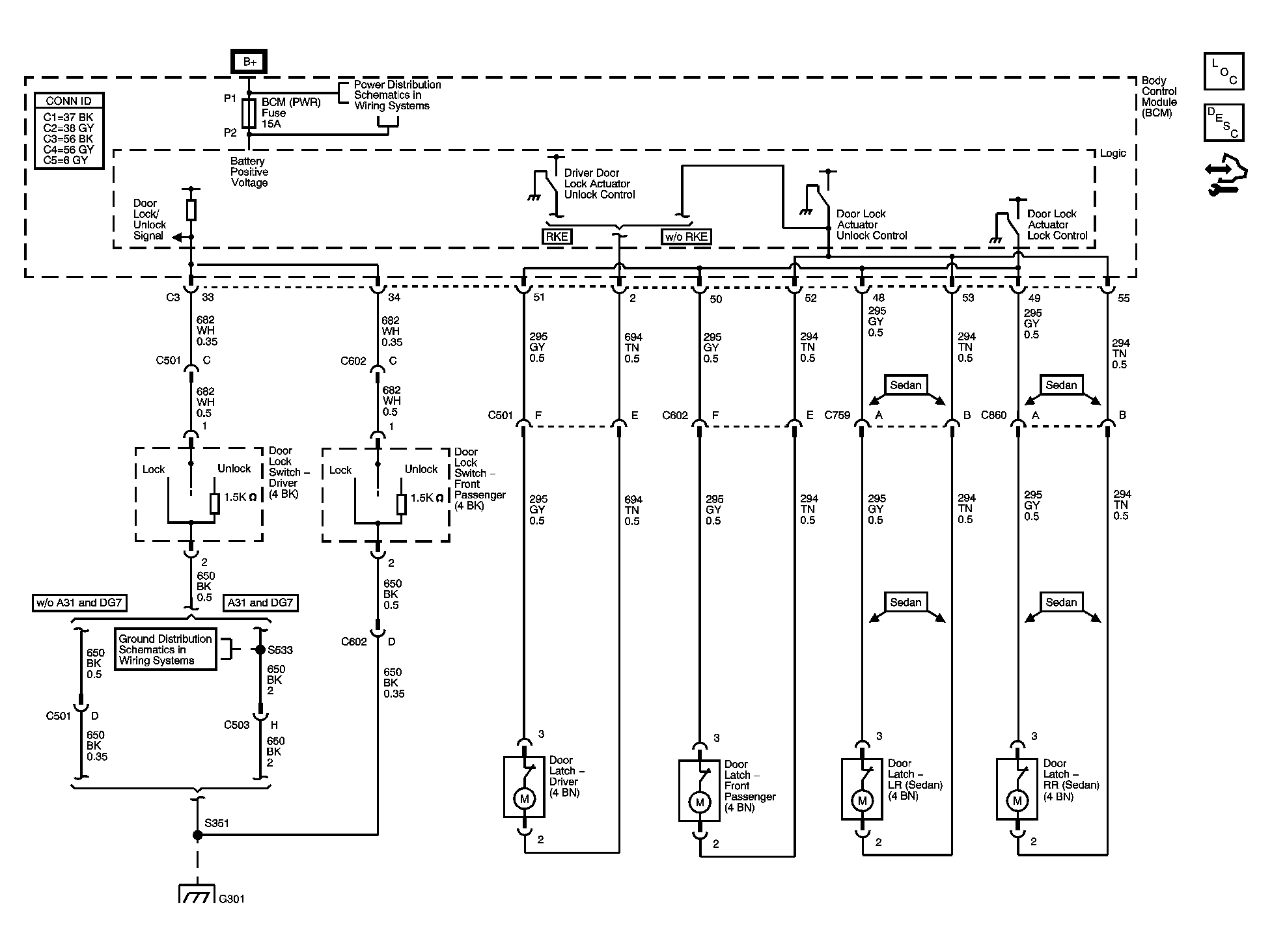

Fig 1: Door Lock/Indicator Schematics
Courtesy of GENERAL MOTORS CORP.
