Power Window Schematics

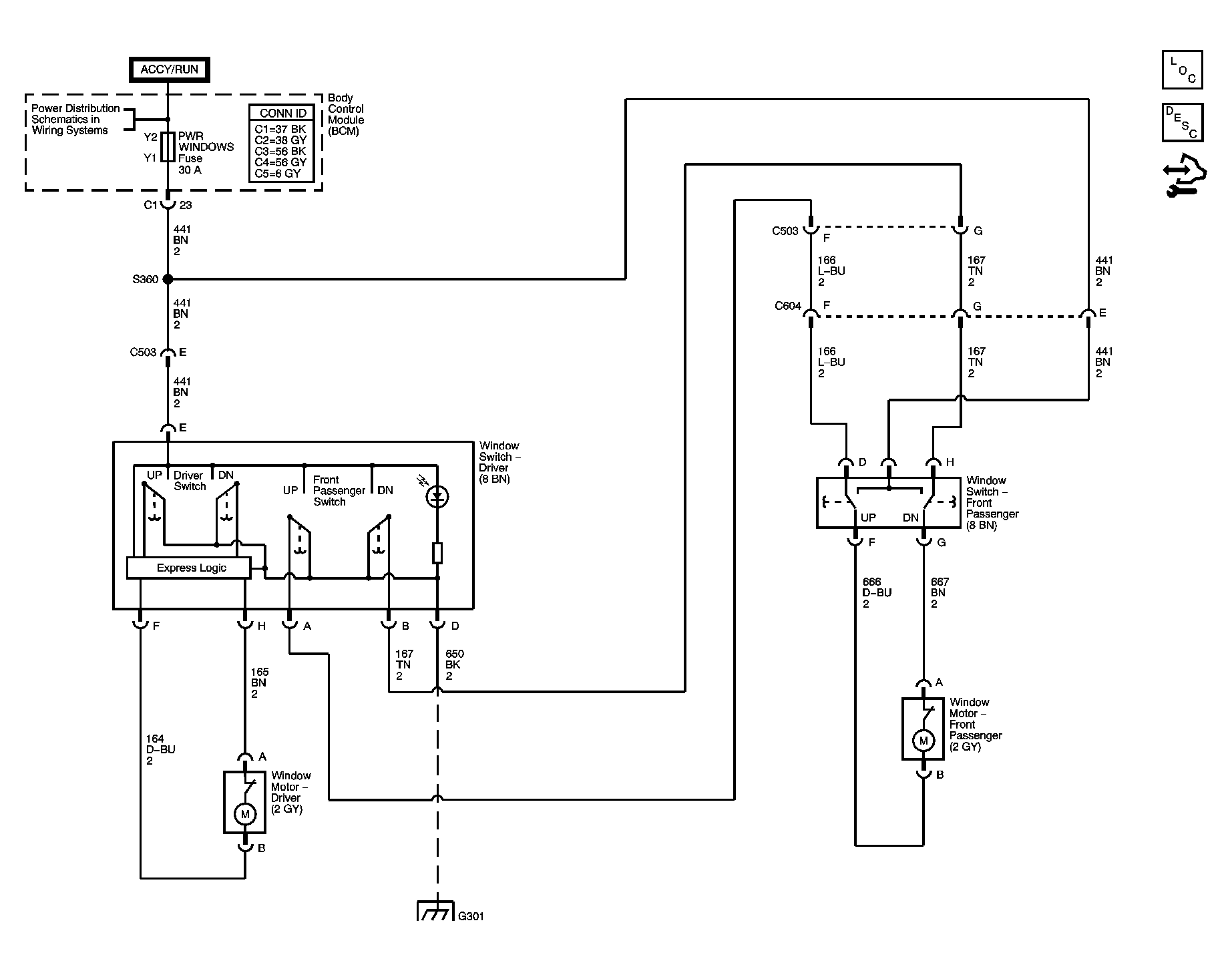

Fig 1: Coupe
Courtesy of GENERAL MOTORS CORP.

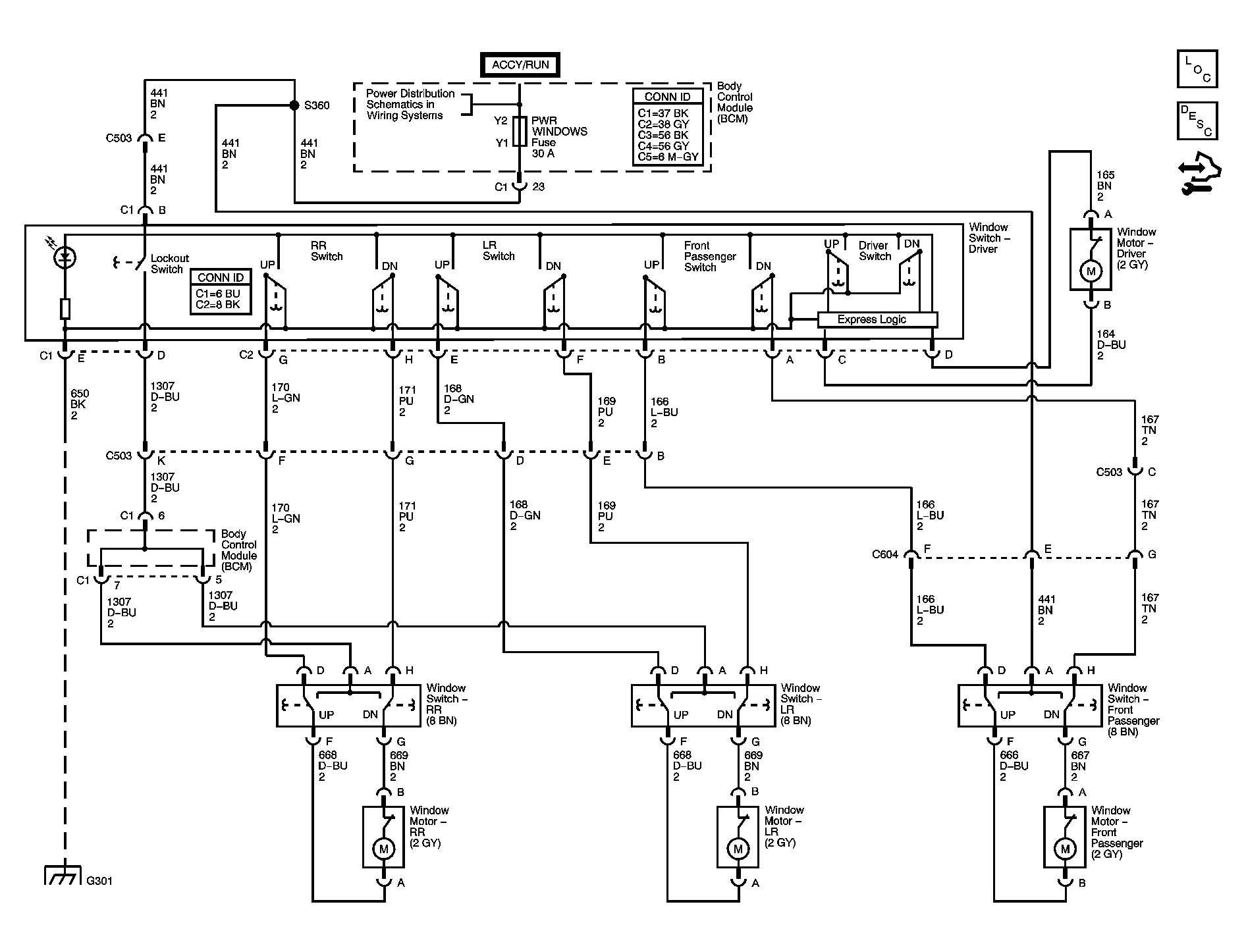

Fig 2: Sedan
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
